Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSF 600 Bandit SUZUKI GSF600 T Bandit SUZUKI (VIN: JS1GN77A, GN77A, GN77B) 27 - HEADLAMP (GSF600S/US)

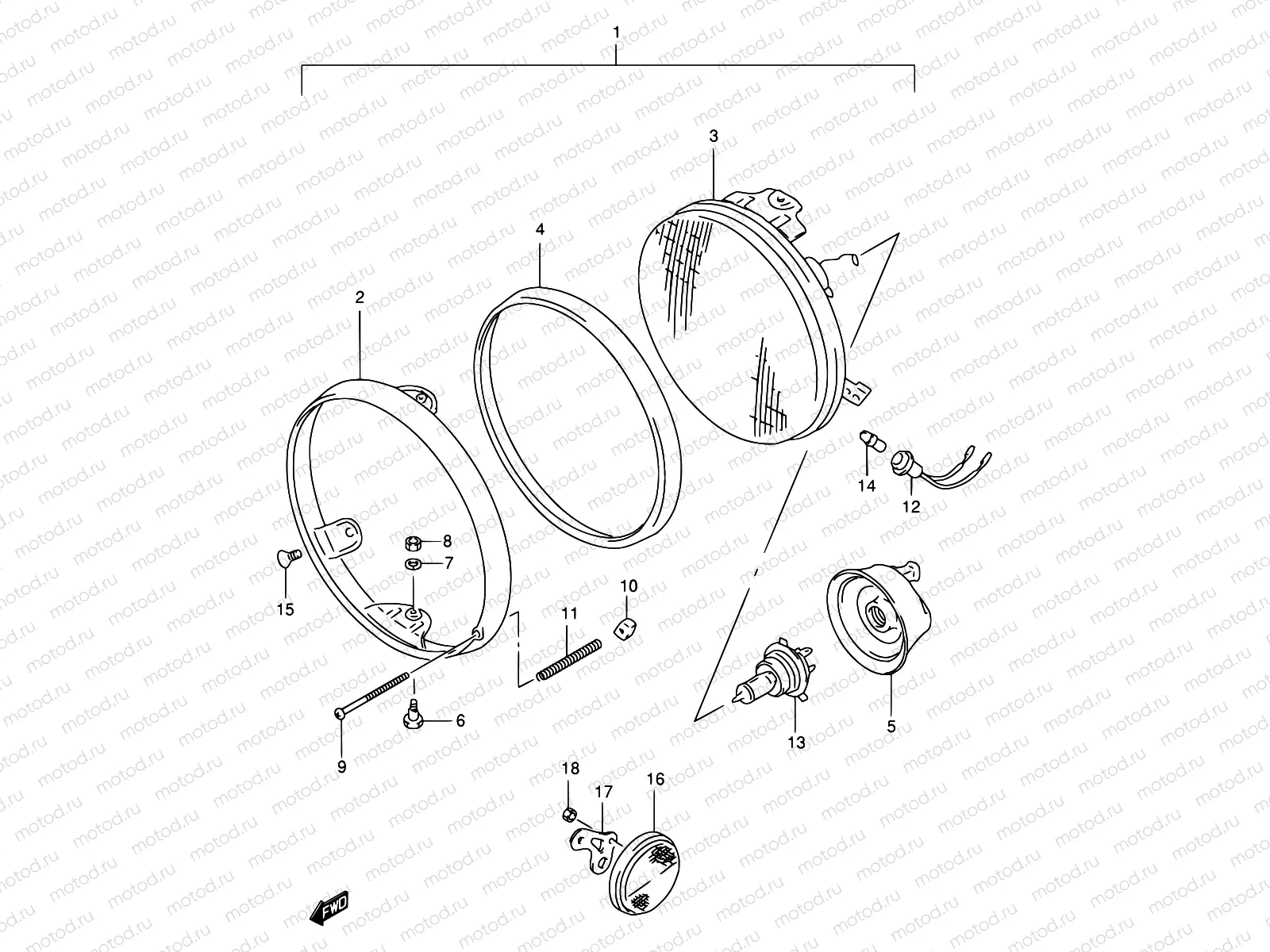

27 - HEADLAMP (GSF600S/US)

27 - HEADLAMP (GSF600S/US)

Например: 35100-26D20-999

1

35100-26D20-999

HEADLAMP ASSY

18 025 ₽/шт

1

35100-26D20-999

HEADLAMP ASSY

18 025 ₽/шт

2

35111-01D20

RIM

8 585 ₽/шт

3

35121-10D53

LAMP UNIT

13 959 ₽/шт

3

35121-10D53

LAMP UNIT

13 959 ₽/шт

4

35127-10D20

RING

1 771 ₽/шт

5

35173-20A01

COVER,SOCKET

1 189 ₽/шт

6

35181-15611

SCREW,HEADLAMP RING

231 ₽/шт

7

08321-0105A

Пластина замка

81 ₽/шт

8

08310-0005B

Гайка

1 370 ₽/шт

9

35151-45900

Винт

301 ₽/шт

10

35152-15611

Гайка

231 ₽/шт

11

35154-31900

Пружина

364 ₽/шт

12

36118-26D50

SOCKET,PARKING LAMP

1 372 ₽/шт

13

K9206-91002

Bulb,12v 60/55w

14

09471-12063-LCP

Bulb 6v/1,7w

15

02122-05127

Болт

1 090 ₽/шт

16

35950-14A00

REFLECTOR,REFLEX FR

2 295 ₽/шт

17

35956-21E00

Bracket

18

08310-0005B

Гайка

1 370 ₽/шт
