Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSF 600 Bandit SUZUKI GSF600 T Bandit SUZUKI (VIN: JS1GN77A, GN77A, GN77B) 20 - GEAR SHIFTING

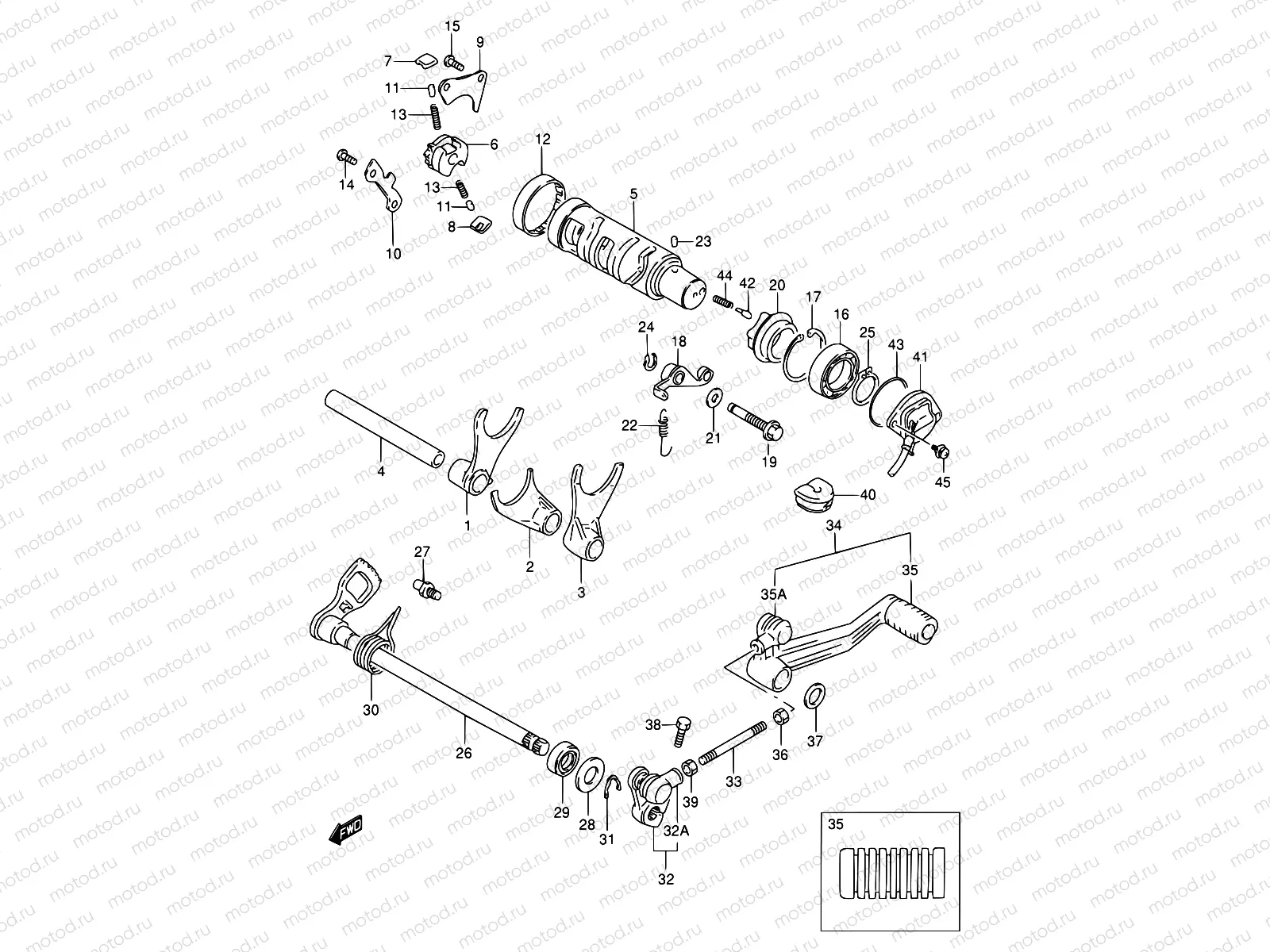

20 - GEAR SHIFTING

20 - GEAR SHIFTING
Например: 25211-27A12
1
25211-27A12
FORK,GEAR SHIFT NO.1
7 820 ₽/шт
2
25221-27A01
FORK,GEAR SHIFT NO.2
6 178 ₽/шт
3
25231-27A00
FORK,GEAR SHIFT NO.3
6 178 ₽/шт
4
25411-27A00
SHAFT,GEAR SHIFT FORK,L:1
1 607 ₽/шт
5
09209-05011
ШТИФТ
178 ₽/шт
5
25310-27A03
Кулак
17 321 ₽/шт
5
37730-26E21
BASE ASSY,GEAR SHIFT TERMINAL
9 619 ₽/шт
5
09440-04010
ПРУЖИНА
113 ₽/шт
5
07120-0516B
БОЛТ
1 520 ₽/шт
6
25322-31310
GEAR,GEAR SHIFT CAM DRIVEN
1 696 ₽/шт
7
25323-34201
PAWL,GEAR SHIFT NO.1
662 ₽/шт
8
25324-34201
PAWL,GEAR SHIFT NO.2
662 ₽/шт
9
25331-31310
LIFTER,GEAR SHIFT POLE
594 ₽/шт
10
25341-27A00
GUIDE,GEAR SHIFT CAM
735 ₽/шт
11
09261-05003
ПАЛЕЦ КПП
129 ₽/шт
12
09263-43001
BEARING(43X49X12)
2 678 ₽/шт
13
09440-04003
ПРУЖИНА
113 ₽/шт
14
02122-0612B
Болт
82 ₽/шт
15
02122-0612B
Болт
82 ₽/шт
16
08113-69050
ПОДШИПНИК ВЫЖИМНОЙ
2 717 ₽/шт
17
08331-41429
CIRCLIP
258 ₽/шт
18
25350-27A00
STOPPER,GEAR SHIFT CAM
1 118 ₽/шт
19
25353-27A00
SHAFT,GEAR SHIFT CAM STOPPER
422 ₽/шт
20
25381-38400
PLATE,STOPPER
1 932 ₽/шт
21
09168-10002
Прокладка
178 ₽/шт
22
09443-09033
Пружина
275 ₽/шт
23
04221-04069
ШТИФТ
1 060 ₽/шт
24
08331-31089
CIRCLIP
81 ₽/шт
25
08331-31259
CIRCLIP
146 ₽/шт
26
25510-19C01
SHAFT,GEAR SHIFT
7 194 ₽/шт
27
25671-01011
STOPPER,GEAR SHIFT ARM
204 ₽/шт
28
09160-12089
Шайба
113 ₽/шт
29
09285-12006
САЛЬНИК ТРАНСМИССИИ, РЕЗИНА
275 ₽/шт
30
09444-26017
Пружина
3 050 ₽/шт
31
08331-3112A
Кольцо стопорное
97 ₽/шт
32
25520-22A01
rm,gear Shift Link
3 539 ₽/шт
32
25526-47001
Cover,dust
258 ₽/шт
33
25525-26E01
ROD,GEAR SHIFT LINK
997 ₽/шт
34
25600-10D10
Gear change pedal
35
25652-20C00
ШТИФТ КУЛИСЫ КПП
307 ₽/шт
35
25526-47001
Cover,dust
258 ₽/шт
36
09140-06011
Гайка
820 ₽/шт
37
09160-18022
Шайба
145 ₽/шт
38
01500-0620A
Болт
81 ₽/шт
39
08310-00067
Гайка
81 ₽/шт
40
33885-27A01
GROMMET,LEADWIRE
4 603 ₽/шт
41
37720-48B00
TERMINAL BASE ASSY,NEUTRAL
9 605 ₽/шт
42
09209-05011
ШТИФТ
178 ₽/шт
43
09280-35006
O RING(D:2.4,ID:35.5)
221 ₽/шт
44
09440-04010
ПРУЖИНА
113 ₽/шт
45
02112-7516A
Болт
102 ₽/шт
