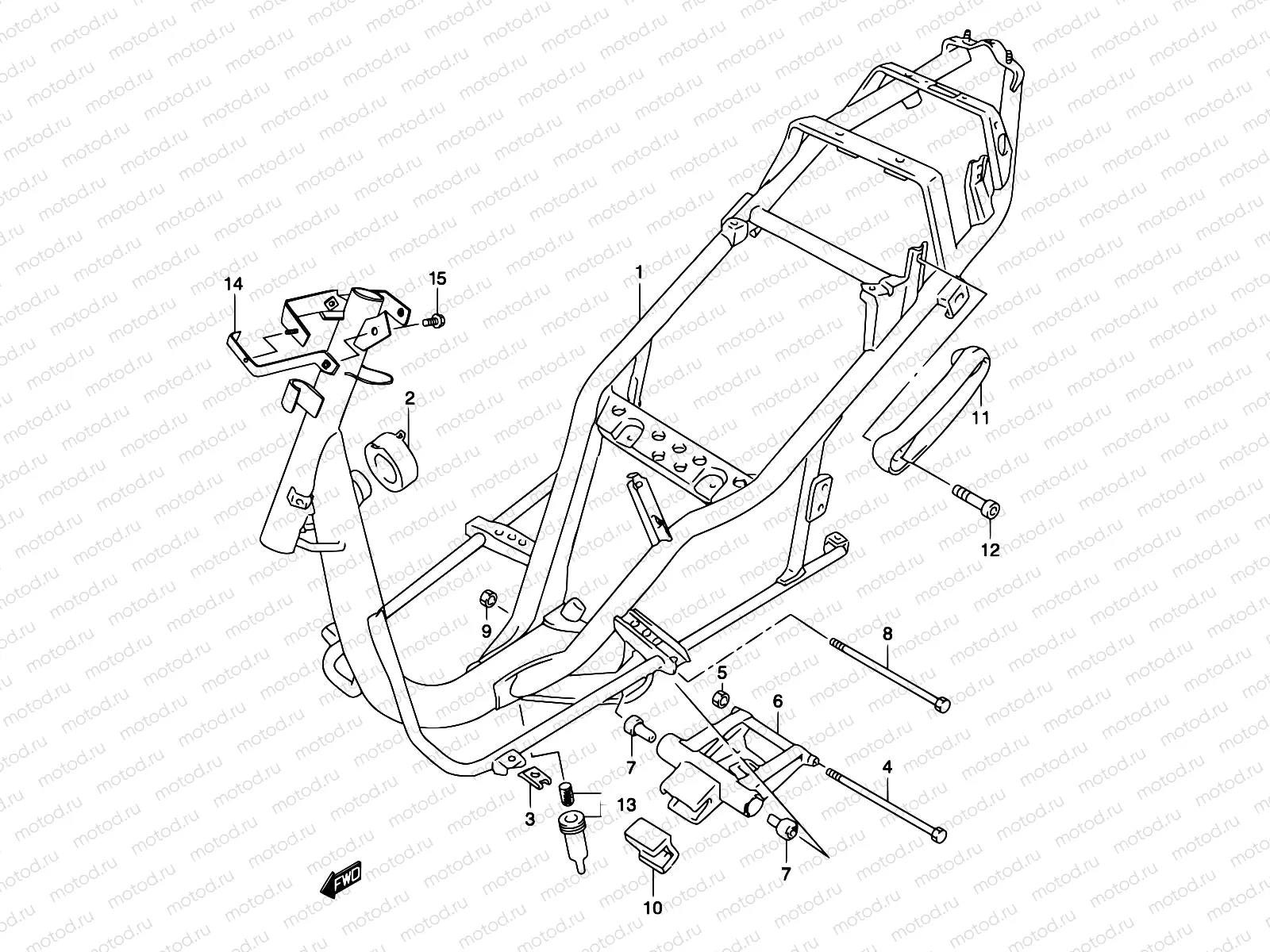

25A - FRAME (MODEL K3/K4)

25A - FRAME (MODEL K3/K4)
Например: 41100-02E51-EE3
1
41100-02E51-EE3
FRAME
1
41100-02E90-EE3
Frame
2
41477-35E00
Damper
3
09689-E0025
NUT (M6)
4
D1507-100G8
Vis (M10x190)
5
D8310-09103
Nut
6
41180-02E00-EE3
Bracket,crankca
7
09319-C1006-8J000
Silentblock
8
D1507-100G8
Vis (M10x190)
9
D8319-69103
Nut
10
41185-29C10
USHION,SWING STOP
1 806 ₽/шт
11
43980-02E00
Grip, stand
12
07130-0825B
Болт
129 ₽/шт
13
13092-09E00
Tube,drain set
14
41126-35EA0-EE3
Plate ay50w/k3-
15
01550-0816B
Болт крепёжный
97 ₽/шт
