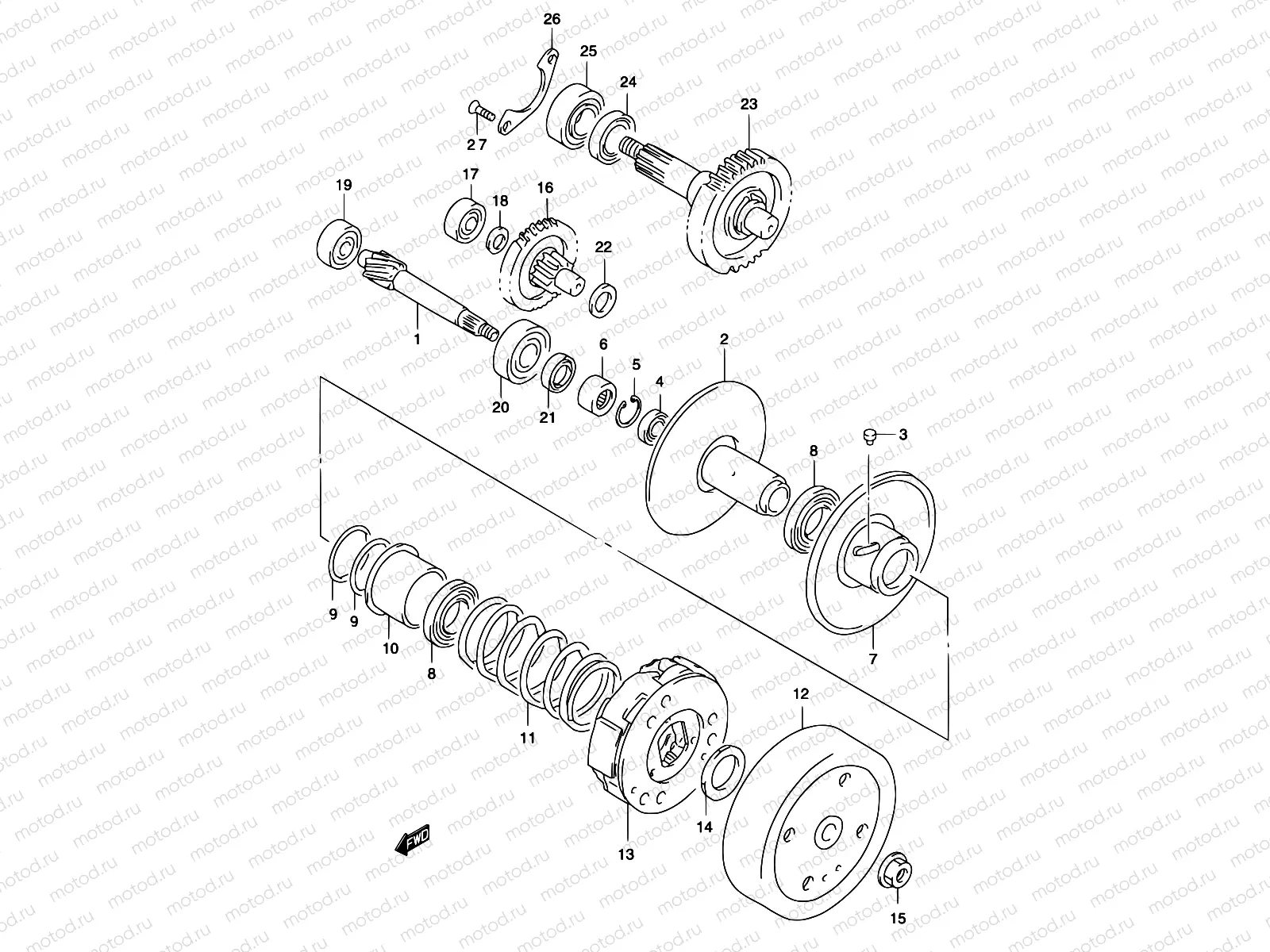

13C - TRANSMISSION (2) (MODEL AY50 K3/K4)

13C - TRANSMISSION (2) (MODEL AY50 K3/K4)
Например: 24131-36C20
1
24131-36C20
Вал ведущий
8 289 ₽/шт
2
21210-02E10
Poulie de courroie
3
21248-02E00
Pin
4
09262-12018
Подшипник
808 ₽/шт
5
08331-41249
CIRCLIP
162 ₽/шт
6
09263-02E00
Roulement
7
21240-02E10
MOVABLE DRIVEN FACE
8
09284-34002
SEAL,OIL(34X39X3)
1 341 ₽/шт
9
09280-02E10
O-Ring (D:4.6ID:41.9)
10
21471-02E00
Sheet moveble d
11
09440-02E00
Spring
12
21220-02E00
Housing com clu
13
21501-02E30
SHOE CLUTCH ASSY
14
09140-02E10
Nut
15
08316-1010B
Гайка
85 ₽/шт
16
24150-43E20
Shaft,idle
17
08113-6201B
earing
1 024 ₽/шт
18
09181-12167
Шайба
194 ₽/шт
19
08113-6201B
earing
1 024 ₽/шт
20
08113-63030
Подшипник B1 17X47X14
1 156 ₽/шт
21
09283-17018
SEAL,OIL(17X27X5)
571 ₽/шт
22
08211-16251
WASHER
1 250 ₽/шт
23
24140-35E00
Shaft, rear axl
24
64841-28E01
Seal(29X42X6)
697 ₽/шт
25
09262-22027
Bearing,22x50x1
26
24751-07900
RETAINER,DRIVE SHAHFT BEARING
227 ₽/шт
27
02112-0616A
Болт
81 ₽/шт
