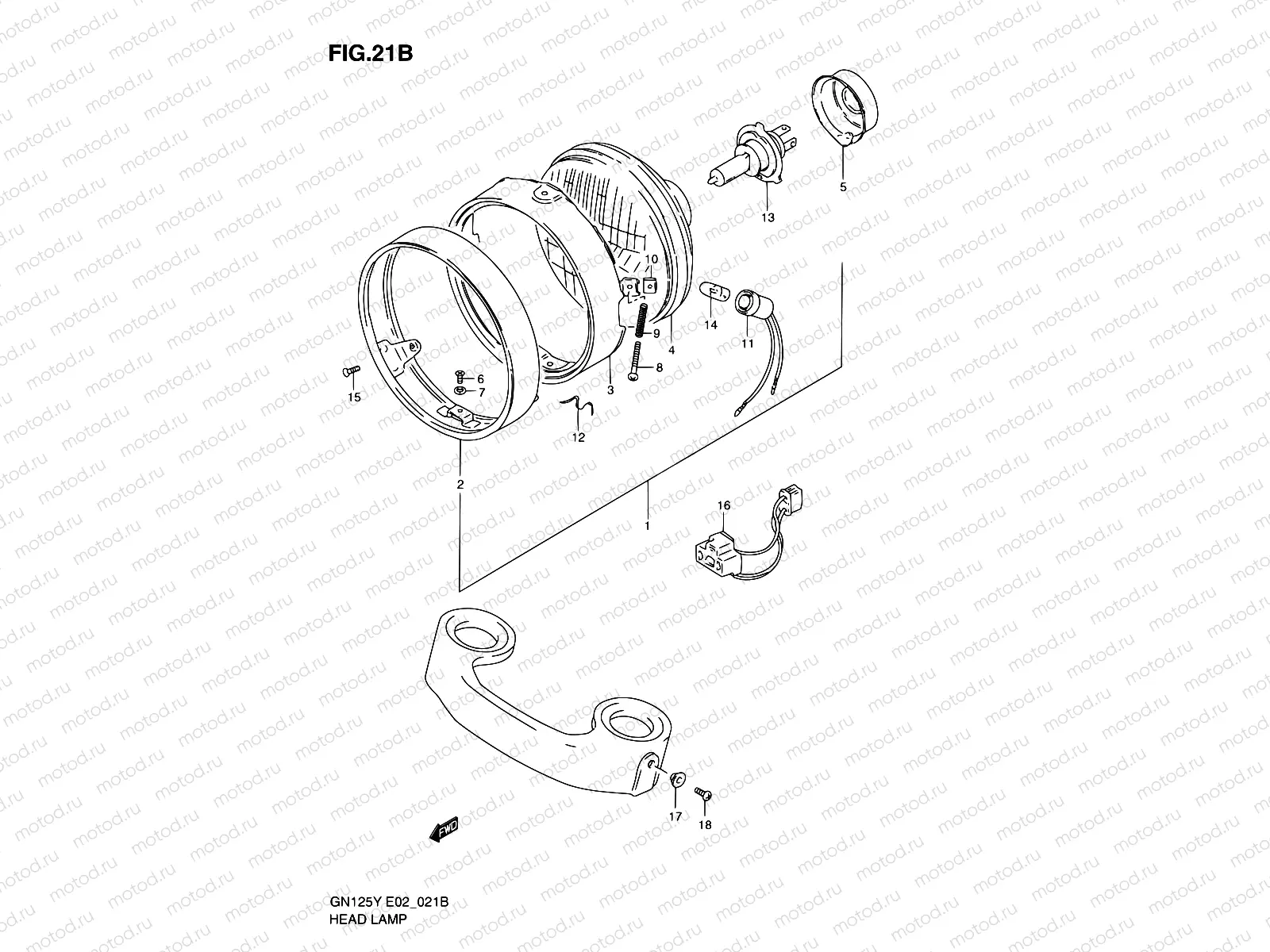

21B - HEADLAMP (MODEL Y/K1 E04,E18,E21,E22)

21B - HEADLAMP (MODEL Y/K1 E04,E18,E21,E22)

Например: 35100-44290-999

1

35100-44290-999

Headlamp assy

2

35111-44250

Rim,head lamp

3

35127-29610

.ring

4

35121-06B50

Unit lamp rh

5

35173-20A01

COVER,SOCKET

1 189 ₽/шт

6

35136-29610

SCREW,HEAD LAMP UNIT

7

08321-0105A

Пластина замка

81 ₽/шт

8

35151-31610

Vis

9

35154-33630

Spring

10

35152-15611

Гайка

231 ₽/шт

11

36118-04A00

SOCKET

829 ₽/шт

12

35128-46720

Spring

13

K9206-91002

Bulb,12v 60/55w

14

09471-12063-LCP

Bulb 6v/1,7w

15

09126-05003

Болт

179 ₽/шт

16

36853-30500

LEAD WIRE,HEADLAMP

938 ₽/шт

17

09169-05008

Шайба

162 ₽/шт

18

02142-05087

Винт 5X8 CROSS

85 ₽/шт
