Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GN 125 SUZUKI GN125E Y SUZUKI 10 - AIR CLEANER

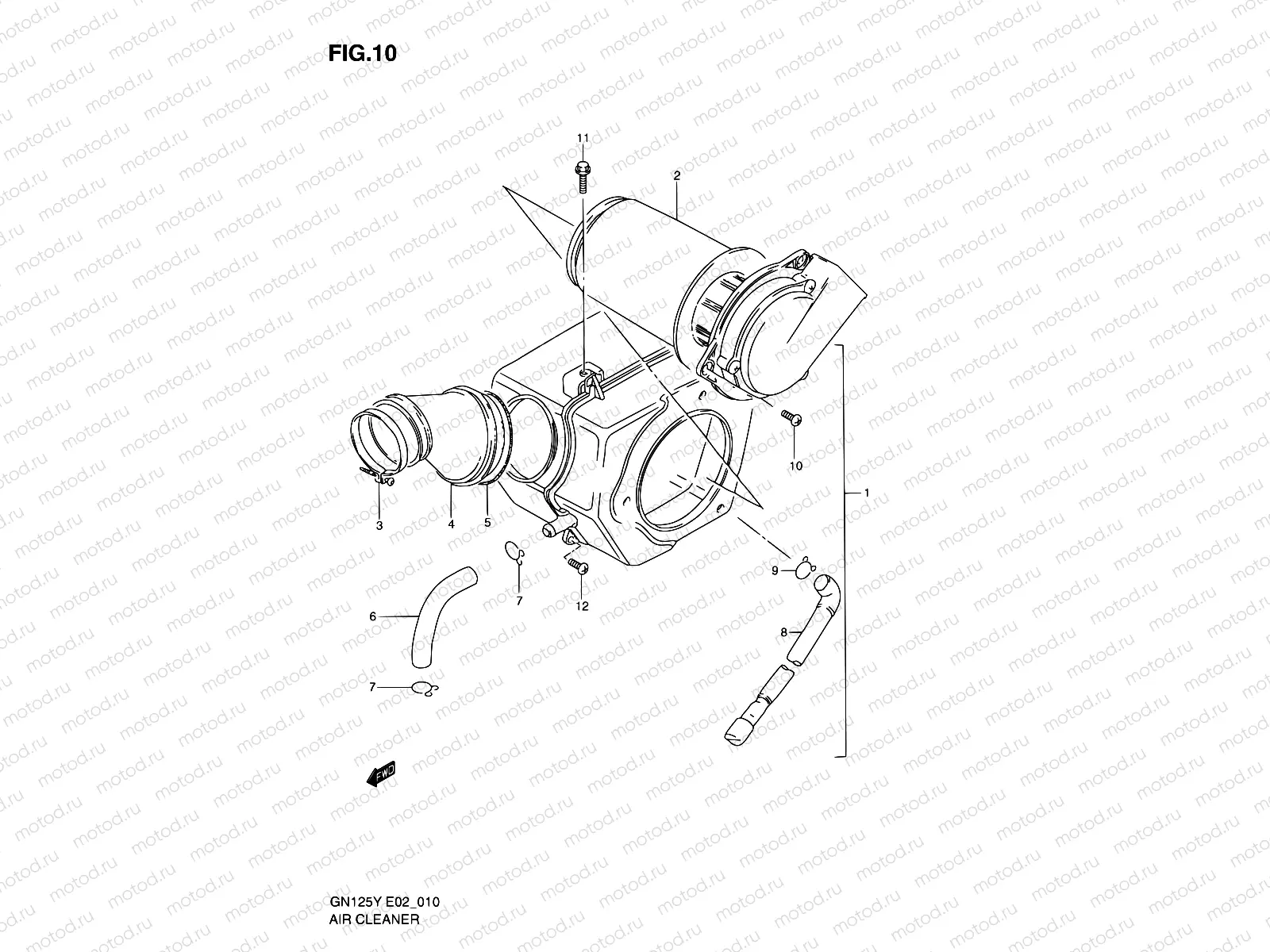

10 - AIR CLEANER

10 - AIR CLEANER

Например: 13700-05302

1

13700-05302

Воздухоочиститель

19 865 ₽/шт

1

13700-05380

Cleaner assy

2

13780-38301

Фильтр

3 679 ₽/шт

3

09402-56901

Хомут

255 ₽/шт

4

13881-05300

Трубка выхода

1 521 ₽/шт

5

13826-38300

Хомут пружинный

272 ₽/шт

6

13853-05300

TUBE,BREATHER

618 ₽/шт

6

13850-05380

Tube,breather

7

09401-14401

CLIP

1 250 ₽/шт

8

13870-21308

.tube, drain

9

09401-13409

ХОМУТ МАЛЫЙ

1 250 ₽/шт

10

02142-05127

Болт

85 ₽/шт

11

01580-0616A

БОЛТ

102 ₽/шт

12

01580-0616A

БОЛТ

102 ₽/шт
