Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI EN 125 SUZUKI EN125-2A K5 (P37) SUZUKI 21 - ELECTRICAL

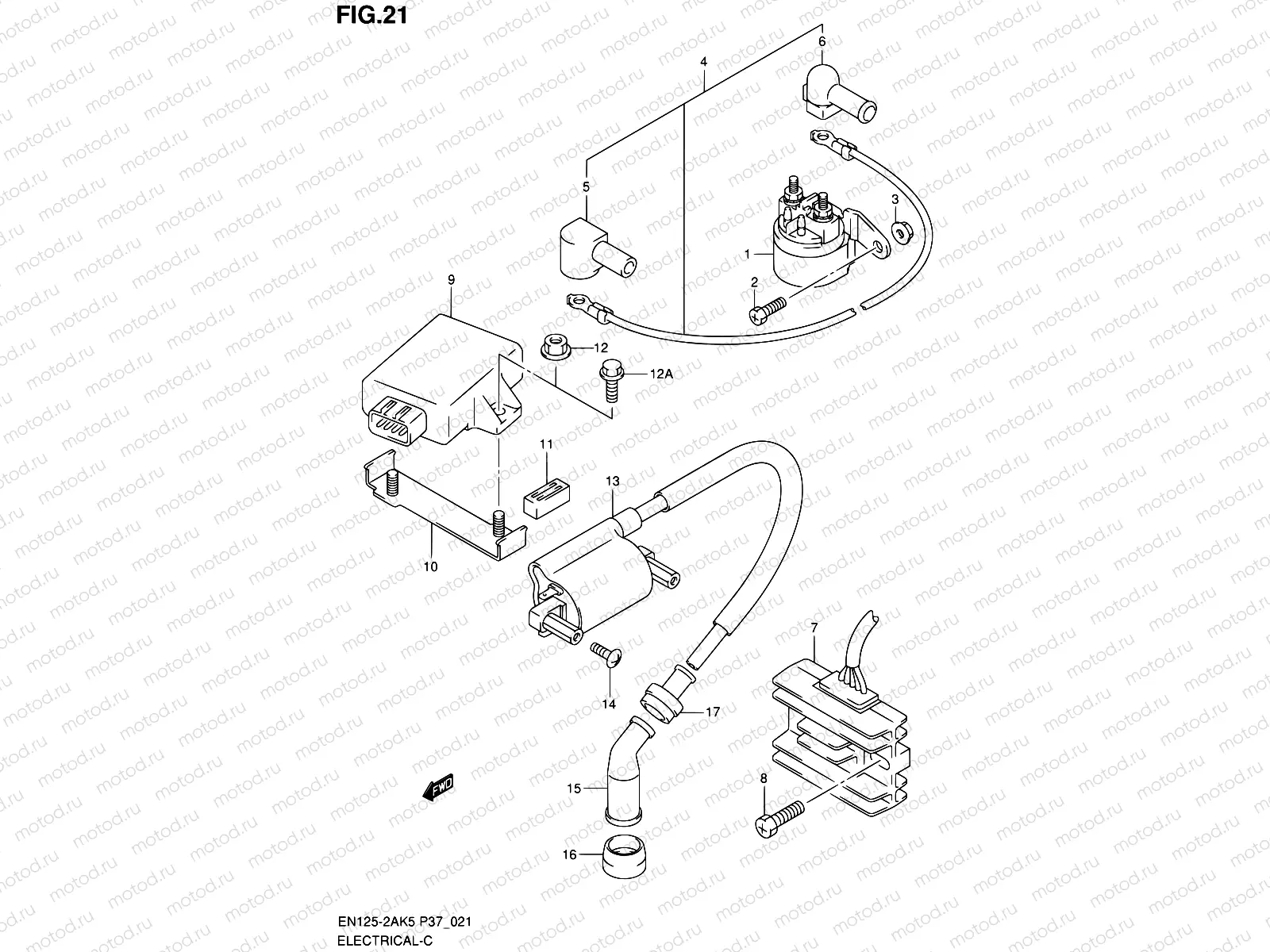

21 - ELECTRICAL

21 - ELECTRICAL

Например: 31800-49110-000

1

31800-49110-000

Реле стартера

4 927 ₽/шт

2

09128-06004-000

SCREW(6X10)

740 ₽/шт

3

08361-3506A

ГАЙКА

82 ₽/шт

4

33810-05310-000

WIRE,STARTER MOTOR LEAD

1 947 ₽/шт

5

31861-31500-000

Крышка

262 ₽/шт

6

31861-06C00

AP,STARTER MOTOR TERMINAL

227 ₽/шт

7

32800-22D20-000

Rectifier, regulator

8

02112-06207

ШАЙБА

85 ₽/шт

9

32900-053A0-000

Блок управления

42 262 ₽/шт

10

32931-053B0-000

racket, igniter

11

32980-05300-000

CUSHION,IGNITOR

880 ₽/шт

12

08316-1006B

Гайка

81 ₽/шт

12

01550-0616B

БОЛТ

81 ₽/шт

13

33410-05360-000

Bobine d'allumage

14

02142-0510B

SCREW

85 ₽/шт

15

33510-43010

Свечной колпачок

2 040 ₽/шт

16

33541-38210-000

Заглушка

537 ₽/шт

17

33542-38B00

Уплотнение

162 ₽/шт
