Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100 D SUZUKI 2 - CYLINDER HEAD COVER (MODEL D)

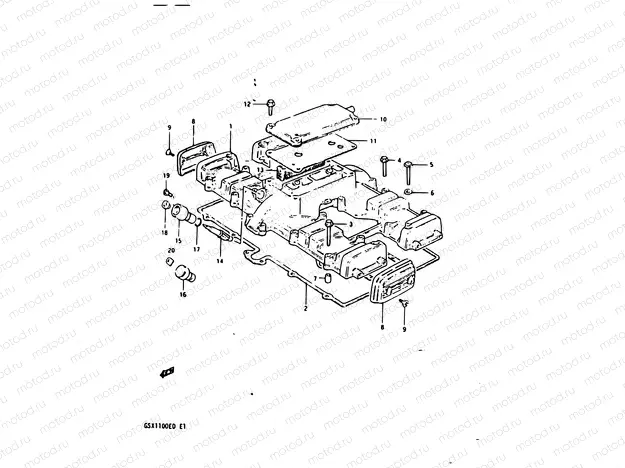

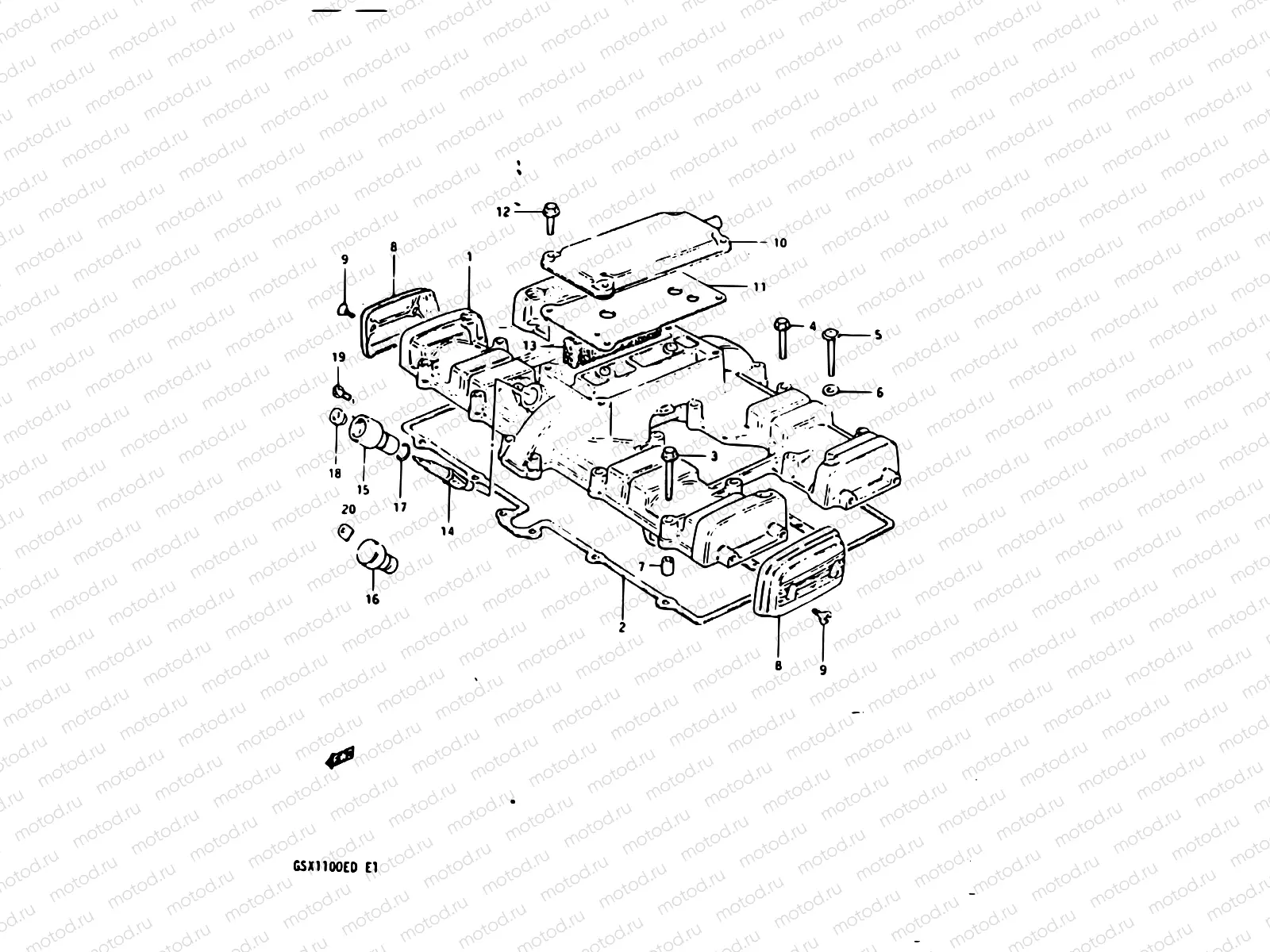

2 - CYLINDER HEAD COVER (MODEL D)

2 - CYLINDER HEAD COVER (MODEL D)
Например: 11171-45440
1
11171-45440
Cover,cylinder
2
11173-49224-H17
Прокладка под клапанную крышку
10 285 ₽/шт
3
01550-0640A
Болт
1 410 ₽/шт
4
01550-0635B
Болт
112 ₽/шт
5
02112-0640A
Болт
85 ₽/шт
6
09168-06023
ПРОКЛАДКА
162 ₽/шт
7
09206-08001
Стопор
170 ₽/шт
8
11174-49221
CAP,CYLINDER HEAD COVER
1 662 ₽/шт
9
09127-05015
SCREW(5X12)
1 130 ₽/шт
10
11176-45402
Cover,breather
11
11177-49210-H17
GASKET,BREATHER COVER(NA)
5 780 ₽/шт
12
01550-0620B
БОЛТ
81 ₽/шт
13
11186-49201
Separator,oil
14
26431-49201
Gear,tachometer
15
26441-49000
SLEEVE,TACHOMETER DRIVE GEAR
2 805 ₽/шт
16
26442-45000
PLUG,TACH GEAR SLEEVE HOLE
3 740 ₽/шт
17
26451-45000
BAND,DRIVEN GEAR SEAL
289 ₽/шт
18
09289-05002
Сальник
825 ₽/шт
19
09128-05101
SCREW(5X12)
102 ₽/шт
20
26449-33000
PLATE,TACH DRIVE GEAR SLEEVE
301 ₽/шт
