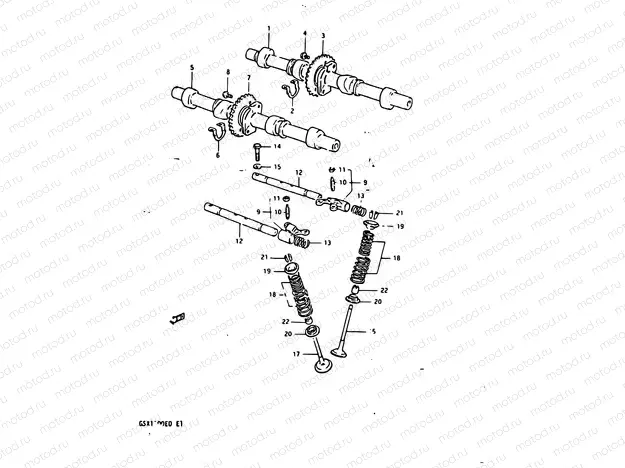

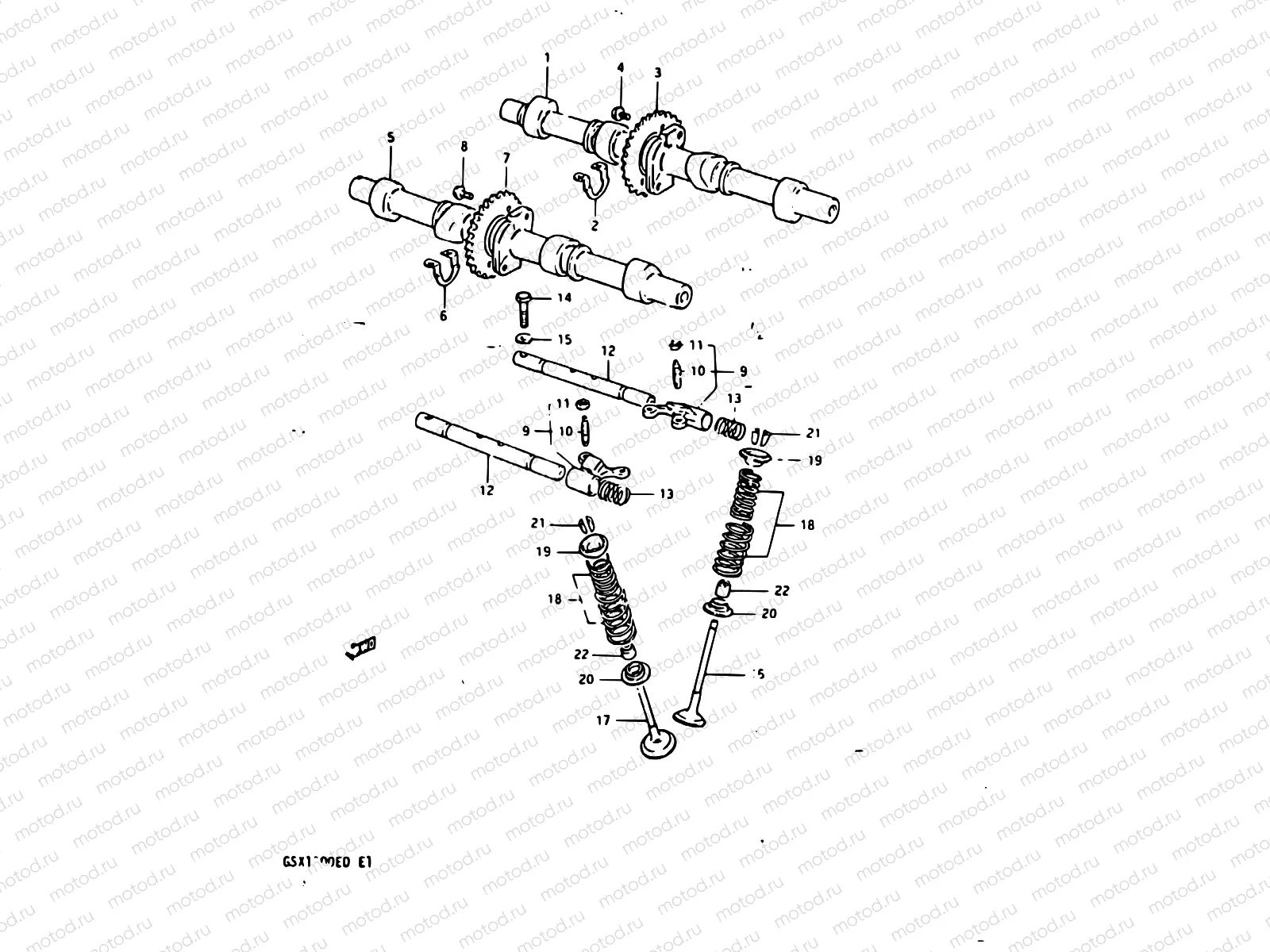

13 - CAM SHAFT - VALVE (MODEL D)

13 - CAM SHAFT - VALVE (MODEL D)
Например: 12700-45810
1
12700-45810
CAMSHAFT SET,INTAKE
20 528 ₽/шт
1
12700-49810
Cam shaft, intake
2
12712-45070
Shim,cam shaft
2
12712-45071
Shim,cam shaft
2
12712-45072
Shim,cam shaft
3
12741-47002
Sprocket
3
12741-45111
Sprocket, intake (nt:30)
4
09103-07001
BOLT(7X11)
1 410 ₽/шт
5
12700-49820
Cam shaft,exhau
5
12700-45820
Cam shaft,exhau
6
12712-45070
Shim,cam shaft
6
12712-45071
Shim,cam shaft
6
12712-45072
Shim,cam shaft
7
12751-47002
Sprocket, exhaust (nt:30)
8
09103-07001
BOLT(7X11)
1 410 ₽/шт
9
12840-49201
ARM,VALVE ROCKER
5 709 ₽/шт
10
12842-49201
Болт
308 ₽/шт
11
12843-27A00
Гайка
162 ₽/шт
12
12860-31300
SHAFT,VALVE ROCKER
2 717 ₽/шт
13
09440-13014
Пружина
1 250 ₽/шт
14
01500-06307
Болт
85 ₽/шт
15
08322-0106A
Шайба
81 ₽/шт
16
12911-49220
Клапан впуска
2 502 ₽/шт
17
12912-49220
Клапан, выпуска
4 301 ₽/шт
18
12920-04A00
SPRING SET,VALVE
1 150 ₽/шт
19
12931-49201
Шайба упорная
527 ₽/шт
20
12933-49201
Шайба упорная
272 ₽/шт
21
12932-49200
Сухарь
344 ₽/шт
22
09289-05015
МАСЛОСЪЕМНЫЙ КОЛПАЧОК
711 ₽/шт
