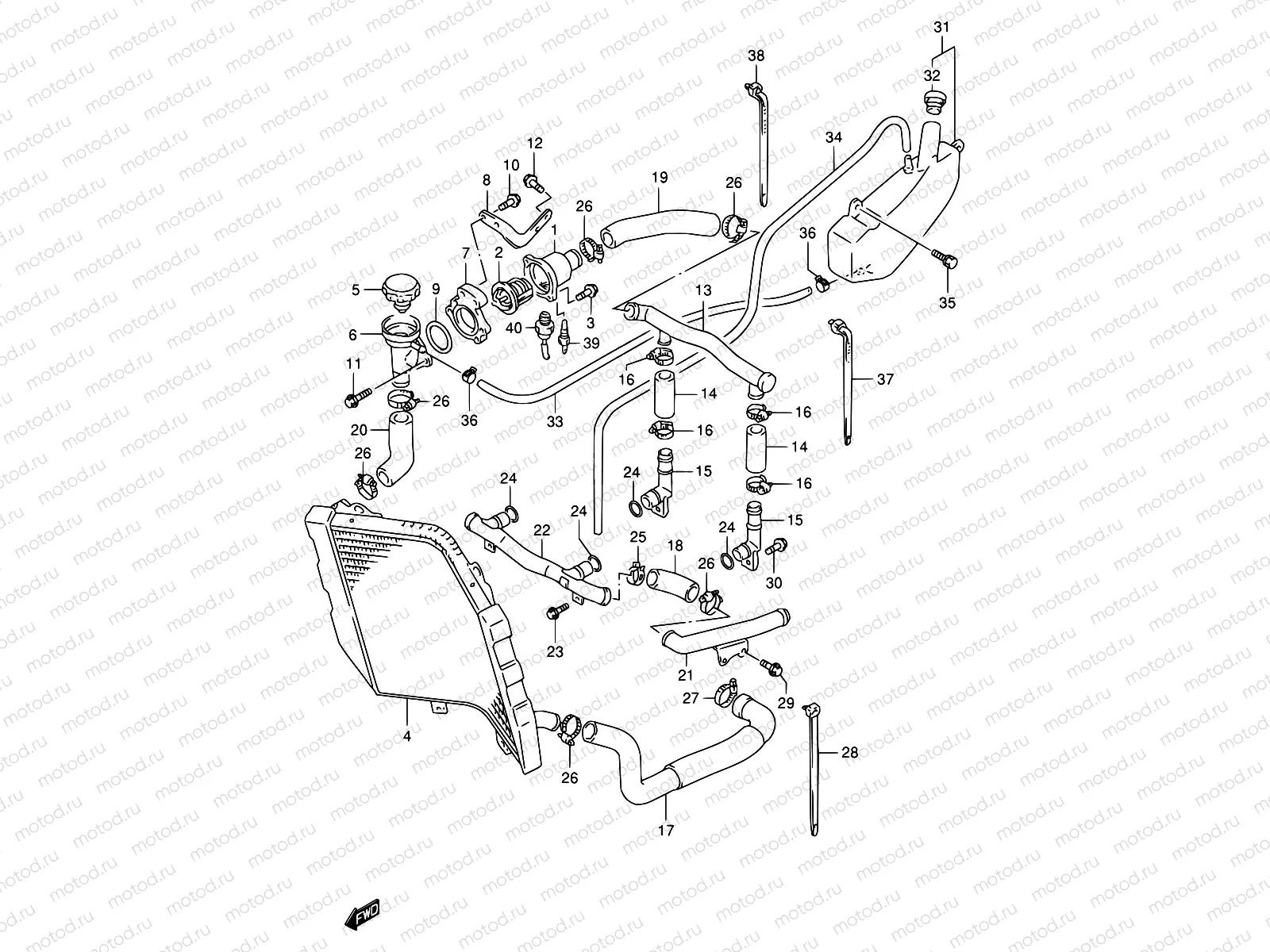

18A - RADIATOR HOSE (MODEL S/T/V/W)

18A - RADIATOR HOSE (MODEL S/T/V/W)

Например: 17662-46E10

1

17662-46E10

VERBINDINGSSTUK

2

17670-32C21

Thermostat

3

01550-0616B

БОЛТ

81 ₽/шт

4

17710-46E00

Radiateur - refroidisseur d’eau

5

17730-19D11

Крышка радиатора

1 666 ₽/шт

6

17791-46E10

CONDUCTION,RADIATOR

9 306 ₽/шт

7

17792-46E10

BRACKET,CONDUCTION

2 639 ₽/шт

8

17793-46E10

BRACKET,CONDUCTION BRACKET

848 ₽/шт

9

09280-44005

O RING(D:2.4,ID:43.2)

2 460 ₽/шт

10

01550-0610B

Болт

85 ₽/шт

11

01550-0616B

БОЛТ

81 ₽/шт

12

01550-0612B

БОЛТ

81 ₽/шт

13

17840-46E10

Pipe, head outlet joint

14

17851-01A00

HOSE,RADIATOR INLET

2 040 ₽/шт

15

17880-17E00

Pipe comp,outl.

16

09402-28511

CLAMP

307 ₽/шт

17

17853-46E10

Durite radiateur (WATER PUMP INLET)

18

17858-17E50

HOSE,RADIATOR JOINT

934 ₽/шт

19

17856-46E10

HOSE,HEAD OUTLET

1 544 ₽/шт

20

17857-46E10

Durite radiateur (radiator inlet)

21

17860-17E00

Pipe comp,cyl.

22

17870-46E00

Pipe,cyl.inlet

23

09103-06285

БОЛТ

136 ₽/шт

24

09280-18009

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

1 017 ₽/шт

25

09401-26407

CLIP

2 970 ₽/шт

26

09402-32511

Хомут

646 ₽/шт

27

09402-38511

КОЛЬЦО

7 120 ₽/шт

28

09407-25401

Хомут

221 ₽/шт

29

01550-0612B

БОЛТ

81 ₽/шт

30

01550-0612B

БОЛТ

81 ₽/шт

31

17910-17E10

Tank assy,rsvr

32

17932-12C00

КРЫШКА БАЧКА РАСШИРИТЕЛЬНОГО

629 ₽/шт

33

17981-46E00

Hose, reservoir tank inlet

34

09352-50901-00B

Hose (5x9x1000->00)

1 275 ₽/шт

35

09136-06022

Болт

1 720 ₽/шт

36

09401-08413

Collier

37

09407-18402

Струбцина (L:165)

211 ₽/шт

38

09407-18402

Струбцина (L:165)

211 ₽/шт

39

34850-50A00

GAUGE ASSY,WATER TEMP

4 335 ₽/шт

40

17680-48E00

SWITCH,RADIATOR FAN

8 289 ₽/шт
