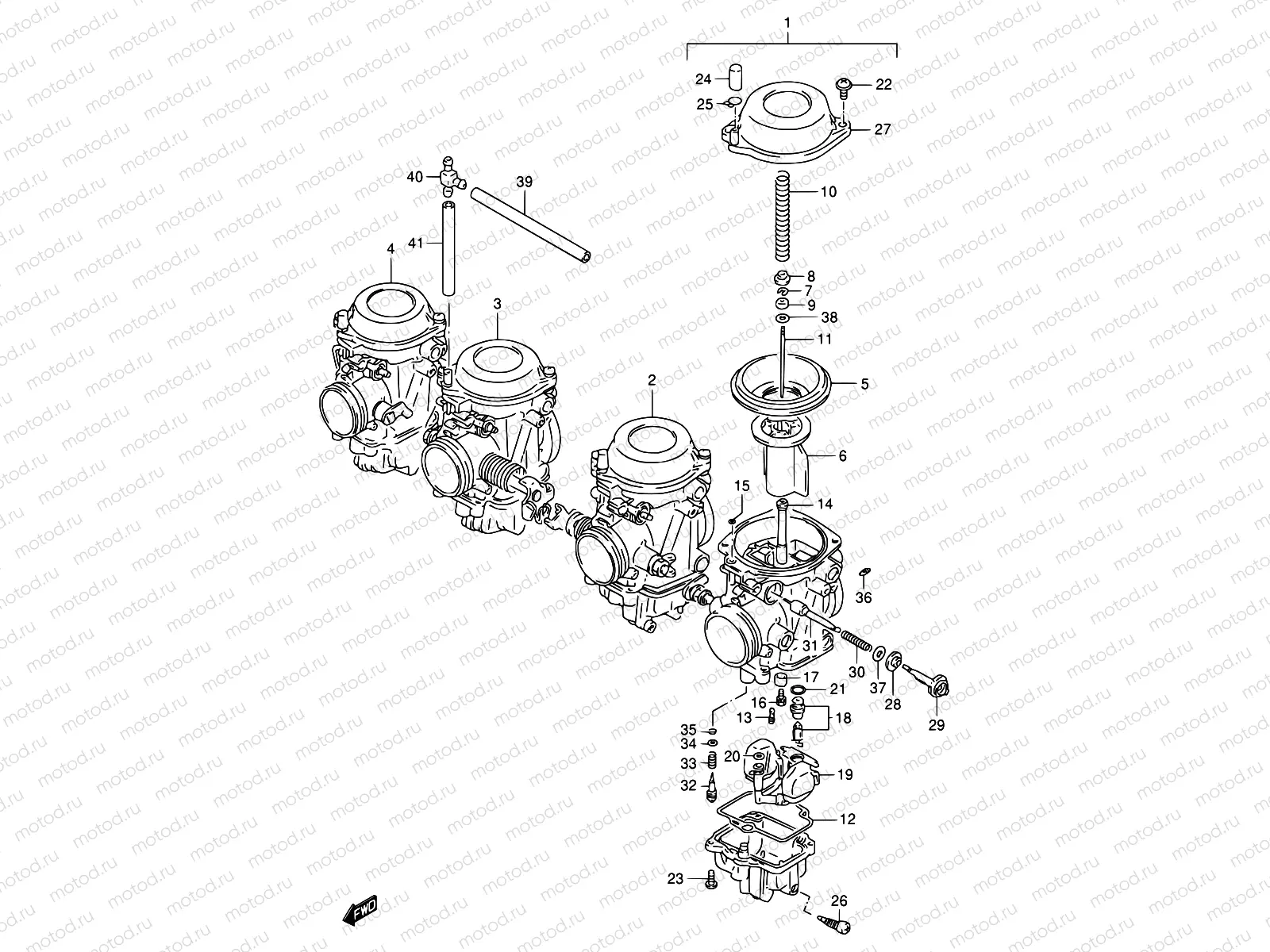

11B - CARBURETOR (MODEL T/V/W)

11B - CARBURETOR (MODEL T/V/W)
Например: 13201-46EB0
1
13201-46EB0
Carburettor (LH)
1
13201-46EH0
Carburettor (LH)
1
13201-46ED0
Carburettor (LH)
1
13201-46EF0
Carburettor (LH)
1
13201-46EE0
Carburettor (LH)
1
13201-46EK0
Carburettor (LH)
1
13201-46EL0
Carburettor (LH)
2
13202-46EB0
Carburetor assy, ml
2
13202-46EH0
Carburetor assy, ml
2
13202-46ED0
Carburetor assy, ml
2
13202-46EF0
Carburetor assy, ml
2
13202-46EE0
Carburetor assy, ml
2
13202-46EK0
Carburetor assy, ml
2
13202-46EL0
Carburetor assy, ml
3
13203-46EB0
Carburetor assy, mr
3
13203-46EH0
Carburetor assy, mr
3
13203-46ED0
Carburetor assy, mr
3
13203-46EF0
Carburetor assy, mr
3
13203-46EE0
Carburetor assy, mr
3
13203-46EK0
Carburetor assy, mr
3
13203-46EL0
Carburetor assy, mr
4
13204-46EB0
Carburettor (RH)
4
13204-46EH0
Carburettor (RH)
4
13204-46ED0
Carburettor (RH)
4
13204-46EF0
Carburettor (RH)
4
13204-46EE0
Carburettor (RH)
4
13204-46EK0
Carburettor (RH)
4
13204-46EL0
Carburettor (RH)
5
13507-07D02
iaphragm
3 485 ₽/шт
5
13507-17C02
Diaphragm
3 460 ₽/шт
6
13501-17D00
Valve,piston
6
13501-17C20
Valve,piston
6
13501-02D00
VALVE,PISTON
6 295 ₽/шт
7
13394-31210
CLIP,NEEDLE
238 ₽/шт
7
13394-40D20
E RING
282 ₽/шт
8
13331-12D00
RING
348 ₽/шт
8
13382-42A00
RING
187 ₽/шт
9
13387-07D00
RING
459 ₽/шт
9
13387-47010
RING
323 ₽/шт
10
13417-17E10
Spring
10
13503-34A00
Пружина
2 244 ₽/шт
11
13383-41C00
Жиклер
1 302 ₽/шт
11
13383-46E70
.jet needle (6zd21)
11
13383-46E40
NEEDLE,JET(5D44-2)
11
13383-46E50
.jet needle (5d51)
12
13258-44B00
Прокладка крышки поплавковой камеры
767 ₽/шт
13
09492-40014
Жиклерпроводник
731 ₽/шт
13
09492-30010
Жиклерпроводник
1 220 ₽/шт
14
09494-00857
Jet,needle,p-2
14
09494-00809
.needle jet (o-9)
14
09494-00852
Jet,needle,o-8m
15
13278-02340
O RING
162 ₽/шт
15
13509-17C00
O RING
323 ₽/шт
16
09491-24013
JET,MAIN(122.5)
594 ₽/шт
16
09491-25010
Жиклер главный
594 ₽/шт
16
09491-25011
JET,MAIN(127.5)
657 ₽/шт
16
09491-23017
JET,MAIN(117.5)
790 ₽/шт
17
13331-07D00
RING
1 309 ₽/шт
18
13370-46E21
Valve Assy,needle(Ni)
13 005 ₽/шт
19
13240-14D10
Поплавок
4 809 ₽/шт
19
13250-12EH0
FLOAT/NEEDLE VALVE ASSY
6 412 ₽/шт
20
13374-46710
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
21
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
22
02112-7516A
Болт
102 ₽/шт
23
13601-05148-XC0
Винт,5X14
211 ₽/шт
24
13508-17C00
КОЛПАЧОК
1 020 ₽/шт
25
13671-05A40
ХОМУТ
170 ₽/шт
26
13247-02340
Заглушка дренажная
258 ₽/шт
27
13502-41C00
OVER,DIAPHRAGM
2 581 ₽/шт
27
13502-26D30
.cover, diaphragm
27
13502-17C00
over,diaphragm
28
13418-17C01
ap,starter
323 ₽/шт
29
13418-17C10
HOLDER,GUIDE
954 ₽/шт
30
13417-26D00
Пружина
238 ₽/шт
31
13411-05320
PLUNGER ASSY
1 396 ₽/шт
32
13279-47070
Винт топливный
884 ₽/шт
33
13268-47070
Пружина
272 ₽/шт
34
13291-29900
Шайба
162 ₽/шт
35
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
36
09493-24007
Жиклер воздушный (1.2)
1 227 ₽/шт
36
09493-25003
JET,AIR(1.25)
845 ₽/шт
36
09493-27002
JET,AIR(1.35)
1 118 ₽/шт
37
13432-47090
Шайба
156 ₽/шт
38
13382-46E00
Шайба
239 ₽/шт
38
13382-44030
Шайба
4 110 ₽/шт
39
09352-50901-600
HOSE(5X9X600)
694 ₽/шт
40
13685-48B00
NIPPLE
918 ₽/шт
41
09352-50006-600
Hose(5X9X600)
425 ₽/шт
