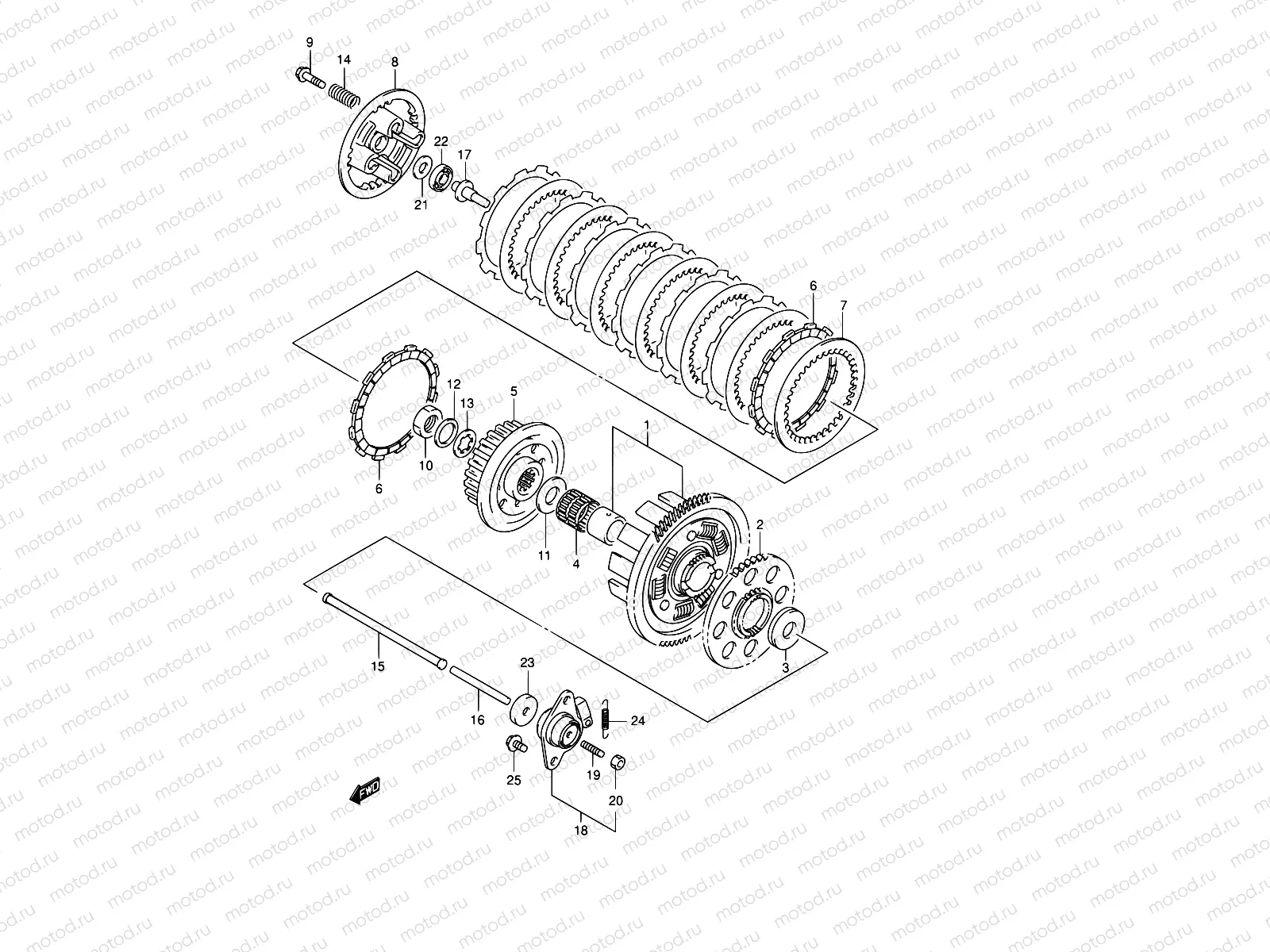

18 - CLUTCH

18 - CLUTCH

Например: 21200-26833

1

21200-26833

GEAR ASSY,PRI DRIVEN(NT:75)

35 972 ₽/шт

2

22721-17D02

Gear,generator

3

09160-25037

Шайба

5 870 ₽/шт

4

09263-35017

BEARING(35X40X35.8)

10 030 ₽/шт

5

21410-27A02

HUB,CLUTCH SLEEVE

9 775 ₽/шт

6

21441-37430

ДИСК СЦЕПЛЕНИЯ

4 165 ₽/шт

7

21451-05A00

Диск сцепления

2 423 ₽/шт

8

21462-27A00

DISC,CLUTCH PRESSURE

3 617 ₽/шт

9

09116-06150

БОЛТ

136 ₽/шт

10

09140-22008

Гайка

485 ₽/шт

11

09160-25056

WASHER

727 ₽/шт

12

09164-22007

Шайба

3 680 ₽/шт

13

09181-22251

Шайба

2 070 ₽/шт

14

09440-20020

Пружина

275 ₽/шт

15

23110-20C00

Штанга муфты

1 677 ₽/шт

16

23111-15501

ROD,CLUTCH PUSH,L

765 ₽/шт

17

23121-27A00

PIECE,CLUTCH PUSH

1 677 ₽/шт

18

23200-31300

SCREW ASSY,CLUTCH RELEASE

10 578 ₽/шт

19

09134-06010

Болт

1 880 ₽/шт

20

08310-00067

Гайка

81 ₽/шт

21

09160-15045

Шайба

211 ₽/шт

22

09263-15003

Подшипник 15X28X2

532 ₽/шт

23

09285-06015

САЛЬНИК УПЛОТНИТЕЛЬНЫЙ

840 ₽/шт

24

09443-07038

Пружина

2 310 ₽/шт

25

01550-0616B

БОЛТ

81 ₽/шт
