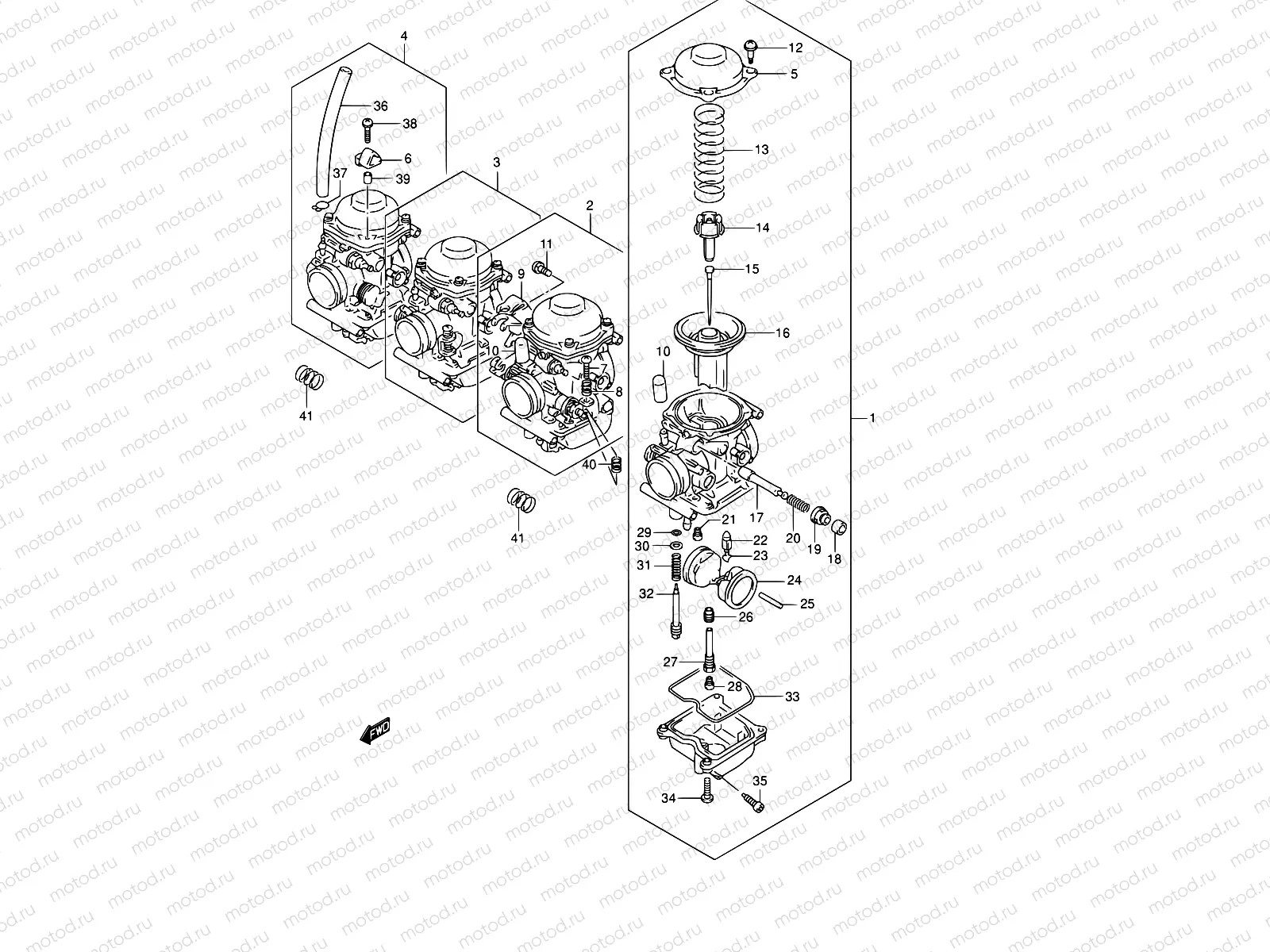

12B - CARBURETOR (MODEL K4)

12B - CARBURETOR (MODEL K4)
Например: 13201-31FA0
1
13201-31FA0
Carburettor (LH)
1
13201-31FB0
Carburettor (LH)
1
13201-31F90
Carburettor (LH)
2
13202-31FA0
Carburator assy
2
13202-31FB0
ML CARBUTATOR
2
13202-31F90
Carburetor assy, ml
3
13203-31FA0
Carburator assy
3
13203-31FB0
Carburetor assy, mr
3
13203-31F90
Carburetor assy, mr
4
13204-31FA0
Carburettor (RH)
4
13204-31FB0
Carburettor (RH)
4
13204-31F90
Carburettor (RH)
5
13502-31F00
Верх
6 885 ₽/шт
6
13624-26E00
Стойка, плата
1 165 ₽/шт
7
13267-26E10
Болт
274 ₽/шт
8
13271-26E10
Пружина
321 ₽/шт
9
13565-26E00
Plate
10
13508-26E01
Cap
461 ₽/шт
11
13602-26E20
Болт
289 ₽/шт
12
13601-11F00
Болт
184 ₽/шт
13
13417-31F00
Пружина
888 ₽/шт
14
13504-31F00
Пружина
1 087 ₽/шт
15
13383-31FA0
Needle jet
15
13383-26E00
Жиклер
1 376 ₽/шт
16
13500-31F00
PISTON
10 557 ₽/шт
16
13500-31F10
PISTON
10 753 ₽/шт
17
13411-26E00
Распылитель
3 871 ₽/шт
18
13419-26E00
CAP
461 ₽/шт
19
13418-26E00
CAP
461 ₽/шт
20
13417-26E10
Пружина
500 ₽/шт
21
09492-35020
Жиклер
1 189 ₽/шт
21
09492-38005
Жиклер
1 189 ₽/шт
22
13370-26E00
Клапан
1 455 ₽/шт
23
13375-26E00
CLIP
348 ₽/шт
24
13250-26E00
Поплавок
4 692 ₽/шт
25
13254-26E00
Поплавок прокладки
231 ₽/шт
26
09494-00869
Жиклер
2 796 ₽/шт
27
13331-26E00
HOLDER,NEEDLE JET
1 736 ₽/шт
28
09491-92012
JET,MAIN(92)
1 189 ₽/шт
28
09491-98008
JET,MAIN(98)
1 220 ₽/шт
29
13295-26E00
O RING
187 ₽/шт
30
13291-26E00
Шайба
170 ₽/шт
31
13268-26E00
Пружина
364 ₽/шт
32
13279-03FA0
Винт настройки
790 ₽/шт
33
13258-26E00
O RING
747 ₽/шт
34
13602-26E10
Болт
387 ₽/шт
35
13247-26E00
Дренаж
1 189 ₽/шт
36
09352-50006-600
Hose(5X9X600)
425 ₽/шт
37
13671-26E00
CLIP
242 ₽/шт
38
13602-31F00
Болт
246 ₽/шт
39
13582-31F00
COLLAR
958 ₽/шт
40
13268-26E10
Пружина
364 ₽/шт
41
13271-26E20
Пружина
461 ₽/шт
