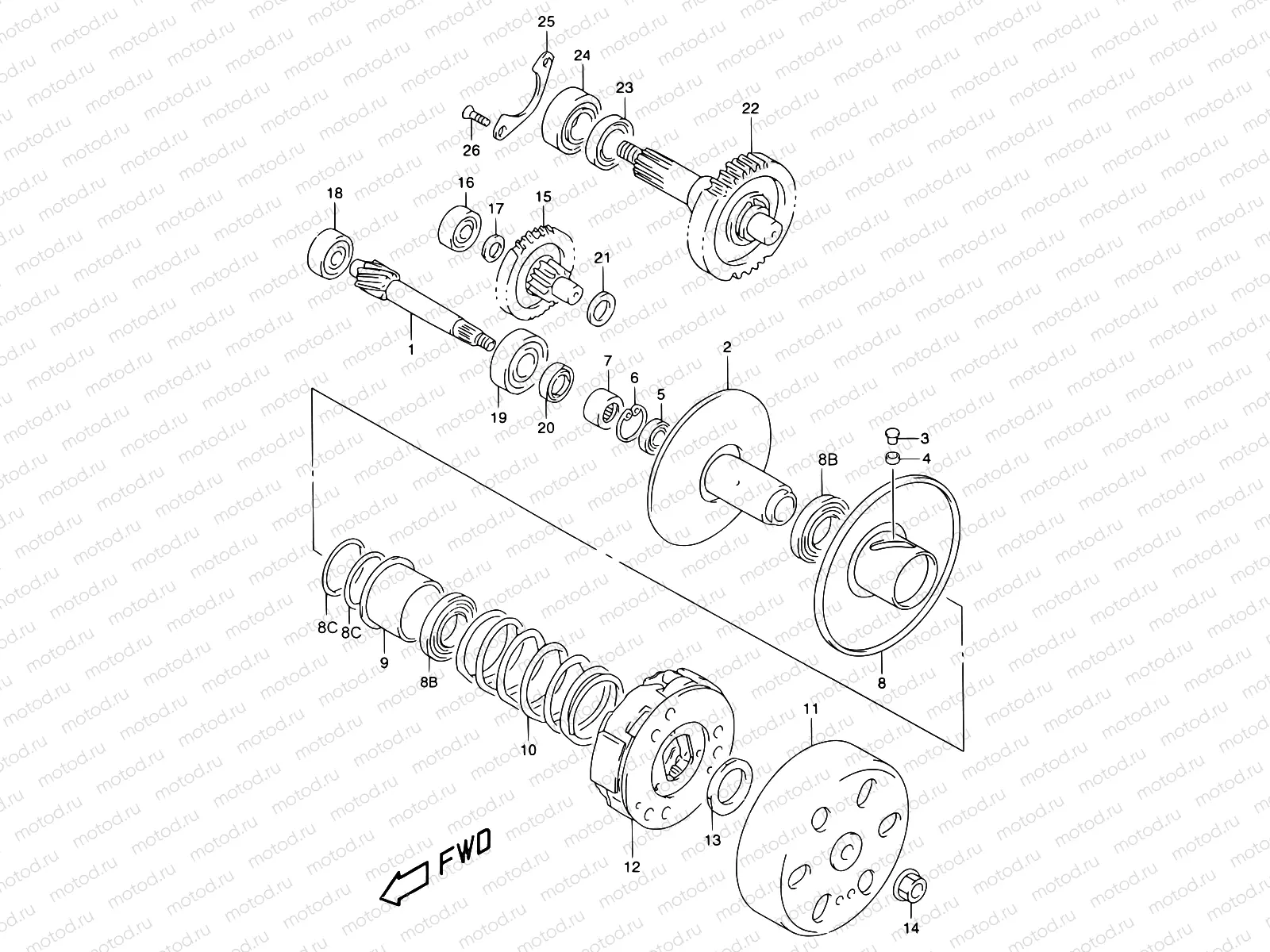

13C - TRANSMISSION (2) (MODEL AY50WR K1)

13C - TRANSMISSION (2) (MODEL AY50WR K1)
Например: 24131-06F20
1
24131-06F20
Вал ведущий
6 530 ₽/шт
2
21210-06F20
ACE,FIXED DRIVEN
7 625 ₽/шт
3
21248-33G00
PIN,MOVABLE DRIVEN
454 ₽/шт
4
21249-06F00
Кольцо/шайба
221 ₽/шт
5
09262-12018
Подшипник
808 ₽/шт
6
08331-41249
CIRCLIP
162 ₽/шт
7
21214-35E01
Bearing,fixed Driven,r
3 060 ₽/шт
8
21240-06F20
ACE,MOVABLE DRIVEN
7 194 ₽/шт
8
09284-34002
SEAL,OIL(34X39X3)
1 341 ₽/шт
8
09280-41005
Кольцо уплотнительное
1 560 ₽/шт
9
21471-03A50
SHEET,MOVABLE DRIVEN
669 ₽/шт
10
21243-06F20
SPRING,MOVABLE DRIVEN
2 444 ₽/шт
11
21220-04C21
HOUSING,CLUTCH
13 558 ₽/шт
12
21501-29C60
LUTCH ASSY,SHOE
11 144 ₽/шт
12
21501-40D20
CLUTCH ASSY,SHOE
14 545 ₽/шт
13
09140-28004
ШАЙБА
4 650 ₽/шт
14
08316-1010B
Гайка
85 ₽/шт
15
24150-43E30
SHAFT,IDLE(NT:16/51)
11 144 ₽/шт
15
24150-43E40
SHAFT,IDLE(NT:14/51)
11 144 ₽/шт
16
09262-12024
BEARING(12X32X10)
2 151 ₽/шт
17
09181-12167
Шайба
194 ₽/шт
18
09262-12024
BEARING(12X32X10)
2 151 ₽/шт
19
09262-22032
Bearing
20
09283-22027
SEAL,OIL(22X32X5)
688 ₽/шт
21
08211-16251
WASHER
1 250 ₽/шт
22
24140-35E60
RR AXLE SHAFT 65 T
22
24140-35E70
Shaft,rr axle
23
64841-28E01
Seal(29X42X6)
697 ₽/шт
24
09262-22027
Bearing,22x50x1
25
24751-07900
RETAINER,DRIVE SHAHFT BEARING
227 ₽/шт
26
02112-0616A
Болт
81 ₽/шт
