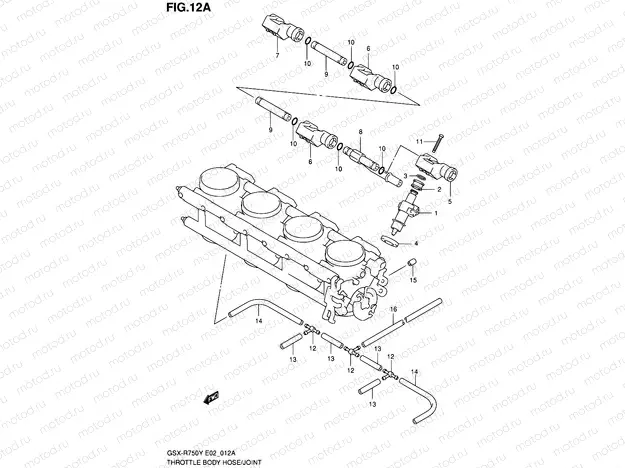

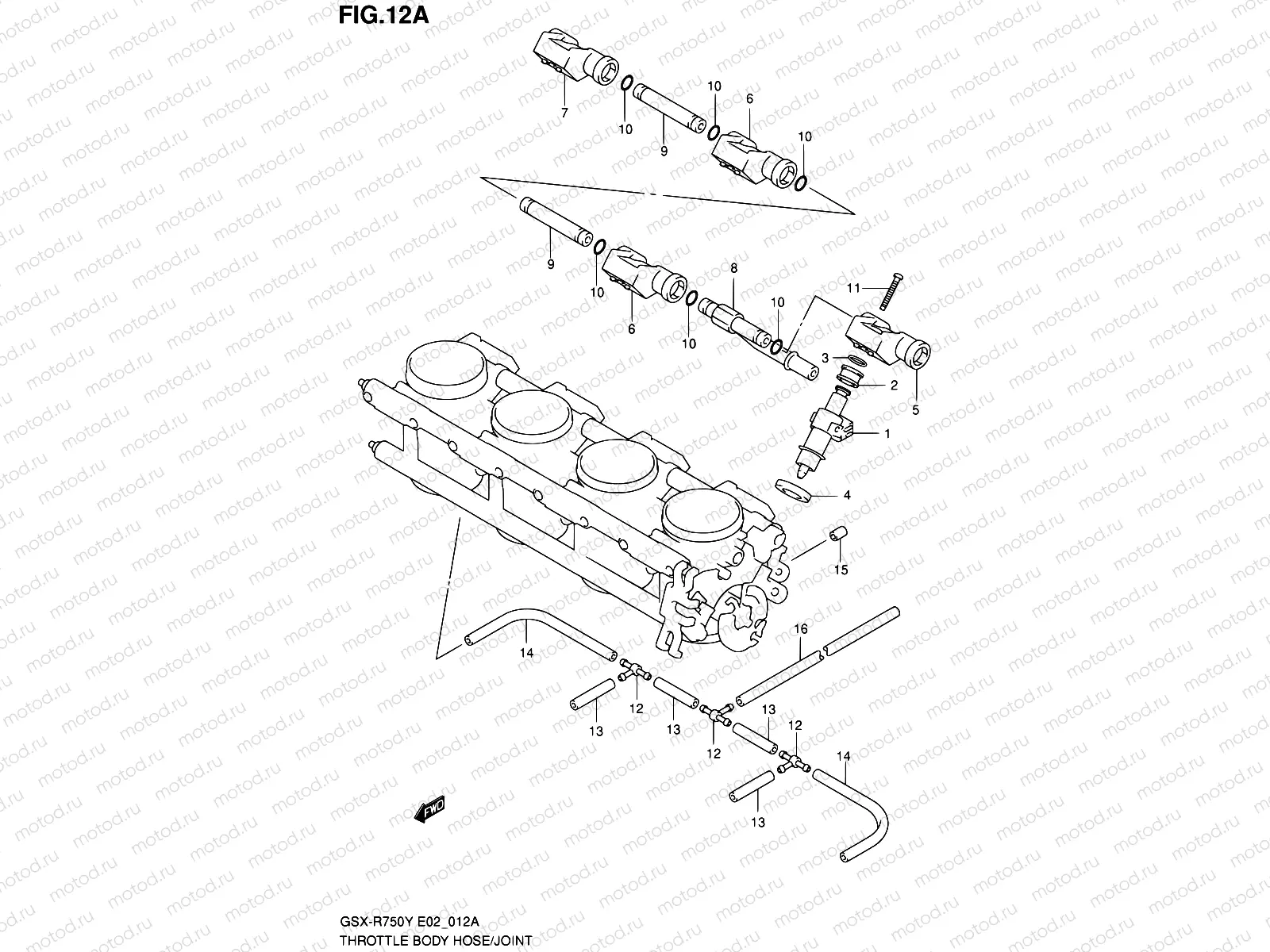

12A - THROTTLE BODY HOSE/JOINT (MODEL K1)

12A - THROTTLE BODY HOSE/JOINT (MODEL K1)

Например: 15710-24F00

1

15710-24F00

INJECTOR ASSY

22 874 ₽/шт

2

15722-24F00

RING,CUSHION

958 ₽/шт

3

15721-24F00

O-RING

468 ₽/шт

4

13672-24F00

RING,SEAL

1 157 ₽/шт

5

13471-35F00

JOINT,NO.1

2 346 ₽/шт

6

13471-35F10

JOINT,NO.2,3

2 346 ₽/шт

7

13471-35F20

JOINT,NO.4

2 346 ₽/шт

8

13473-35F01

JOINT

7 116 ₽/шт

9

13474-24F00

JOINT

2 287 ₽/шт

10

15721-24F00

O-RING

468 ₽/шт

11

13601-35F00

Болт

501 ₽/шт

12

13471-24F30

Направляющая трубки

903 ₽/шт

13

13697-24F01

Hose,rubber(L:35)

170 ₽/шт

14

13697-24F21

Hose,rubber(L:100)

255 ₽/шт

15

13508-24F00

Крышка резиновая

669 ₽/шт

16

13697-35F01

Hose,rubber(3x7
