Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 750 SUZUKI GSX-R750 K1 SUZUKI (VIN: JS1GR7HA, JS1BD111) 11A - THROTTLE BODY (MODEL K1)

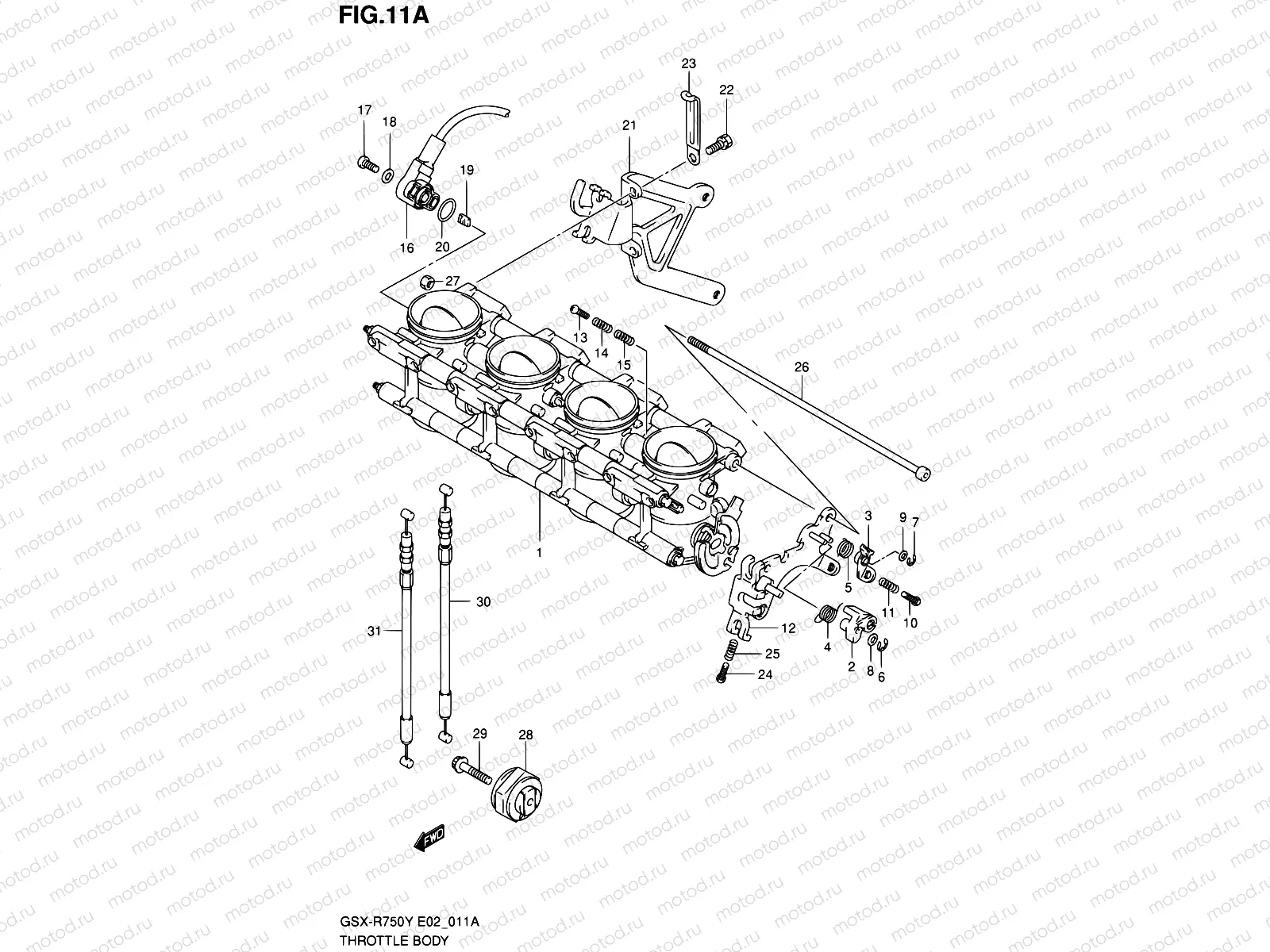

11A - THROTTLE BODY (MODEL K1)

11A - THROTTLE BODY (MODEL K1)

Например: 13460-35F01

1

13460-35F01

BODY SET,THROTTLE

2

13413-35F00

Link lever

3

13414-35F00

Link lever

4

13426-35F00

Spring

5

13426-35F10

Spring

6

13424-35F00

Шайба

188 ₽/шт

7

13424-35F10

E CLIP

250 ₽/шт

8

13427-35F00

Rondelle

9

13427-35F10

Шайба

278 ₽/шт

10

13423-35F00

Болт

563 ₽/шт

11

13271-26E10

Пружина

321 ₽/шт

12

13565-35F00

Plate,stay

13

13423-35F00

Болт

563 ₽/шт

14

13543-24F00

Пружина

348 ₽/шт

15

13268-03F50

Пружина

364 ₽/шт

16

13580-24F00

Sensor,throttle

17

13613-24F00

Болт

160 ₽/шт

18

13572-03F00

Шайба

192 ₽/шт

19

13582-24F00

COLLAR

504 ₽/шт

20

13575-24F00

O RING

348 ₽/шт

21

13627-35F00

Plate, stay

22

13611-35F00

Болт

411 ₽/шт

23

13432-24F00

Clamp

24

13267-35F00

Болт

2 072 ₽/шт

25

13268-35F00

Пружина

321 ₽/шт

26

13611-24F00

Болт

1 580 ₽/шт

27

13607-24F00

Гайка

160 ₽/шт

28

11269-20A04

PULLEY,CONTROLLER

2 854 ₽/шт

29

07120-0520B

Болт

1 490 ₽/шт

30

13641-35F00

CABLE,THROTTLE ACTUATOR OPEN

1 271 ₽/шт

31

13642-35F00

CABLE,THROTTLE ACTUATOR CLOSE

1 271 ₽/шт
