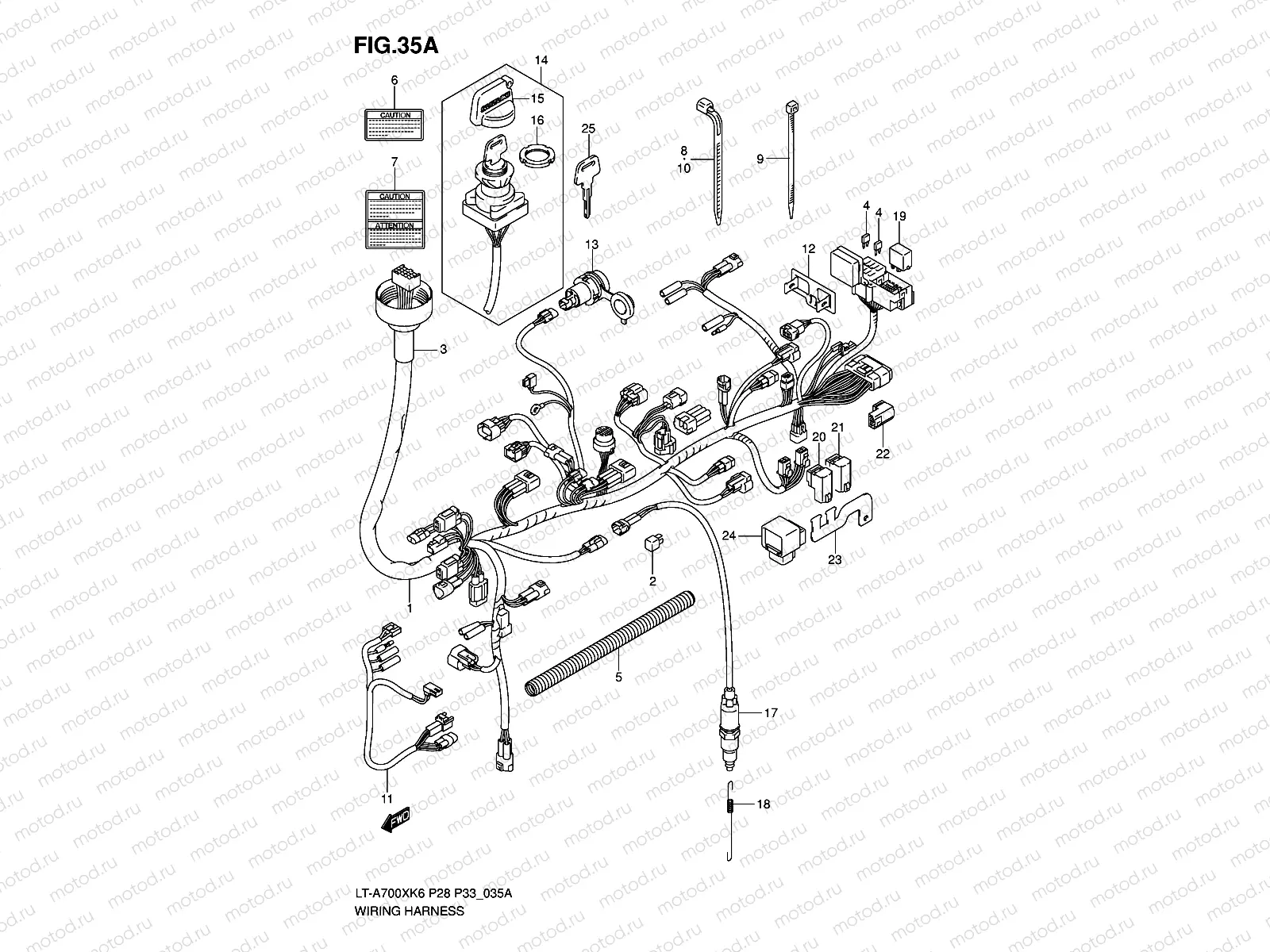

WIRING HARNESS (MODEL K6/K7 F.NO.5SAAP41A 67110001~)

WIRING HARNESS (MODEL K6/K7 F.NO.5SAAP41A 67110001~)

Например: HARNESS, WIRING

1

HARNESS, WIRING

2

32800-16A00

Диод

1 697 ₽/шт

3

36618-31G00

Cover,speed

4

09481-10504

Ограничитель,10A

1 250 ₽/шт

4

09481-15501-LCP

Fusible (10A)

5

36619-31G00

UIDE, WIRING HARNESS

6

38852-09F30

Label,caution m

7

38852-03G10

Label,caution m

8

09407-18402

Струбцина (L:165)

211 ₽/шт

8

09407-14403

КЛЕММА

221 ₽/шт

8

09407-14403

КЛЕММА

221 ₽/шт

8

09407-25401

Хомут

221 ₽/шт

9

09407-14407

ЗАЖИМ

221 ₽/шт

10

09407-22403

CLAMP(L:220)

1 370 ₽/шт

11

36857-31G00

Wire, front bra

11

36857-03G00

Wire,front brak

12

36744-31G00

Bracket,fuse bo

13

38850-03G00

Terminal power

14

37110-31G01

Switch assy,ign

15

37142-19B01

Mascot,key

612 ₽/шт

16

37112-24500

Гайка

969 ₽/шт

17

37740-38F01

Switch assy,sto

18

09443-06080

SPRING

3 750 ₽/шт

19

38730-09F00

Relay,neutral s

20

38740-31G02

Relay,assy,fuel

20

38740-31G11

Relay,assy

21

38740-31G11

Relay,assy

21

38740-31G02

Relay,assy,fuel

22

38740-31G02

Relay,assy,fuel

23

38741-31G20

Bracket,relay

24

38750-31G00

RELAY ASSY,DRIVE

8 602 ₽/шт

25

37146-19B20

KEY,BLANK(TYPE:E)

512 ₽/шт

25

37146-19B00

KEY,BLANK(TYPE:C)

884 ₽/шт

25

37146-19B10

KEY,BLANK(TYPE:D)

512 ₽/шт

25

37146-19B30

KEY,BLANK(TYPE:F)

884 ₽/шт
