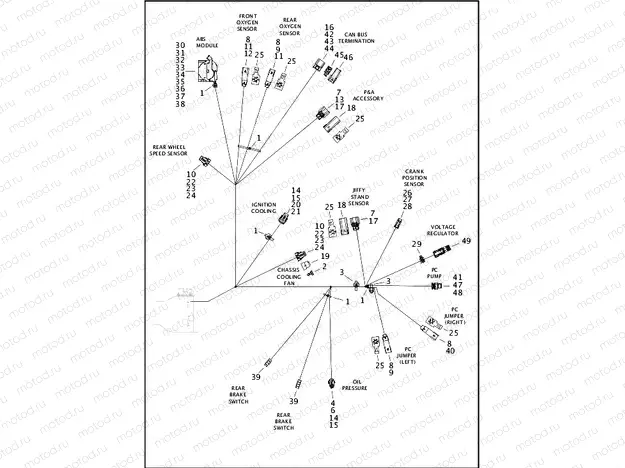

WIRING HARNESS, MAIN (7 OF 8)

WIRING HARNESS, MAIN (7 OF 8)
Например: 69201-556
0
69201-556
HARNESS,WIRE,MAIN,ABS
1
10065
CABLE STRAP
2
10147
CLIP, CONNECTOR
3
10177
CABLE STRAP, PLUG IN
4
72065-06A
HOUSING, 3-WAY SOCKET
5
72111-06
SECONDARY LOCK, 2-WAY, FEMALE,
6
72127-06
SECONDARY LOCK, 3-WAY, FEMALE,
7
72168-07
TERMINAL, SOCKET #18-20 AWG
8
72169-07
TERMINAL, PIN #16-20 AWG
9
72175-07BK
HOUSING, 4-WAY PIN, BLACK
10
72213-94
TERMINAL, 18-20 GA. FEMALE
11
72343-10
TERMINAL,PIN,#16-20AWG/GOLD
12
72415-07GY
HOUSING, 4-WAY PIN, GRAY
13
72473-07
SEAL PIN (PLUG)
14
72484-08
TERMINAL, SOCKET, #20AWG
15
72486-08
WIRE SEAL, #20AWG
16
72499-07
WIRE SEAL, #20-22 AWG 605
17
72512-07BK
HOUSING, 3-WAY SOCKET, BLACK
18
72519-09BK
DUSTCAP, JET SENSOR
19
72533-06
DUSTCAP, 2-PIN CONNECTOR
20
72544-07
SECONDARY LOCK, 3-WAY FEMALE
21
72589-09
HOUSING, 3-WAY SOCKETS
22
72606-08
HOUSING, 2-WAY SOCKET
23
72609-08
SECONDARY LOCK, 2-WAY SCKT/BLA
24
72610-08
SEAL, CABLE #18-20 AWG, WHITE
25
73213-07
RETAINER, XMAS TREE CLIP
26
74112-98BK
SOCKET HOUSING, 2-WAY, BLACK
27
74152-98
SOCKET LOCK, 2-WAY
28
74191-98
SOCKET, TERMINAL
29
12500-018
STRAP,TIE,XMAS,2 PIECE
30
69200-183
CONNECTOR,26-WAY SOCKET
31
69200-184
COVER,90DEG-WIRE DRESS,26-WAY
32
69200-185
TERMINAL,SOCKET,#20 AWG,1.5
33
69200-186
TERMINAL,SOCKET,#14-16 AWG,2.8
34
69200-187
TERMINAL,SOCKET,#12 AWG,4.8
35
69200-188
WIRE SEAL,#20AWG,1.5
36
69200-189
WIRE SEAL,#14-16AWG,2.8
37
69200-190
WIRE SEAL,#12AWG,4.8
38
69200-191
SEAL PIN,PLUG,1.5
39
69200-238
TERMINAL,.250F,INSULATED
40
69200-272
CONNECTOR,2-WAY PIN
41
69201-301
WIRE SEAL,#20-22AWG,GREEN
42
69201-396
TERMINAL,SOCKET,#20 AWG
43
69201-400
HOUSING,2-WAY, SOCKET,BK,CPA
44
69201-401
SECONDARY LOCK 2-WAY SOCKET
45
69201-404
ANCHOR,CONNECTOR
46
69201-405
RESISTOR PACK
47
69201-406
HOUSING,3-WAY SOCKET
48
69201-407
TERMINAL,SOCKET,#20 AWG
49
69201-423
DC LEAD ASSEMBLY
