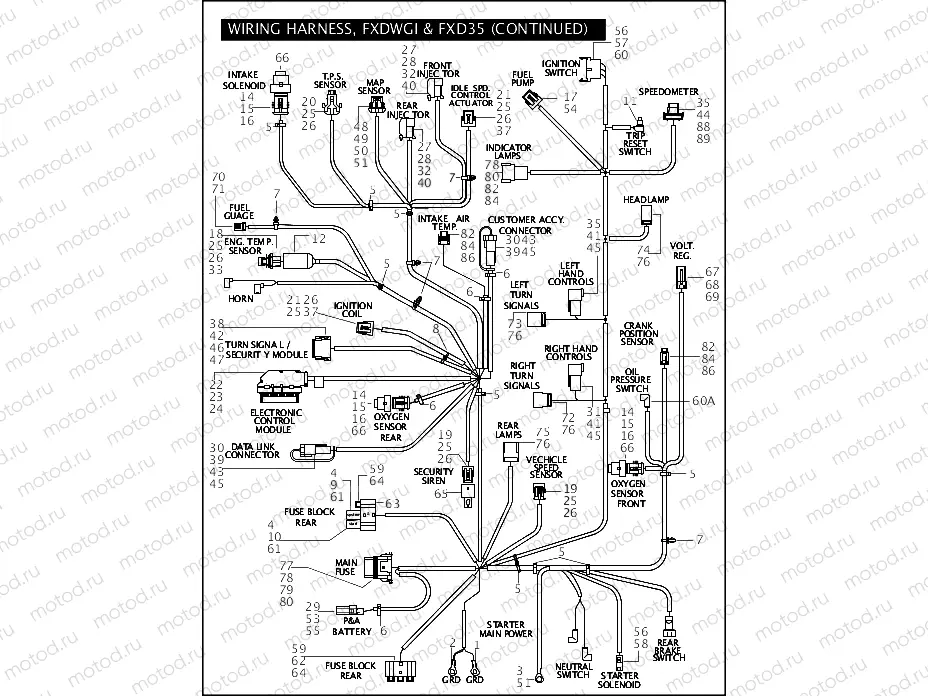

WIRING HARNESS, FXDWGI & FXD35 (CONTINUED)

WIRING HARNESS, FXDWGI & FXD35 (CONTINUED)
Например: 69603-06
0
69603-06
WIRE HARNESS, MAIN, FXDWG/L, F
43
72164-94A
PLUG, 4-WAY PIN CONNECTOR, RUB
44
72189-04
SEAL PIN
45
72190-94
STAMPED & FORMED PIN
46
72191-94
STAMPED AND FORMED SOCKET
47
72195-94
SEAL PIN,4-WAY RECEPTACLE
48
72213-94
TERMINAL, 18-20 GA. FEMALE
49
72214-94
CABLE SEAL
50
72230-98
SOCKET HOUSING, 3 WAY
51
72231-98
SECONDARY LOCK, 3 WAY
52
72249-94
SHRINK TUBE, .3 X 1 INCH
53
72260-04
HOUSING, 1 WAY FEMAIL
54
72263-95
ISCM CONNECTOR, 4 WAY
55
72289-04
TERMINAL, FEMALE, 10-12 AWG
56
72291-94
TERMINAL, 56 SERIES, 14-16GA
57
72292-94
TERMINAL, 56 SERIES, 12 GA
58
72295-94
HOUSING, .187 TERM
59
72330-95
Fusible (15A)
60
72327-03A
HOUSING,3-WAY IGN SW,FEMALE
60
72405-98GN
PUSH-ON WIRE ASSY,RIGHT ANGLE,
61
72427-00
TERMINAL, .187, 22-16 GAUGE
62
72430-00
FUSE MOUNTING BLOCK, TYPE 0
63
72432-00
FUSE MOUNTING BLOCK, TYPE 2
64
72434-00
TERMINAL, JR. POWER-TIMER, 16-
65
72516-01
CAP, SIREN CONNECTOR
66
72533-06
DUSTCAP, 2-PIN CONNECTOR
67
72612-06BK
HOUSING, 2-WAY SOCKET, BLACK
68
72652-06
SECONDARY LOCK,2WAY,SCKT
69
72694-06
TERMINAL, SOCKET, #10AWG
70
72914-01BK
pc - SOCKET HOUSING, 4-WAY
71
72991-01
pc - TERMINAL SOCKET
72
73103-96BK
TAB HOUSING, 3-POSITION
73
73103-96WE
HOUSING, PIN, 3-WAY
74
73104-96BK
TAB HOUSING, 4-POSITION
75
73108-96BK
TAB HOUSING, 8-POSITION
76
73190-96
TAB TERMINAL, 20-16 GA
77
73301-04
HOUSING, 2 WAY FEMALE
78
73303-04
SECONDARY LOCK, 2-WAY FEMALE
79
73304-04
TERMINAL, .31 FEMALE
80
73305-04
WIRE SEAL #10 BLUE
81
74108-98BK
PIN HOUSING, 8-WAY, BLACK
82
74112-98BK
SOCKET HOUSING, 2-WAY, BLACK
83
74148-98
SECONDARY LOCK, 8-WAY PIN
84
74152-98
SOCKET LOCK, 2-WAY
85
74190-98
PIN TERMINAL
86
74191-98
SOCKET, TERMINAL
87
74195-98
SEAL PIN
88
74196-04
TERMINAL SOCKET
89
74197-04
SECONDARY LOCK
90
72127-06
SECONDARY LOCK, 3-WAY, FEMALE,
