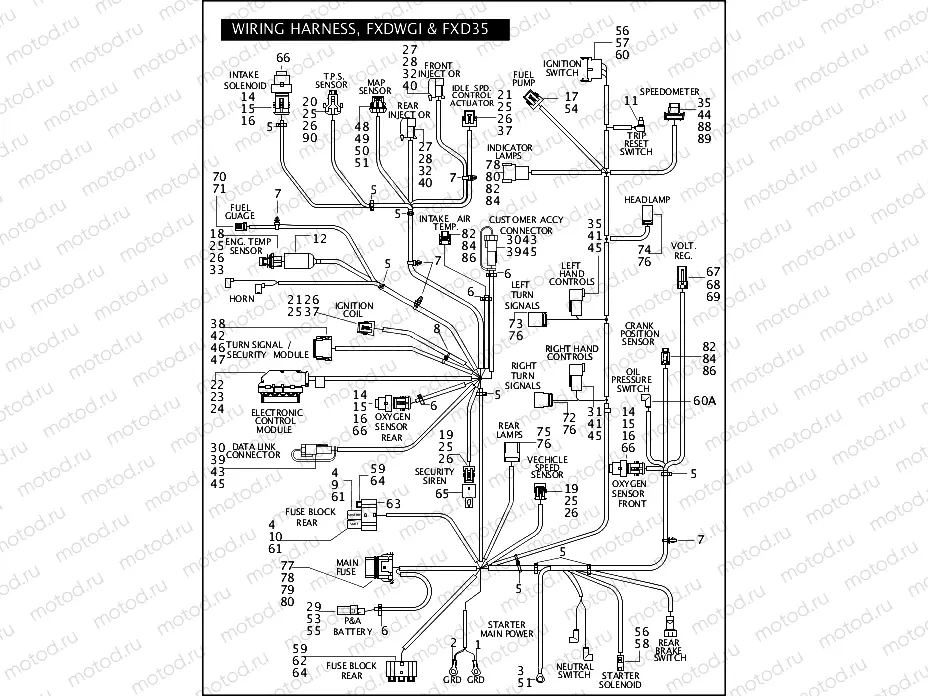

WIRING HARNESS, FXDWGI & FXD35

WIRING HARNESS, FXDWGI & FXD35
Например: 69603-06
0
69603-06
WIRE HARNESS, MAIN, FXDWG/L, F
1
9819
TERMINAL RING
2
9825
TERMINAL, RING, 1/4
3
9842
TERMINAL RING, .31 STUD, 10-12
4
9937
TERMINAL .25 FASTON 18-14GA
5
10065
CABLE STRAP
6
10177
CABLE STRAP, PLUG IN
7
10270
CABLE STRAP, ROSEBUD W/ WINGS
8
10287
CABLE STRAP, XMAS TREE MOUNT
9
31511-01B
RELAY, SYSTEM, BLACK
10
31522-00D
STL2001 MICRO RELAY SPDT, W/DI
11
67565-04
SWITCH ASSY, TRIP REST 12.5 IN
12
70598-99
BOOT,TEMP,SENSOR
13
70976-06
WIRE GUIDE, TPS
14
72006-05
SOCKET, TERMINAL
15
72007-05
HOUSING, 2-WAY SOCKET
16
72011-05
WIRE SEAL, #16-20AWG YELLOW
17
72033-93
SOCKET, TERMINAL
18
72063-06
HOUSING, 2-WAY FEMALE
19
72064-06
HOUSING, 3-WAY FEMALE
20
HOUSING, 3-way female
21
72066-06A
HOUSING,4-WAY SOCKET
22
72076-00
TERMINAL SOCKET
23
72077-00
PLUG, SEAL
24
72078-00
CONNECTOR KIT
25
72094-06
TERMINAL, FEMALE, 18AWG
26
72096-06
WIRE SEAL, 20AWG, YELLOW
27
72098-06
HOUSING, 2-WAY FEMALE
28
72099-06
WIRE SEAL, 16-18AWG, BLUE
29
72100-04
HOUSING CONNECTOR
30
72104-94BK
SEALED PIN HOUSING, BLACK, 4-P
31
72106-94BK
SEALED PIN HOUSING, BLACK, 6-P
32
72110-06
TERMINAL, FEMALE, 16-18AWG
33
72111-06
SECONDARY LOCK, 2-WAY, FEMALE,
34
72124-94GY
SEALED PIN HOUSING, GRAY, 4-PI
35
72106-94BK
SEALED PIN HOUSING, BLACK, 6-P
36
72130-04
HOUSING, 12-WAY
37
72135-06
SECONDARY LOCK, 4-WAY, FEMALE,
38
72139-94GY
SEALED SOCKET HOUSING, GRAY, 1
39
72144-94
SECONDARY LOCK, 4 PIN
40
72145-06
SECONDARY LOCK, 2-WAY, FEMALE,
41
72146-94
SECONDARY LOCK, 6 PIN
42
72159-94
SECONDARY LOCK, 12-SOCKET
