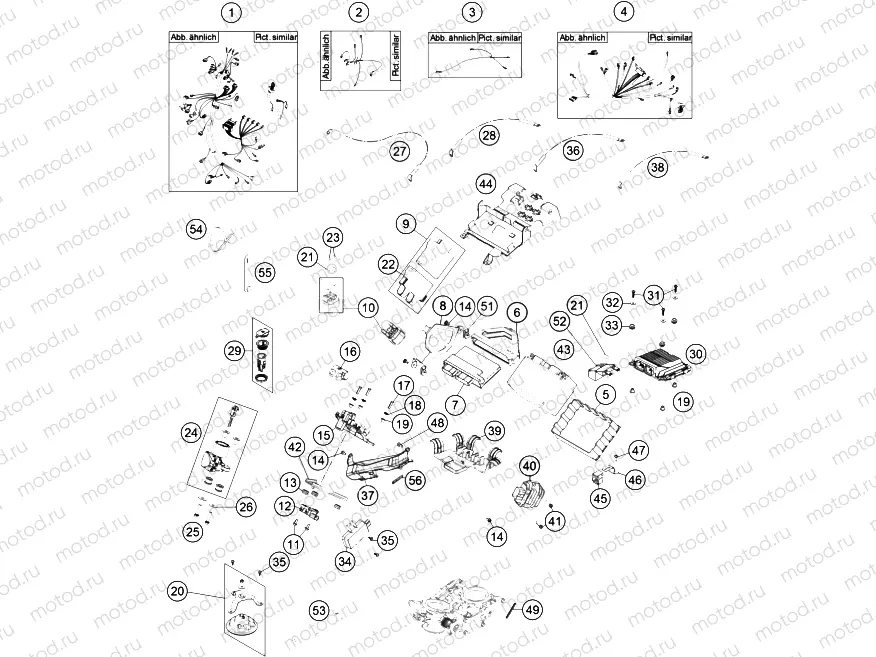

WIRING HARNESS

WIRING HARNESS

Например: 60311075100

1

60311075100

WIRING HARNESS

2

60311085100

WIRING ENGINE

3

60311079000

WIRING HARNESS HEAD LIGHT

4

60311076000

REAR WIRING HARNESS

5

60311053050

BATTERIE HOUSING

6

60341031050

ECU RUBBER BRACKET

7

61341031000

Engine control unit

8

60311057050

BRACKET ELECTRIC

9

60316031100

CONTROL UNIT EDS

10

58211058000

Relais - démarreur

11

0024060136

Vis

12

60342090100

inertial sensor

13

62142041000

DAMP. COMPONENT ABS MODUL

14

69008021160

Vis (spec)

15

60311048100

SUPPORT BRACKET FRONT

16

61041088000

ROLLOVER SENSOR 05

17

0738060201

FLAT HEAD SCREW ISO7380 M6X20

18

76508043050

COLLAR BUSHING

19

69014015000

collar bushing 6.1x9.2x15x8.5x1 Al

20

60311060000

HORN CPL.

21

58011109130

FUSE 30 A

21

58011109125

FUSE 25 A

21

58011109140

FUSE 40 A

21

58011109115

Fusible (15A)

21

58011109110

FUSE 10 A 2000

22

60316029000

RUBBER EDS-CONTROL UNIT

23

0902060083

Vis

24

60311066100

IGNITION LOCK

25

0025080306S

Vis

26

0021080003

WASHER DIN9021-A 8,4

27

60311059000

STARTER CABLE

28

60311098000

GROUND CABLE

29

60311042000

POWER OUTLET 12V

30

60311033200

MOTORCYCLE CONTROL UNIT 2.1

31

0081050181

SCREW FOR PLASTIC K50X18 T20

32

0021050003

washer DIN 9021 A - 5.3

33

60006001022

rubber grommet 9x11x16x8.5 mm

34

60312032000

RECEIVER AIR PRESSURE SENSOR

35

0081050121

EJOT PT screw K50x12

36

60311097000

GROUND CABLE

37

60311047000

CABLE CHANNEL R/S

38

60311059050

BATTERIE CABLE

39

60311049300

Plug board rear

40

60311034000

Régulateur de tension

41

0025060206

Vis

42

60342090040

BRACKET SLOPING POSITIONS SENS

43

60011053000

La batterie

44

60308017000

BATTERIE COVER

45

61041085050

RUBBER SUPP. PRESSURE SENS. 05

46

60311040100

BRACKET PRESSURE SENSOR

47

0081050161

EJOT PT SCREW K50X16 1451

48

0023060123

COLLAR SCREW M6X12 TX

49

61011055045

EDGE PROTECTOR L=45MM 05

50

69008021160

Vis (spec)

51

54603048200

RANGE CHANGE METAL NUT M5

52

58411087050

RUBBERCOVER F.LOCKHOLDER

53

61111018100

TEMPERATURE SENSOR

54

44011076140

CABLE TIE 140/2,5MM BLACK

54

44011076200

CABLE TIE 200/3,6MM BLACK

54

44011076305

CABLE TIE 300/4,8MM BLACK

55

60011093045

RUBBER CABLE TIE 45MM 03

55

60011093060

RUBBER CABLE TIE 60MM 03

56

60311046050

CABLE PASSAGE
