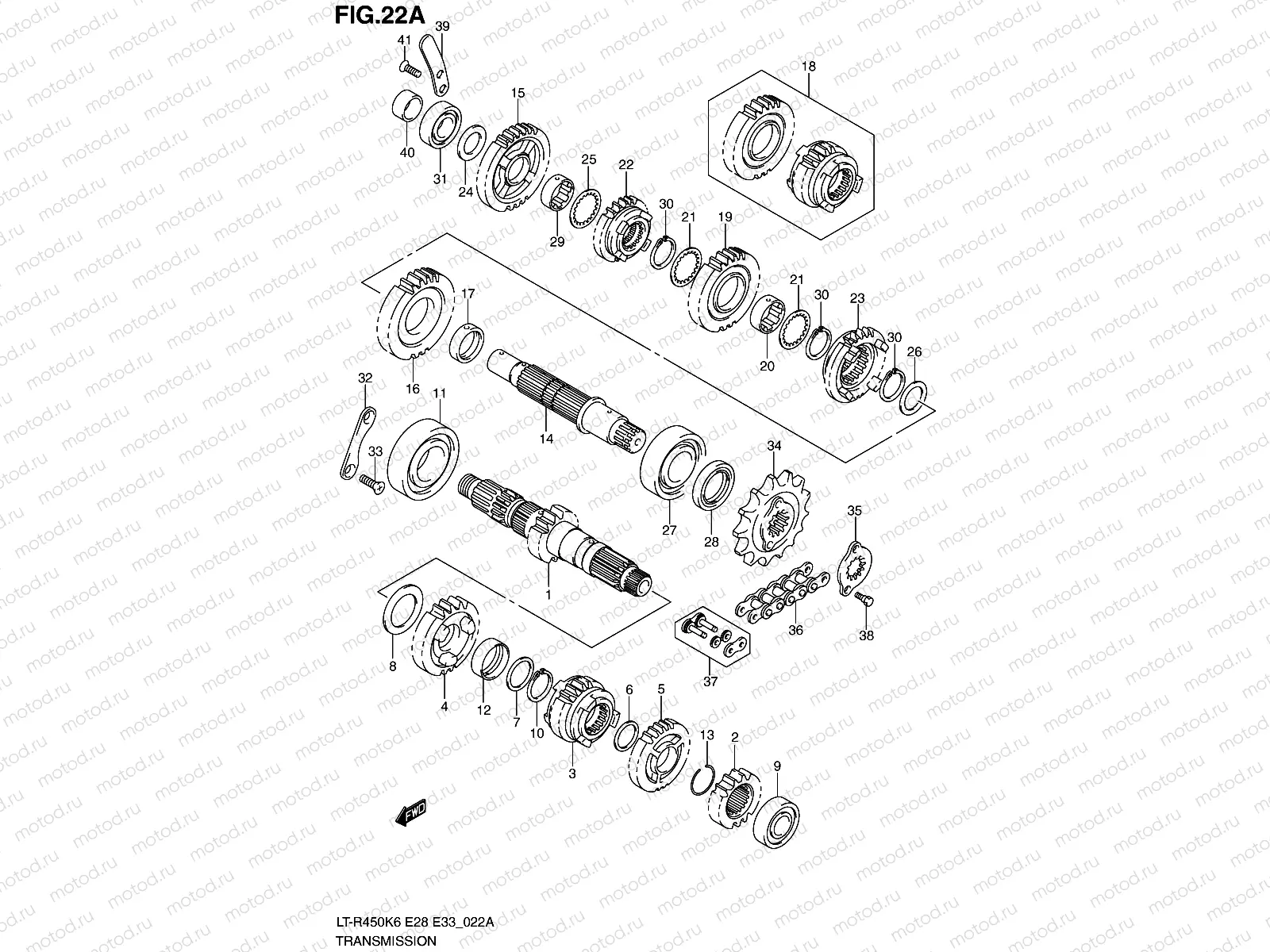

TRANSMISSION (MODEL K8/K9/L0)

TRANSMISSION (MODEL K8/K9/L0)
Например: 24120-45G10
1
24120-45G10
Shaft,counter
2
24221-45G10
ear,2nd drive
3
24231-45G30
ear,3rd drive
4
24241-45G10
ear,4th drive
5
24250-45G10
ear comp,5th d
6
09181-22139
SHIM,22X28X1.0
204 ₽/шт
7
09181-25139
ШАЙБА
1 720 ₽/шт
8
09181-25223
SHIM(25X38X1)
194 ₽/шт
9
09262-17027
Подшипник
1 683 ₽/шт
10
09380-25003
КЛИПС
291 ₽/шт
11
09262-25124
Bearing,cranksh
12
24252-19F00
BUSH
888 ₽/шт
13
09381-24001
Ring,snap
14
24130-45G01
Shaft,drive
15
24311-45G10
ear,1st driven
16
24321-45G10
ear,2nd driven
17
24322-35F00
BUSH,2ND DRIVEN GEAR
1 105 ₽/шт
18
24331-45810
Gear set, 3rd d
19
24331-45G30
ear,3rd driven
20
24332-17E20
BUSH,3RD DRIVEN GEAR
2 295 ₽/шт
21
24333-02F00
ШАЙБА КПП
272 ₽/шт
22
24341-45G10
ear,4th driven
23
24351-45G10
ear,5th driven
24
09181-20251
Шайба (T:1.0)
172 ₽/шт
25
09181-22223
SHIM(22X34X1)
194 ₽/шт
26
09160-27008
Шайба
238 ₽/шт
27
09262-25125
Подшипник
3 069 ₽/шт
28
09283-25106
Seal,oil,25x38x
29
09300-22008
Втулка
791 ₽/шт
30
09380-27006
КЛИПС
187 ₽/шт
31
09262-20106
Подшипник B1 20X42X12
1 190 ₽/шт
32
24741-05G00
Retainer,cntr s
33
09126-06011
SCREW,6X12
81 ₽/шт
34
27511-07G00
Sprocket,engine
35
27512-07G00
Plate,engine sp
36
27600-43B20-096
Chain assy,rk52
37
27620-43B20
Joint set,chain
38
09111-06039
БОЛТ
81 ₽/шт
39
26264-45G00
Retainer,kick i
40
09180-20059
SPACER(20X26X14)
3 750 ₽/шт
41
02122-0616B
Болт
85 ₽/шт
