Главная Каталог товаров Triumph EPC 2006 Triumph DAYTONA 675 up to VIN 381274 Triumph 2006 (VIN: SMTD03NS, SMTTMD20) Transmission Eng No 330118

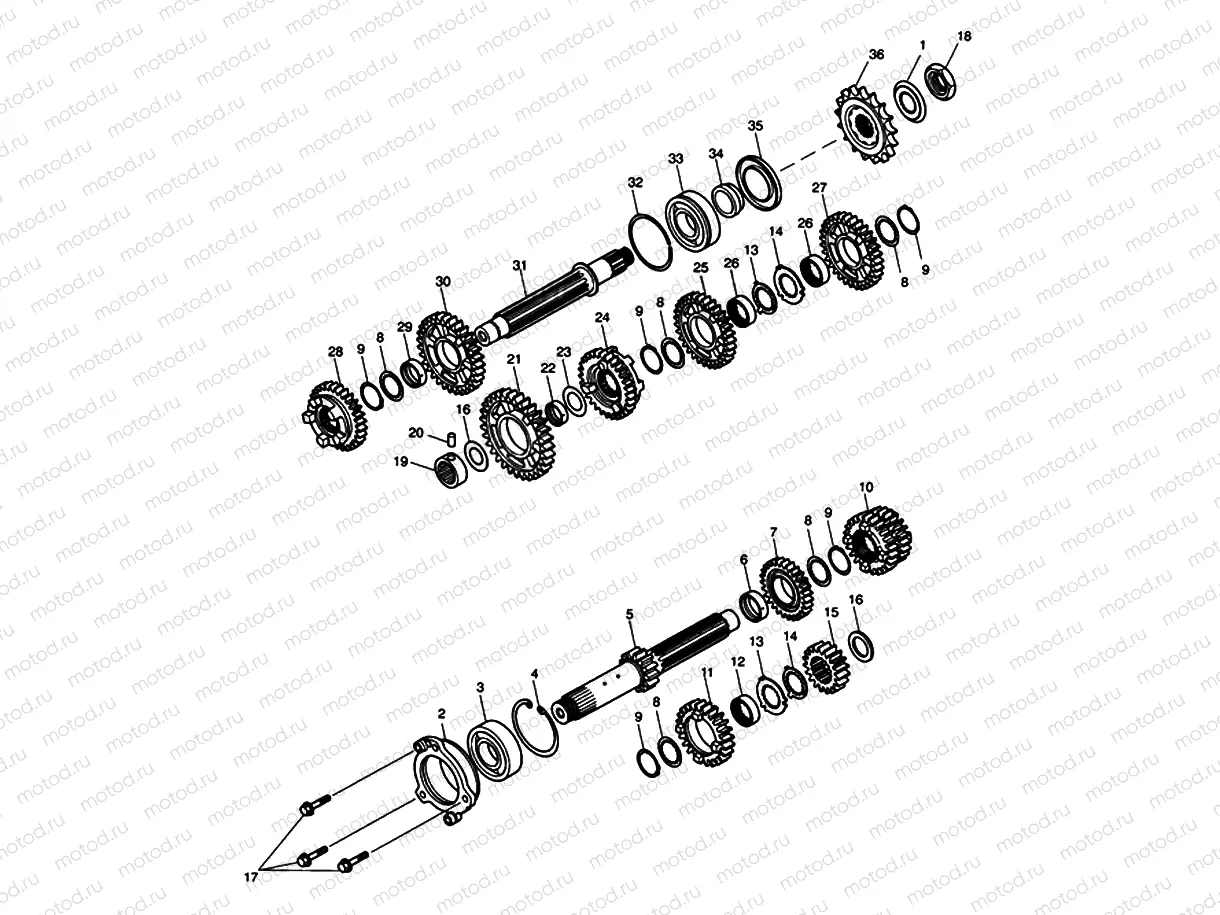

Transmission Eng No 330118

Transmission Eng No 330118
Например: T1180328
1
T1180328
Washer, Tab, Sprocket
2
T1180350
Input Shaft Bearing Carrier
3
T3800067
Bearing 6305
4
T3500056
Circlip, Int Dia 62
5
T1180351
Shaft, Gearbox, Input
6
T1180354
Bush, 28 x 31 x 11.2, Input 5t
7
T1180355
Gear, Input 5TH ,21T
8
T1180331
Washer, Splined, 28 x 34 x 1.5
5 шт. в узле
9
T3500058
Circlip, 28mm
5 шт. в узле
10
T1180353
Gear, Input, 3rd/4th, 23T/20T
11
T1180356
Gear, Input 6th, 22T
12
T1180357
Collar, Splined, 18x11.5, Inpu
13
T1180347
Rondelle (Splined, 28mm)
2 шт. в узле
14
T1180348
Rondelle (Lock)
2 шт. в узле
15
T1180352
Gear, Input, 2nd, 21T
16
T1180334
Rondelle (Thrust, 20mm)
2 шт. в узле
17
T3205065
Bolt, HHF, Lghtd, M6 x 20, Enc
3 шт. в узле
18
T1180183
Nut, M20 x 1.5, 6 Deep
19
T3800068
Bearing, Needle Roller, Dowel
20
T3000032
Dowel, Dia 6 x 10.8
21
T1180361
Gear, Output 1st, 34T
22
T1180359
Bush, 22 x 25 x 11, Output 1st
23
T1180358
Rondelle (Thrust 22mm)
24
T1180365
Gear, Output 5th, 26T
25
T1180364
Gear, Output 4th, 27T
26
T1180368
Collar, Spline, 28 x 9, Output
2 шт. в узле
27
T1180363
Gear Output 3rd, 36T
28
T1180366
Gear, Output 6th, 25T
29
T1180367
Bush, 28 x 31 x 8.4, Output, 2
30
T1180362
Gear, Output 2nd, 39T
31
T1180360
Shaft, Gearbox, Output
32
T3800094
Ring Bearing Retainer
33
T3800066
Bearing 6305, High Duty
34
T1180369
Spacer, Sprocket
35
T3600113
Seal, Oil 35 x 62 x 5
36
T1181620
Sprocket, Output, 16T
