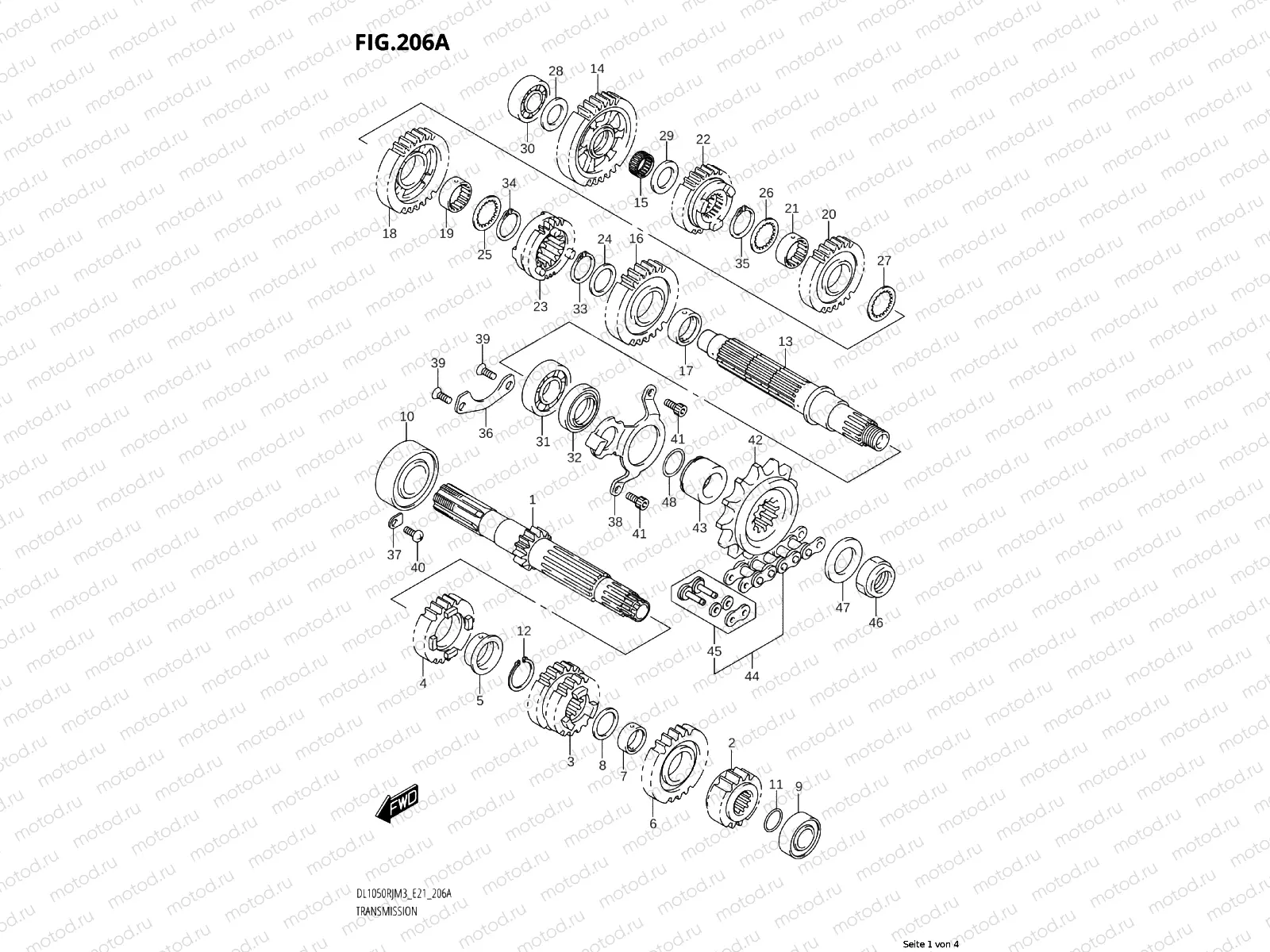

TRANSMISSION

TRANSMISSION
Например: 24221-02F01
2
24221-02F01
GEAR,2ND DRIVE(NT:15)
5 943 ₽/шт
4
24251-02F11
GEAR,5TH DRIVE(NT:23)
8 485 ₽/шт
5
24252-02F10
BUSH,5TH DRIVE GEAR
1 947 ₽/шт
7
24262-02F00
BUSH,6TH DRIVE GEAR
1 415 ₽/шт
8
09181-22167
SHIM,22X30X1
194 ₽/шт
9
09262-20139
Подшипник
1 938 ₽/шт
10
09262-25073
ПОДШИПНИК КАЧЕНИЯ
1 550 ₽/шт
11
09280-17004
O RING(D:1.9,ID:16.6)
1 840 ₽/шт
12
09380-27001
CIRCLIP
1 170 ₽/шт
14
24311-02F10
Gear,1st driven
15
09263-22068
BEARING(22X26X11)
590 ₽/шт
17
24322-02F01
BUSH,2ND DRIVEN GEAR
1 079 ₽/шт
19
24332-17E20
BUSH,3RD DRIVEN GEAR
2 295 ₽/шт
21
24332-17E20
BUSH,3RD DRIVEN GEAR
2 295 ₽/шт
22
24351-02F20
GEAR,5TH DRIVEN
8 641 ₽/шт
24
09160-27008
Шайба
238 ₽/шт
25
24333-02F00
ШАЙБА КПП
272 ₽/шт
26
24333-02F00
ШАЙБА КПП
272 ₽/шт
27
24333-02F10
WASHER,3RD & 4TH DRIVEN GEAR
387 ₽/шт
28
09181-20251
Шайба (T:1.0)
172 ₽/шт
29
09181-22223
SHIM(22X34X1)
194 ₽/шт
30
09262-20082
ПОДШИПНИК
1 535 ₽/шт
32
09283-38028
SEAL,OIL(38X52X8)
2 040 ₽/шт
33
09380-27001
CIRCLIP
1 170 ₽/шт
34
09380-27001
CIRCLIP
1 170 ₽/шт
35
09380-27001
CIRCLIP
1 170 ₽/шт
36
24741-06G00
RETAINER,DRIVE SHAFT BEARING
399 ₽/шт
37
24741-21A00
RETAINER
170 ₽/шт
38
24751-06G00
RETAINER,DRIVE SHAFT OIL SEAL
751 ₽/шт
39
09126-06011
SCREW,6X12
81 ₽/шт
40
02112-0612B
Болт
85 ₽/шт
40
02112-0612B
Болт
85 ₽/шт
41
07130-0612A
Болт
102 ₽/шт
42
27511-20A21
Sprocket,engine
