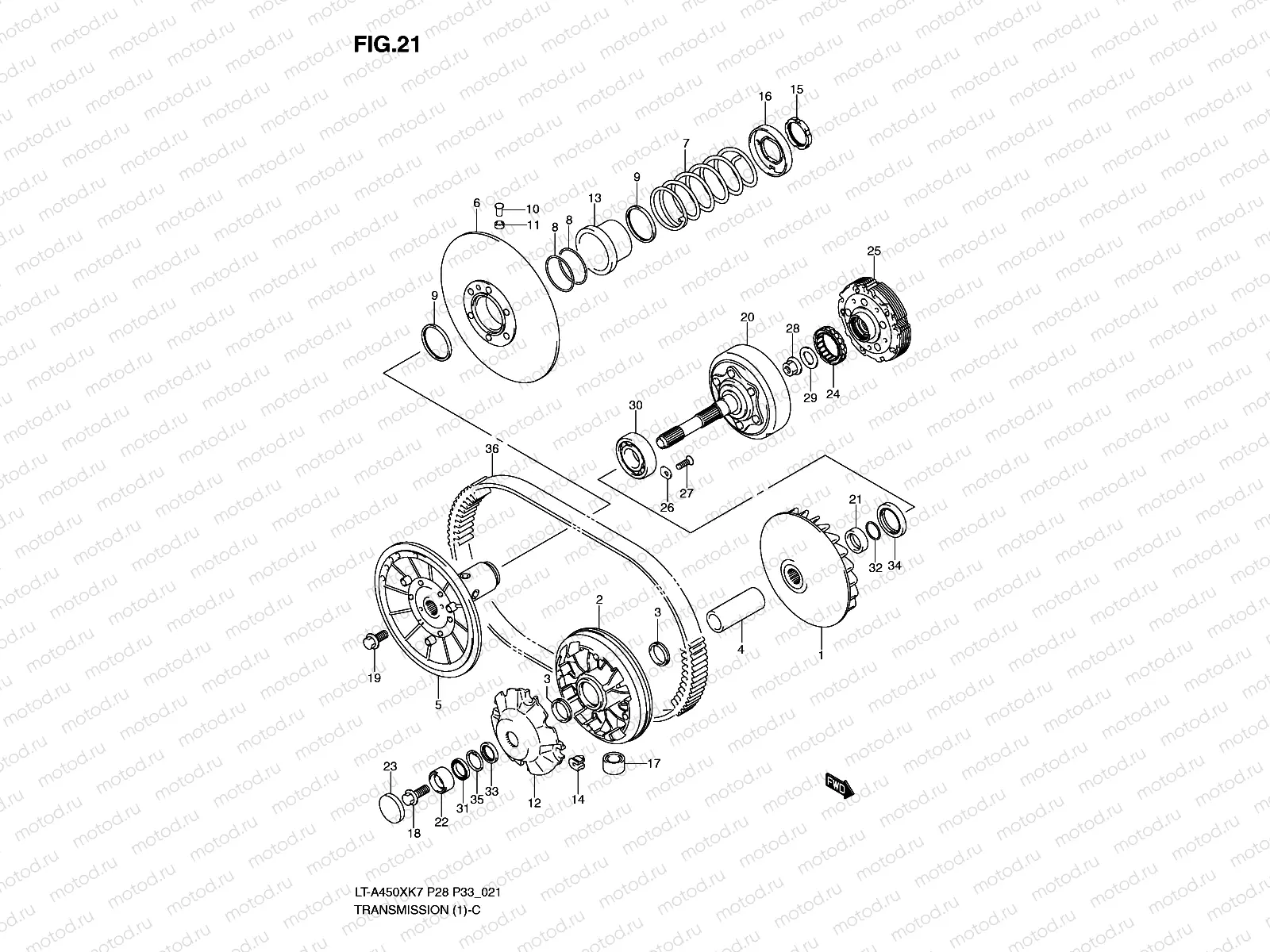

TRANSMISSION (1)(MODEL K7/K8/K9)

TRANSMISSION (1)(MODEL K7/K8/K9)
Например: 21110-11H00
1
21110-11H00
Face,fixed driv
2
21120-11H00
Face,movable dr
3
21124-15F00
SEAL,MOVABLE DRIVE FACE OIL
598 ₽/шт
4
21125-11H00
Entretoise
5
21210-11H00
Face,fixed driv
6
21240-11H00
Face,movable dr
7
21243-38F01
Spring,movable
8
21245-38F00
O-ring,movable
9
21247-38F00
Seal,movable dr
10
21248-15F01
PIN,MOVABLE DRIVEN
224 ₽/шт
11
21249-15F00
SPACER,MOVABLE DRIVEN PIN
262 ₽/шт
12
21431-11H00
Plate,movable d
13
21471-38F01
Sheet,movable d
14
21481-14F00
Слайдер
339 ₽/шт
15
21518-38F00
Nut,driven pull
16
21519-38F00
Holder,movable
17
21650-31G00
Roller,movable
18
09103-12028
BOLT,12X30
289 ₽/шт
19
09103-12049
Vis
20
21100-11H00
ousing,clutch
21
21102-31G00
Прокладка вала
1 496 ₽/шт
22
21106-31G10
Spacer,clutch h
23
21107-31G00
Cap,v-belt bear
24
21273-44D00
Clutch,pri driv
25
21500-11H00
Clutch assy,sho
26
24741-20A00
RETAINER,COUNTER BEARING,R
170 ₽/шт
27
09126-06011
SCREW,6X12
81 ₽/шт
28
09159-18023
Nut
29
09164-18004
Rondelle
30
09262-25073
ПОДШИПНИК КАЧЕНИЯ
1 550 ₽/шт
31
09262-35075
Bearing,35x47x7
32
09280-25004
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
162 ₽/шт
33
09283-35051
Seal,clutch hsg
34
09283-38025
Seal,clutch hou
35
08331-41479
CIRCLIP
272 ₽/шт
36
27601-11H00
Courroie
