Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA CX 500 HONDA CX500ED CX500 1978 HONDA (VIN: CX500) TRANSMISSION

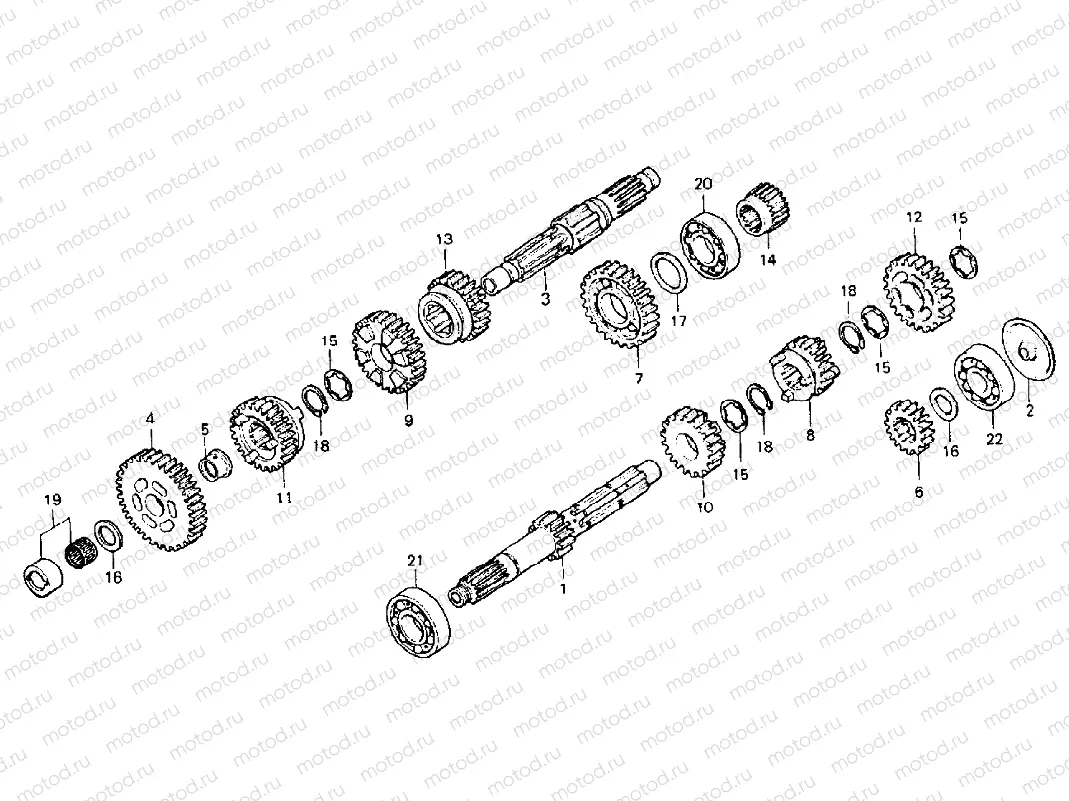

TRANSMISSION

TRANSMISSION
Например: 23211-415-010
1
23211-415-010
MAINSHAFT COMP.
2
23219-415-000
PLATE,OIL GUIDE
3
23220-415-000
CT/SHAFT TRANS
4
23421-413-000
GEAR FIRST
5
23422-415-000
(NO NAME)
6
23431-413-000
GEARM/SHAFT 2ND
7
23441-413-000
GEARC-2 (37J)
8
23451-413-000
GEARM/SHAFT 3RD ** NLA***
9
23461-413-000
GEARCT/SHAFT 3RD
10
23471-415-000
GEAR M/SHAFT 4TH
11
22349-141-5000
(NO NAME)
12
23491-415-000
GEAR M/SHAFT 5TH
13
23501-449-000
GEARCOUNTERSHAFT
14
23522-415-000
COLLARCOUN SHAFT
15
90451-413-000
Rondelle (25mm)
307 ₽/шт
16
90451-413-000
Rondelle (25mm)
307 ₽/шт
17
90452-413-000
WASHER, THRUST, 20MM
393 ₽/шт
18
90601-300-000
CIRCLIP, 25MM
456 ₽/шт
19
91022-415-008
BEARING, NEEDLE, 20MM
1 988 ₽/шт
20
96100-620-5000
ПОДШИПНИК ВЫЖИМНОЙ
865 ₽/шт
21
96100-630-5100
B/brg rad n/com
1 116 ₽/шт
22
96140-620-4000
Bearing
912 ₽/шт
