Главная Каталог товаров DUCATI EPC 2002 DUCATI Superbike 748 R Single-Seat DUCATI 2002 TIMING BELT » UNCLASSIFIED

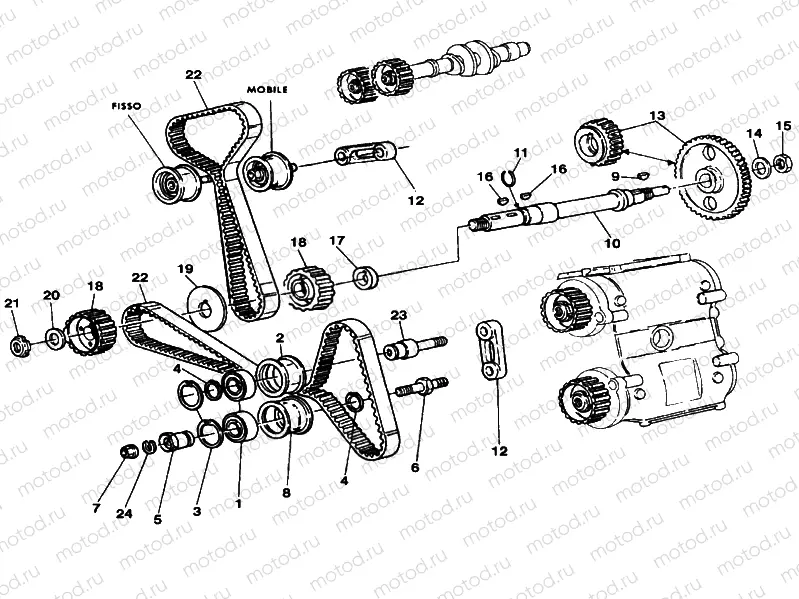

TIMING BELT » UNCLASSIFIED

TIMING BELT » UNCLASSIFIED
Например: 24510361AB
1
24510361AB
VERTICAL BELT OUTER COVER
2
24510341AB
CENTRAL EXTERNAL COVER
3
24510351AB
HORIZONTAL BELT EXTERNAL COVER
4
24510012AB
VERTICAL BELT INTERNAL COVER
5
24510022AB
HORIZONTAL BELT INTERNAL COVER
6
85310021A
pc - Rondelle (spring)
7
68010131A
pc - KEY, WOODRUFF 4X5X10
8
77110518B
pc - Vis
9
77110471A
pc - Vis
10
14710142A
LAYSHAFT TIMING
11
88210031A
5 pc - .SNAP RING
12
71311621A
TENSIONER SPACER
13
17120202B
TIMING GEARS SET
14
85110131A
pc - Rondelle (Lock)
15
75011601A
.NUT M14X1X7
16
68010031A
WOODRUFF KEY 2 MM
16
68010031B
WOODRUFF KEY 4 MM
16
68010031C
WOODRUFF KEY 6A
16
68010031D
WOODRUFF KEY 8A
16
68010031E
WOODRUFF KEY 10 MM
16
68010031F
WOODRUFF KEY 12A
17
71311611A
Entretoise
18
25510161A
PULLEY, TIMING
19
85610651A
PULLEY, TIMING
20
85211731A
0 pc - Rondelle
21
70350062A
ELASTIC-STOP RING NUT
22
73740171B
Timing drive toothed belt
23
45110042A
STRETCHING PIN
24
70250015A
Roulement
25
45110311A
BUSHING
26
735033380
Seeger
27
735001747
.SEEGER RING 17 DIN 471
28
45110021A
ECCENTRIC TENSIONER
29
45110012A
MOVABLE TENSIONER ROLLER PIN
30
74940081A
2 pc - Nut
31
45110321A
BUSHING
