Главная Каталог товаров DUCATI EPC 2001 DUCATI Monster S4 DUCATI 2001 (VIN: ZDMM400A) TIMING BELT » UNCLASSIFIED

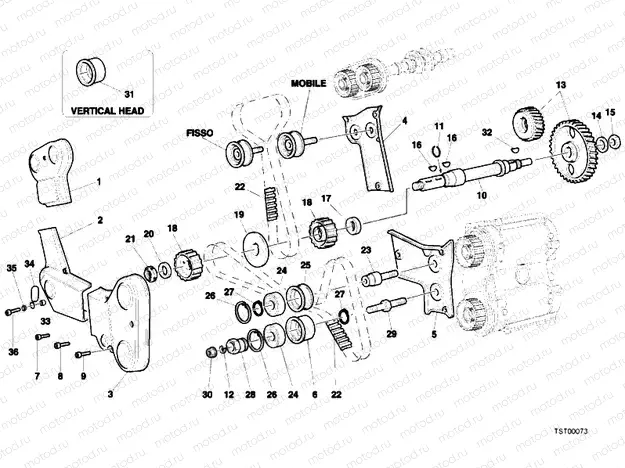

TIMING BELT » UNCLASSIFIED

TIMING BELT » UNCLASSIFIED
Например: 24510391A
1
24510391A
VERTICAL BELT OUTER COVER
2
24510401A
CENTRAL EXTERNAL COVER
3
24510381A
HORIZONTAL BELT EXTERNAL COVER
4
24510182AB
VERTICAL BELT INTERNAL COVER
5
24510192AB
HORIZONTAL BELT INTERNAL COVER
6
45110211A
PULLEY, MOVABLE TENSIONER
7
77110518B
pc - Vis
8
77150658B
Vis
9
77110471A
pc - Vis
10
14710142A
LAYSHAFT TIMING
11
88210031A
5 pc - .SNAP RING
12
85310021A
pc - Rondelle (spring)
13
17120202B
TIMING GEARS SET
14
85110131A
pc - Rondelle (Lock)
15
75011601A
.NUT M14X1X7
16
68010131A
pc - KEY, WOODRUFF 4X5X10
17
71311661A
Entretoise
18
25510041A
PULLEY, TIMING
19
85610022A
.BELT ROLLER SEPARATING WASHER
19
85610491A
.THRUST WASHER 0.3 MM
19
85610501A
.THRUST WASHER 0.2 MM
20
85211731A
0 pc - Rondelle
21
70350062A
ELASTIC-STOP RING NUT
22
73710101B
2 pc - Timing drive toothed belt (Z=93)
23
45110042A
STRETCHING PIN
25
45110101A
PULLEY, FIXED TENSIONER
26
735033380
Seeger
27
735001747
.SEEGER RING 17 DIN 471
28
45110021A
ECCENTRIC TENSIONER
29
45110012A
MOVABLE TENSIONER ROLLER PIN
30
74940081A
2 pc - Nut
31
45110071A
PULLEY, MOVABLE TENSIONER
32
68010131A
pc - KEY, WOODRUFF 4X5X10
33
71312411A
0 pc - Entretoise (6.2X10X7)
34
75810201A
pc - FAIRLEAD
35
85211761A
0 pc - Rondelle
36
77350728B
Vis
