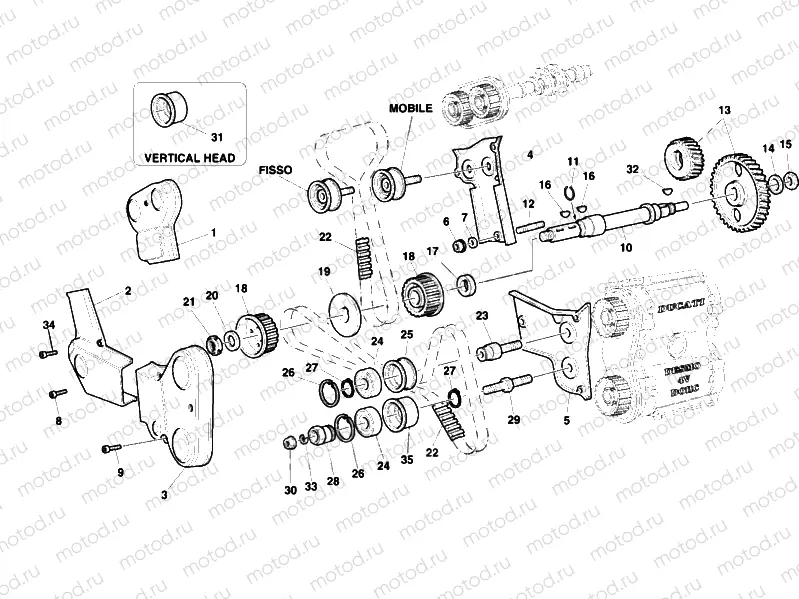

TIMING BELT » UNCLASSIFIED

TIMING BELT » UNCLASSIFIED
Например: 24510211AB
1
24510211AB
VERTICAL BELT OUTER COVER
2
24510221AB
CENTRAL EXTERNAL COVER
3
24510201AB
HORIZONTAL BELT EXTERNAL COVER
4
24510182AB
VERTICAL BELT INTERNAL COVER
5
24510192AB
HORIZONTAL BELT INTERNAL COVER
6
45110211A
PULLEY, MOVABLE TENSIONER
7
77110518B
pc - Vis
8
77150658B
Vis
9
77110471A
pc - Vis
10
14710142A
LAYSHAFT TIMING
11
88210031A
5 pc - .SNAP RING
12
85310021A
pc - Rondelle (spring)
13
17120202B
TIMING GEARS SET
14
85110131A
pc - Rondelle (Lock)
15
75011601A
.NUT M14X1X7
16
68010131A
pc - KEY, WOODRUFF 4X5X10
17
71311661A
Entretoise
18
25510041A
PULLEY, TIMING
19
85610022A
.BELT ROLLER SEPARATING WASHER
19
85610491A
.THRUST WASHER 0.3 MM
19
85610501A
.THRUST WASHER 0.2 MM
20
85211731A
0 pc - Rondelle
21
70350062A
ELASTIC-STOP RING NUT
22
73710101B
2 pc - Timing drive toothed belt (Z=93)
23
45110042A
STRETCHING PIN
24
70250015A
Roulement
25
45110101A
PULLEY, FIXED TENSIONER
26
735033380
Seeger
27
735001747
.SEEGER RING 17 DIN 471
28
45110021A
ECCENTRIC TENSIONER
29
45110012A
MOVABLE TENSIONER ROLLER PIN
30
74940081A
2 pc - Nut
31
45110071A
PULLEY, MOVABLE TENSIONER
32
68010131A
pc - KEY, WOODRUFF 4X5X10
