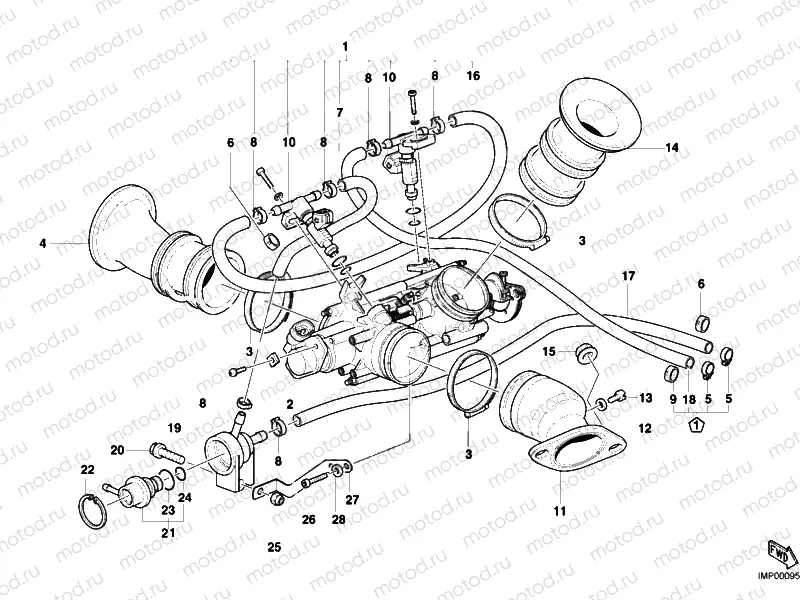

THROTTLE BODY » INTAKE, CARBURETTOR

THROTTLE BODY » INTAKE, CARBURETTOR
Например: 28240301A
1
28240301A
THROTTLE BODY
2
28440021A
THROTTLE VALVE POTENTIOMETER
3
74141801A
Collier (40/60)
4
80110251A
JOINT, AIR CLEANER
5
74140041A
2 pc - Collier
6
74140411A
.CLAMP R
7
59011331A
. PIPE
8
28740241B
pc - Collier (16,8 mm)
9
74140401A
.CLAMP M
10
28040071A
INJECTOR
11
13720011A
DUCT, AIR INLET
12
025070223
10 pc - Rondelle
13
77650328A
Vis (M5x8)
14
80110261A
JOINT, AIR CLEANER
15
74810391A
pc - Nut (M8)
16
59011321A
.PIPE
17
59011821A
. PIPE
18
59011301A
.PIPE
19
83010912A
HOLDER, RECTIFIER
20
77950251A
Vis
21
28340031A
REGULATOR, PRESSURE
22
735033449
Seeger
23
88640221A
pc - O-Ring
24
88640211A
O-Ring
25
74940041A
pc - Nut (SELF-LOCKING M6)
26
77150392BB
Vis
27
82712281A
BRACKET
28
85350031A
Rondelle
