Главная Каталог товаров KTM EPC 2016 KTM Street KTM 2016 Sport Bike KTM 2016 Street RC 390 WHITE / ABS (F5303P1) [EU] KTM TANK, SEAT

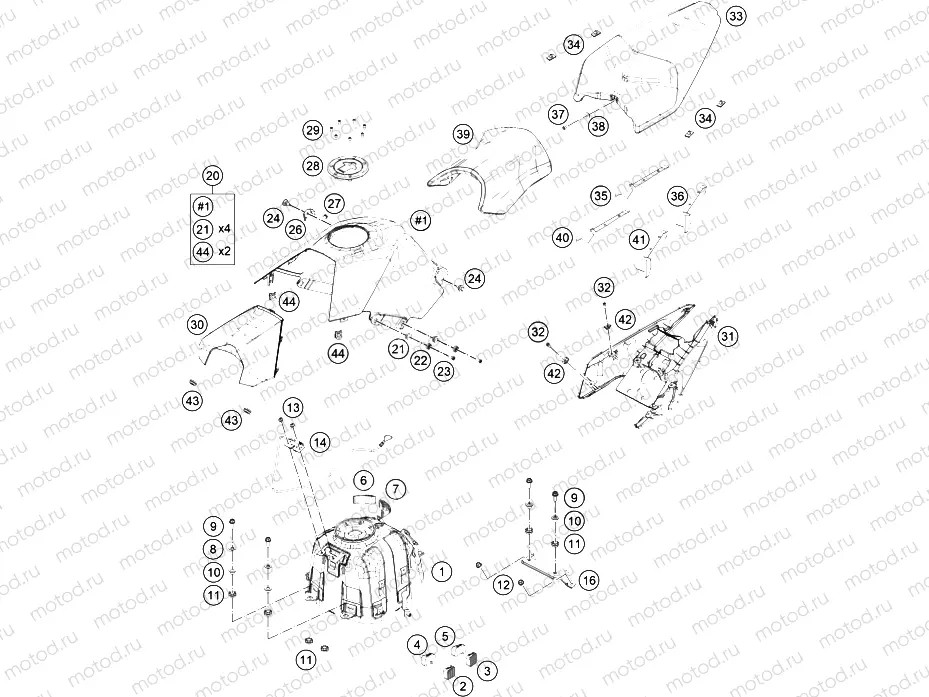

TANK, SEAT

TANK, SEAT

Например: 9350701300030

1

9350701300030

Fuel tank

2

90507011040

TANK PAD FRONT L/S

3

90507011060

TANK PAD REAR L/S

4

90507011050

TANK PAD FRONT R/S

5

90507011070

TANK PAD REAR R/S

6

90507011020

TANK PAD TOP R/S

7

90507011010

TANK PAD TOP L/S

8

90511055001

SLEEVE BATTERY MTG CASE

9

J025080203

Vis

10

90507013005

SLEEVE TANK MOUNTING

11

90507013006

GROMMET TANK MOUNTING

12

J025080123

Vis

13

90508006004

SOCKET HEAD BOLT M6X1X8

14

90508025033

LOCK BATTERY CASE CPL.

16

90503071000

TANK MOUNTING REAR

20

9050804900033

Tank Cover Black

14 250 ₽/шт

21

90507040001

RUBBER SLEEVE

22

90508045000

WASHER GFN

23

90808043001

BOLT SOCKET M6X1XL

24

90107040003

Vis (spec)

26

90508025070

BRACKET CABLE LID LOCK

27

90141023003

Damper

28

93807008000

Fuel tank cap

29

J912050151

AH SCREW M5X14 BLACK

30

9050802500033

Lid Battery Black

1 531 ₽/шт

31

9050801800033

Under Tray Bottom Black

2 893 ₽/шт

32

90508018001

SOCKET HEAD BOLT M5X12

33

90507049000

PILLION SEAT

34

90507047041

SEAT DUMPER SOZIUS SEAT

35

90507056000

PROTECTION SOZIUSSEAT TOP L/S

36

90507055000

PROTECTION SOZIUSSEAT TOP L/S

37

90507047001

AH SCREW M6X12

38

90508016060

COLLAR UNDER TRAY

39

93807040000

Saddle assy

40

90507058000

PROTECTION SOZIUSSEAT DOWN R/S

41

90507057000

PROTECTION SOZIUSSEAT DOWN L/S

42

90108050001

CLIP NUT M5

43

90508024050

GROMMET BATTERY BOX

44

90103097000

Clip nuts
