Главная Каталог товаров KTM EPC 2006 KTM Street KTM 2006 Travel KTM 2006 Street 990 ADVENTURE BLACK ABS (9803F6) [EU] KTM (VIN: VBKVA440) TANK, SEAT

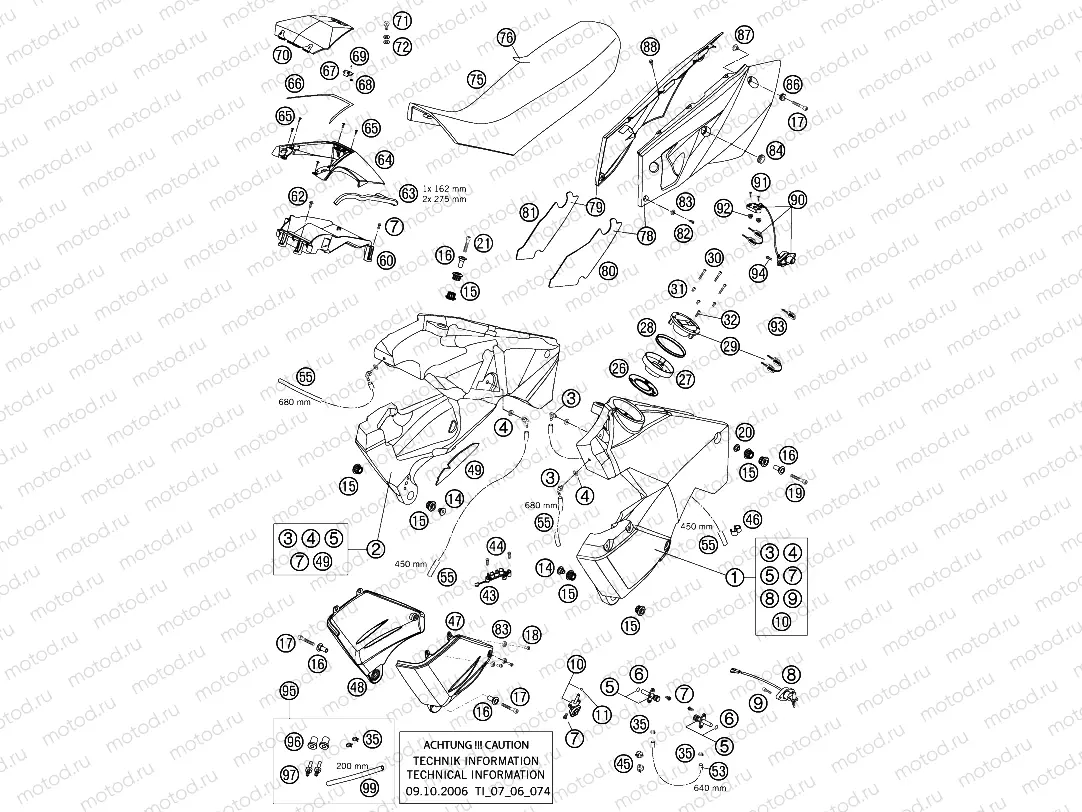

TANK, SEAT

TANK, SEAT

Например: 6010701314451A

1

6010701314451A

Fueltank l/s cpl. anthrazit 06

194 902 ₽/шт

2

6010711313351A

Fuel tank r/s cpl anthraz. 07

205 429 ₽/шт

3

60007024000

CONNECT.PIECE F.OVERFLOW M7 03

4

60007024050

GASKET FOR CONNECTING PIECE 03

5

58507003200

Robinet d'essence

6

0770020130

O-Ring

7

0025060126

Vis

8

58207080000

GAS-LEVEL SENSOR ADV. 2002

9

0912050163

AH SCREW DIN0912-M 5X16

10

50307005000

GAS COCK MIKUNI ON/OFF 2001

11

0770130023

O-RING 13,00X2,30

14

60007062000

BEAR.BUSH.INSIDE L=15,5MM 03

15

60007065000

TANK RUBBER BUSHING 03

16

60007060000

BEARING BUSHING OUTSIDE 03

17

0912080553

AH SCREW DIN912 M8X55

18

0012060123

AH SCREW DIN6912 M6X12

19

0912080503

AH SCREW DIN912 M8X50

20

60007061000

BEARING BUSHING INSIDE 03

21

0912080403

SHCS DIN 912 M8x40

26

60007008051

SEAL. FLANGE F.TANK INSERT 03

27

60007008150

TANK INSERT 05

28

60007008052

SEAL. RING F. TANK INSERT 03

29

60007008000

TANK PLUG CPL. 03

30

0912050303

AH SCREW DIN0912-M 5X30

31

0912050083

Vis

32

0912050123

AH SCREW DIN0912-M 5X12

35

58031005000

Collier (12 mm)

43

60011057000

HOSE HOLDER TRIPLE 03

44

0081050181

SCREW FOR PLASTIC K50X18 T20

45

57013072100

WIRING HOLDER 16MM

46

55011022100

CLAMP D=6/8MM, BLACK

47

60107013050

TANK PROTECTOR L/S 06

48

60107113050

TANK PROTECTOR R/S 06

49

60007095100

THERMAL PROTECT. FOIL TANK 07

53

60007116001

HOSE 6X12 PER METER

55

60007126001

HOSE 5,4X9,4 NBR, METER

60

60007023000

STORAGE BOX BOTTOM PART 03

62

0024060156

Vis

63

58312085100

EDGE PROTECTOR PER METER

64

6000701900051A

Stor.box cent.part anthrac. 06

18 443 ₽/шт

65

0081050121

EJOT PT screw K50x12

66

60007019050

GASKET F.STOR.BOX CENT.PART 03

67

45007040050

QUICK RELEASE LATCHPLATE

68

0021030003

WASHER DIN9021-A 3,2MM

69

0011321000

DUMMY RIVET 3,2X10 ALU

70

6000702000051A

Cover f. storage box anthra.06

13 460 ₽/шт

71

60007020030

QUICK RELEASE PIN WITH RING 03

72

60007020040

PLASTIC WASHER 03

75

6000704020030

Seat black 05

20 248 ₽/шт

76

6000704025030

Seat cover black 05

5 619 ₽/шт

78

6000804100033A

Side cover l/s rear black 04

39 859 ₽/шт

79

6010804200033A

Sidepart ri. back blackmatt 09

48 951 ₽/шт

80

60008041050

THER.PROT.FOIL SI.COVER L/S 03

81

60008042150

THER.PROT.FOIL SI. COV. R/S 07

82

0984060163

Vis (M6x16)

83

60008045000

SPECIAL WASHER D=16,5MM 03

84

58707050050

RUBBER SLEEVE F.SEAT LOCK '99

86

41001052000

Damper (D=12 mm)

87

60012008002

COLLAR BUSHING 8,2X12X20X9 03

88

0017060205

Vis

90

60007050000

SEAT LOCK LC8 ADV. 03

91

0738060301

COU.SUNK SCR. AH ISO7380 M6X30

92

60008013050

DISTANCE BUSH. 7X12X18X3,7 03

93

40011166100

Clé Vierge

94

0081050181

SCREW FOR PLASTIC K50X18 T20

95

60107099000

FUELTANKCONNECTINGSET

96

60107029100

THREAD BUSHING M6X12,7X16 07

97

60107027000

NOZZLE FOR TANK CONNECTION 06

99

60007116200

HOSE 6X12 L=200 MM 05
