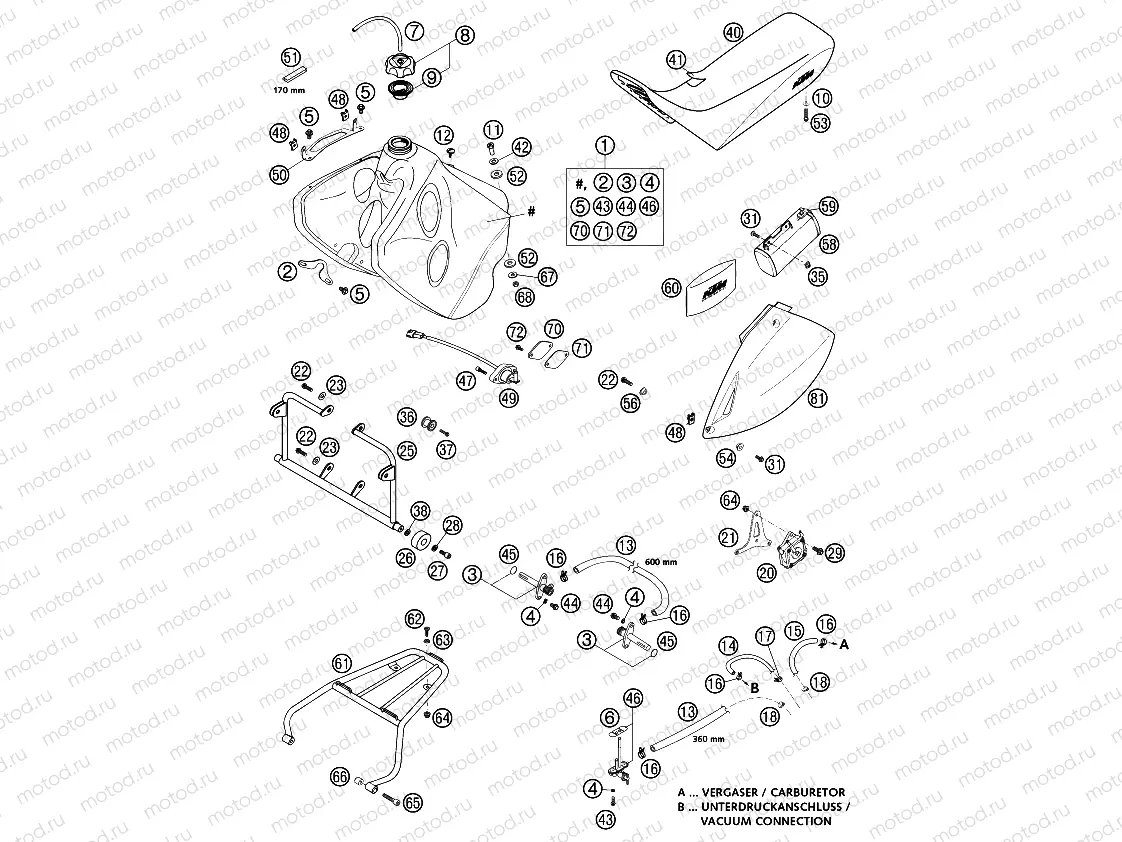

TANK, SEAT

TANK, SEAT

Например: 5820701314490

1

5820701314490

Fuel tank kpl. 30l advent. 02

150 721 ₽/шт

2

58507023000

BRACKET FOR 30 LITER TANK

3

58507003200

Robinet d'essence

4

0603061001

CU-SEAL RING DIN7603-6X10X1

5

0024060106

Vis

6

58307106100

Gasket - fuel tap

7

50335030001

PVC-HOSE 6X9

8

59007008044

Fuel cap (WITH VALVE)

9

59007009000

GASKET FOR FILLER CAP HIGH

10

0125060003

WASHER DIN0125-A 6,4

11

58307014000

SPECIAL NUT M8

12

0900000601200

Seat screw M6x11.5 ISA30

13

54435024001

HOSE ID 7,5 PER METER

14

60007126001

HOSE 5,4X9,4 NBR, METER

15

58507116100

HOSE OG.ECO 1TBSE 7X13MM

16

58007117000

Collier (10 mm)

17

58007017000

YDNAC CLAMP 10101 (10,4MM)

18

58007117200

OETIKER HOSE CLAMP 13,3MM

20

58512087000

FUEL PUMP MIKUNI DF52-601 01

21

58212071100

Bracket for fuel pump adv.

22

0025060206

Vis

23

0021060003

Rondelle

25

5851209200090

Bracket 30lt tank silver '97

22 191 ₽/шт

26

50107015000

TANKROLL 13X36X16

27

0912060163

AH SCREW DIN0912-M 6X16

28

0125060003

WASHER DIN0125-A 6,4

29

0024060156

Vis

31

0025060166

Vis

35

50235033300

SNAP-NUT HOLDER M6 KP142

36

58307113250

TANK BUSHING CPL. 12 X 34 X 25

37

0025060256

Vis

38

12011016000

WASHER 6 X 12 X 3

40

58207040400

SEAT ADVENTURE 2001

41

58207040450

% seat cover sil adventure 01

42

58307019000

WASHER 10,5 X 25 X 1,5

43

0025060166

Vis

44

0025060126

Vis

45

0770020130

O-Ring

46

51107004000

Robinet d'essence

47

0912050163

AH SCREW DIN0912-M 5X16

48

54603048100

clip nut M6

49

58207080000

GAS-LEVEL SENSOR ADV. 2002

50

58211001161

MASK BRACKET R/S ADV. 01

50

58211001160

MASK BRACKET L/S ADV. 01

51

58312085100

EDGE PROTECTOR PER METER

52

51005067100

INSOLATE WASHER 12X28X3

53

0025060356

Vis

54

79608052000

BUSH 6X11X16X5 MM

56

50308053000

BUSH FOR SPOILER 6X11X16X7,5

58

58012058000

TOOL BOX CPL. '92

59

58012058050

RUBBER FOR TOOL BOX '92

60

58329099000

ORIGINAL EQUIPMENT TOOL KIT

61

5841201020030

Baggage carrier black mil lc4

20 709 ₽/шт

62

0991060202

FLAT HEAD DIN7991-M 6X20

63

40006006000

WASHER 6MM

64

56509064100

SELF LOCKING NUT M6 10.9

65

0912060353

AH SCREW DIN0912-M 6X35

66

58412011100

BUSH FOR BAGGAGE CARRIER 2000

67

0021080003

WASHER DIN9021-A 8,4

68

0934080003

Nut

70

58207081000

COVER FOR GAS-LEVEL SENSOR

71

58207081050

GASKET FOR COVER

72

0025050126

Vis

81

5840804100004

Side cover l/s orange lc4'99

3 724 ₽/шт

81

5840804210004

Side cover r/s orange lc4'99

3 724 ₽/шт
