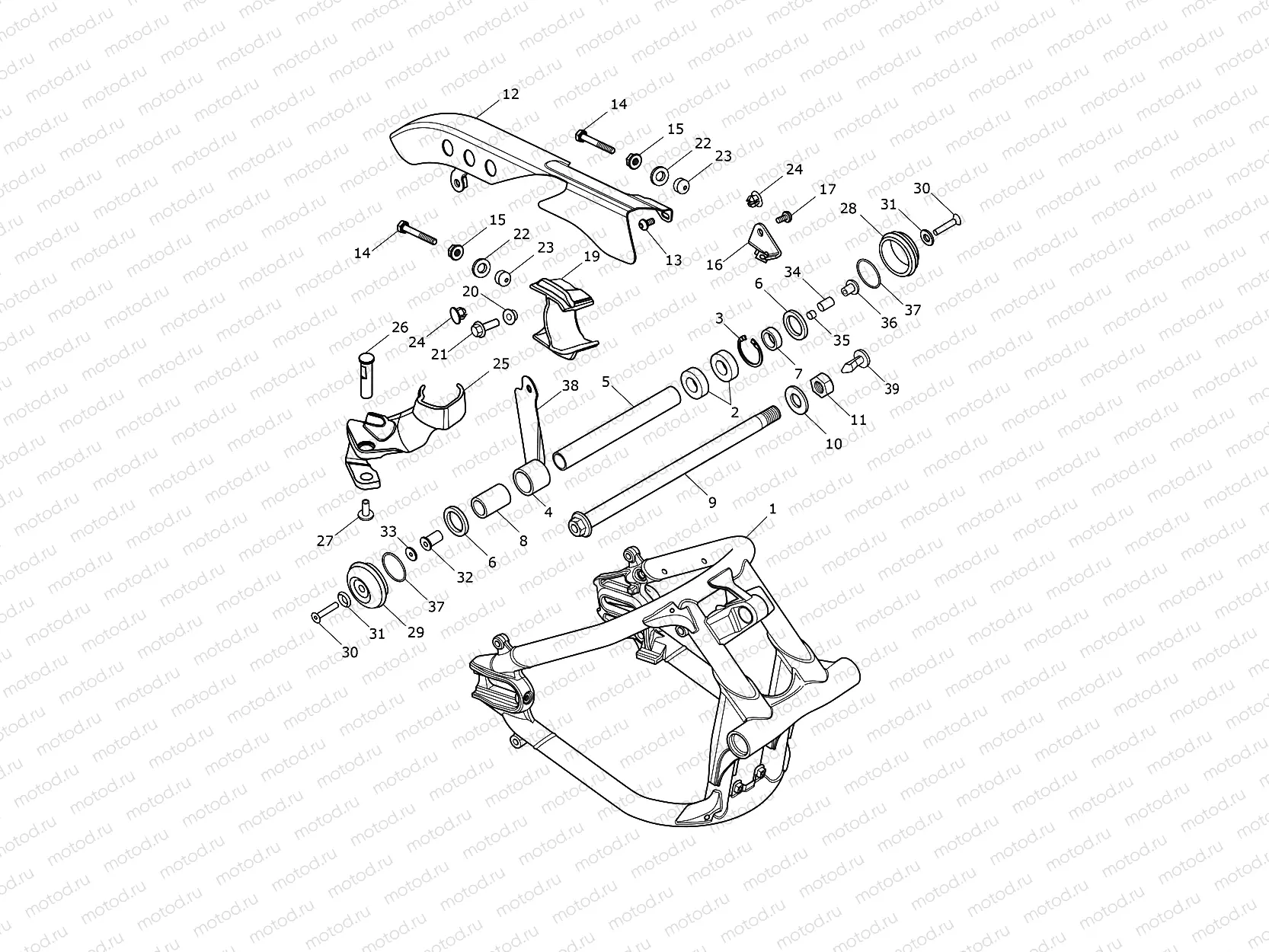

Swingarm Assembly

Swingarm Assembly

Например: T2050426

1

T2050426

Swingarm Assembly

2

T3800081

Bearing, Ball, 17 35 10

2 шт. в узле

3

T3500204

Circlip, Int, 35 x 1.5

4

T3800014

Roller bearing

5

T2054096

Spacer, Internal, 22 x 174.5

6

T3600044

Oil Seal, 35 25 4

2 шт. в узле

7

T2054063

Spacer, 25 x 17 x 8.5

8

T2054344

Sleeve, Ground, 25 x 17 x 37

9

T2012012

Vis

10

T3551240

Washer, M16 x 34 x 3

11

T3350301

Nut, Flanged, M8, Silver

2 шт. в узле

12

T2051950

Chainguard, Pressed, Black

13

T3331042

Screw, Pan/Hd, Tx, M6 x 12, En

4 шт. в узле

14

T3330719

Screw, H/Hd, M8 x 50, Slv

2 шт. в узле

15

T3350301

Nut, Flanged, M8, Silver

2 шт. в узле

16

T2025599

Bracket, Brake Hose, Rear

17

T3331042

Screw, Pan/Hd, Tx, M6 x 12, En

4 шт. в узле

19

T2050378

Chain Rubbing Strip

20

T3010061

Flanged Sleeve, M6 x 9 x 3.25

21

T3205065

Bolt, HHF, Lghtd, M6 x 20, Enc

22

T2050398

Spacer, 16 x 8.4 x 3

2 шт. в узле

23

T3450108

Stand Off Rubber

2 шт. в узле

24

T3700180

Plug, Hole, Plastic

25

T2059371

Chain Rubbing Strip, Rear

25

T2059503

Kit, Chain Rubbing Strip, Rear

26

T2059401

Compression Limiter

26

T2050429

Compression Limiter

27

T3330955

Screw, But/Hd, M5 x 14, Slv, E

28

T2059668

Finisher, Spindle, LH

29

T2059669

Finisher, Spindle, RH

30

T3330678

Screw, Csk, M5 x 30, S/S

2 шт. в узле

32

T3350050

Wellnut, M5

33

T3550286

Rondelle (5.3x18x1.6)

34

T2050376

ube, ID 5.2, OD 7.5, 14 Long

35

T3350199

Nut, M5, Cylindrical

36

T3010706

Flanged Sleeve, 5.2 x 7 x 6.3

37

T3601470

O Ring, ID 32.5 x 3

2 шт. в узле

38

T2059997

Protector, Swingarm

39

T3701170

Plastic Rivet, Screw Type
