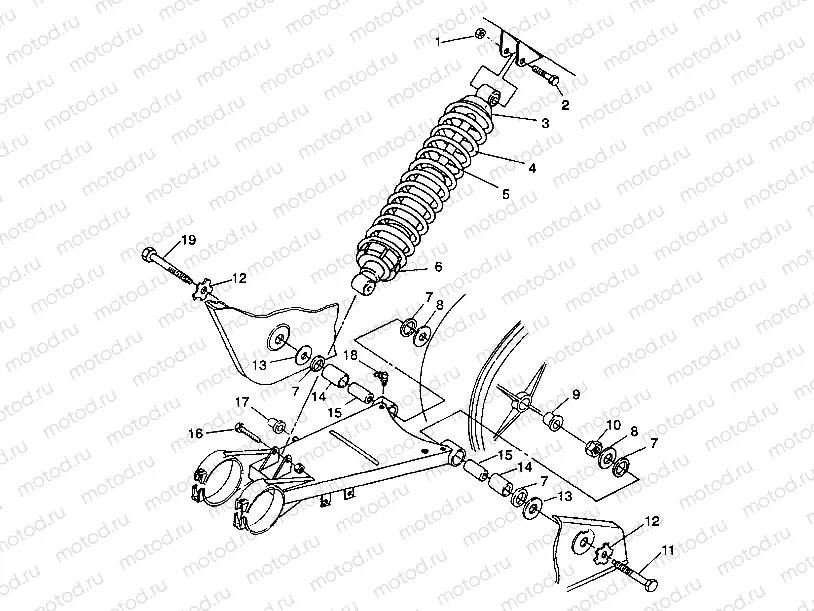

SWING ARM/SHOCK MOUNTING 6X6 250 W938727 (4924092409028A) | SWING ARM/SHOCK MOUNTING 6X6 250 W938727 (4924092409028A)

SWING ARM/SHOCK MOUNTING 6X6 250 W938727 (4924092409028A) | SWING ARM/SHOCK MOUNTING 6X6 250 W938727 (4924092409028A)

Например: 7542439

1

7542439

Nut (SELF-LOCKING)

2

7515415

Vis

3

5220225

RETAINER-TOP

4

7041194-067

SPRING COIL BLK.

5

7041220

SHOCK

6

5210953

RETAINER SPRING

7

3610016

SEAL OIL

8

7555779

WASHER(10)

9

LR--

CALIPER, BRAKE, RH

10

7542601

NUT,CROWN LOCK(10)

11

7512704

BOLT, SHOULDER

12

5220958

PLATE BOLT LOCK

13

7555752

BUSHING, MACH.(10)

14

3576512

BEARING SWINGARM

15

5010255

BUSHING,SWING ARM

16

7515438

Vis

17

5130712

HOLDER

18

7080438

FITTING LUBE.

19

7512703

BOLT SHOULDER
