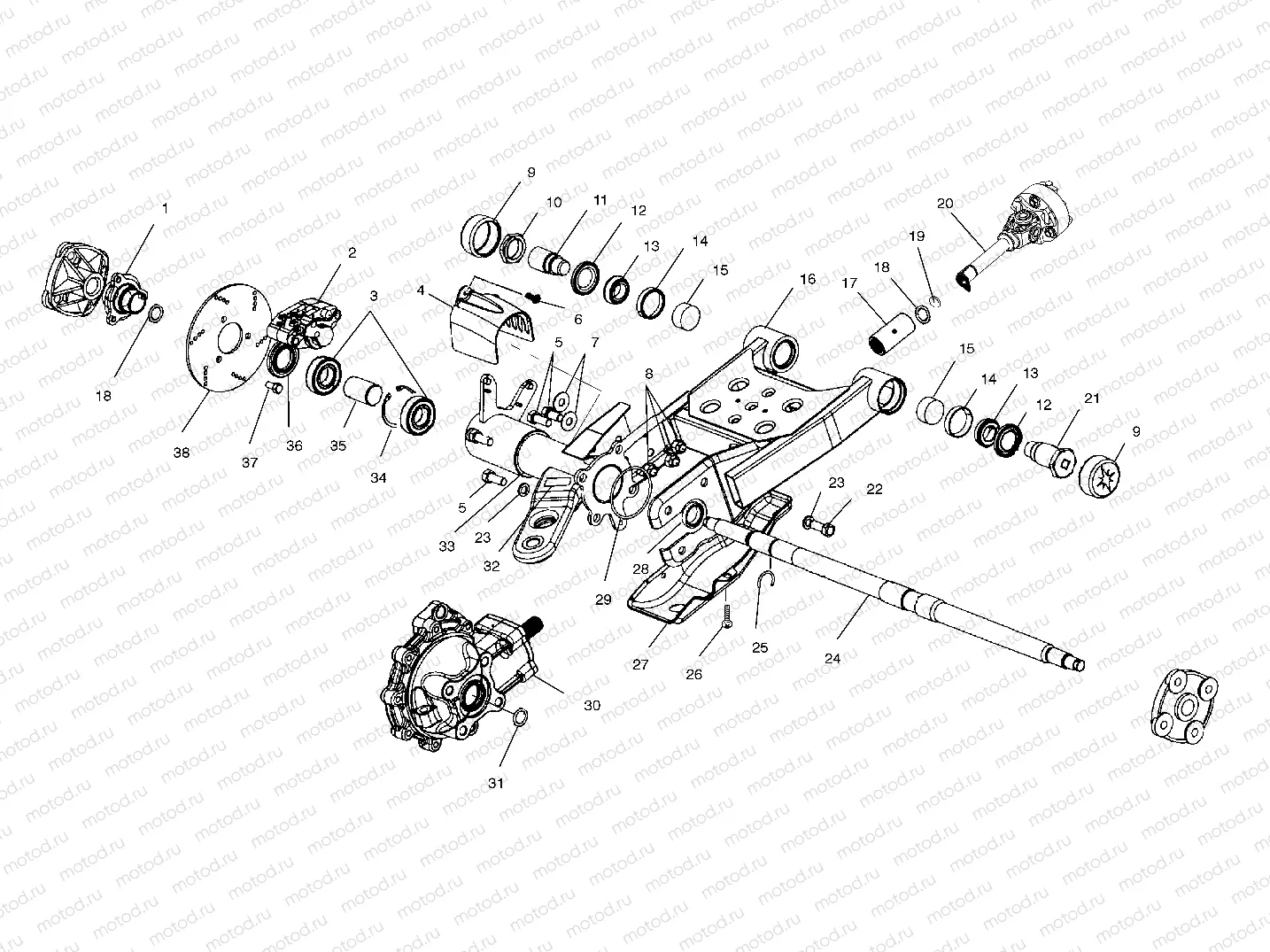

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 XPEDITION 325 (A01CK32AA) Polaris 2001 ATV SWING ARM/REAR GEARCASE MOUNTING - A01CK32AA (4964086408C003) | SWING ARM/REAR GEARCASE MOUNTING - A01CK32AA (4964086408C003)

SWING ARM/REAR GEARCASE MOUNTING - A01CK32AA (4964086408C003) | SWING ARM/REAR GEARCASE MOUNTING - A01CK32AA (4964086408C003)

SWING ARM/REAR GEARCASE MOUNTING - A01CK32AA (4964086408C003) | SWING ARM/REAR GEARCASE MOUNTING - A01CK32AA (4964086408C003)

Например: 5132152

1

5132152

HUB,BRAKE DISC,MACH

2

LR--

CALIPER, BRAKE, RH

3

3513523

BEARING BALL DBL.SEAL

4

5411653

SHIELD-BRAKE LINE,REAR

5

7517604

Vis

6

7512084

Vis

7

7555721

Rondelle

8

7542703

NUT FLEXOC

9

5411532

CAP,SWINGARM PIVOT

10

5131863

NUT JAM SWINGARMPIVOT

11

5131864

PIVOT SWINGARM THREADED

12

3610072

SEAL,SWINGARM PIVOT

13

3554506

BRG TAPER.ROLL.CONE

14

3554507

BRG TAPER ROLL CUP

15

5411602

SEAL-SWINGARM PIVOT

16

1013386-067

"""SWING ARM REAR BLK"""

16

1541577

SWINGARM,ASM. (Incl. 14,15)

17

7080433

FITTING LUBRICATION THREADED(1

17

5132201

COUPLING-PROP SHAFT GREASED

18

5411092

O-RING

19

5812047

PAD REAR SHAFT

20

1380154

SHAFT,PROP,REAR COUPLED

21

5132683

PIVOT-SWINGARM RH

22

7517585

BOLT-1/2-13X1 1/4 HXHD GR5-Z

23

7553201

Rondelle (Lock)

24

5131862

AXLE REAR

25

7710482

RING,RETAINING

26

7517612

Vis

27

5811716

PAD-RUBBER

27

5242851-067

PLATE-SKID,REAR HOUSING,BLK

27

1012881

SKID PLATE,REAR

28

5131930

COLLAR R.AXLE LOCK

29

5411707

O-Ring

31

5411531

O-Ring

32

7072533

"""DECAL HITCH"""

33

1013193-067

AXLE TUBE,WELD,LH,BLK (If built after 3/01/00)

34

7710471

RING RETAINER INT.

35

5132075

SPACER-BEARING

36

3610071

SEAL REAR AXLE

37

7515481

Vis

38

5243678

DISC BRK 7.00 OD .188 THK
