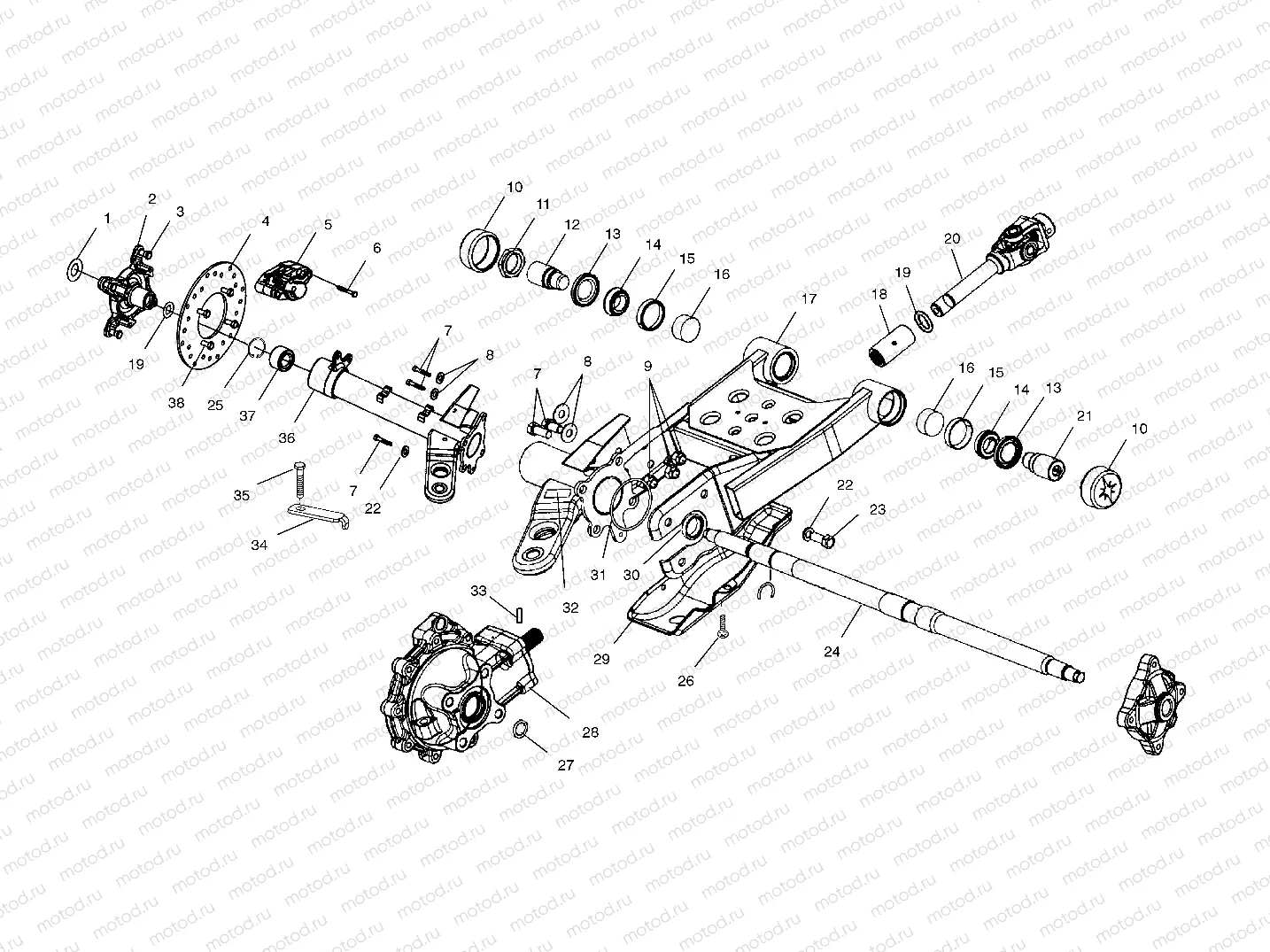

SWING ARM/REAR GEARCASE MOUNTING - A01CD50FB (4964196419D003) | SWING ARM/REAR GEARCASE MOUNTING - A01CD50FB (4964196419D003)

SWING ARM/REAR GEARCASE MOUNTING - A01CD50FB (4964196419D003) | SWING ARM/REAR GEARCASE MOUNTING - A01CD50FB (4964196419D003)

Например: 5412022

1

5412022

O-RING-0.739X0.879X0.070

2

5135207

HUB-WHEEL 4WD MACH

3

7515523

STUD

4

5244882

DISC-BRAKE REAR 8.125X.188

6

7517481

SCREW,SS.

7

7517604

Vis

8

7555721

Rondelle

9

7542703

NUT FLEXOC

10

5411532

CAP,SWINGARM PIVOT

11

5131863

NUT JAM SWINGARMPIVOT

12

5131864

PIVOT SWINGARM THREADED

13

3610072

SEAL,SWINGARM PIVOT

14

3554506

BRG TAPER.ROLL.CONE

15

3554507

BRG TAPER ROLL CUP

16

5411602

SEAL-SWINGARM PIVOT

17

1541577

SWINGARM,ASM. (Incl. 14,15)

18

7080433

FITTING LUBRICATION THREADED(1

18

5132201

COUPLING-PROP SHAFT GREASED

19

5411092

O-RING

20

1380137

PROPSHAFT ASM REAR

21

5132683

PIVOT-SWINGARM RH

22

7553201

Rondelle (Lock)

23

7517585

BOLT-1/2-13X1 1/4 HXHD GR5-Z

24

5132699

AXLE-REAR

25

7710507

RING RET. 2.500 INTERNAL

26

7517612

Vis

27

5411531

O-Ring

28

LR--

CALIPER, BRAKE, RH

29

1012881

SKID PLATE,REAR

29

5811716

PAD-RUBBER

29

5242851-067

PLATE-SKID,REAR HOUSING,BLK

30

5132698

COLLAR-AXLE LOCK

31

5411707

O-Ring

32

7078261

DECAL-HITCH (1225)

33

7661913

PIN SPRING

34

5245050

CLAMP-BRAKE LINE REAR

35

7512017

Vis

36

1013264-067

AXLE TUBE LH BLK VL

37

3514634

BEARING-WHEEL 35X64X37MM

38

7512325

Vis
