Главная Каталог товаров DUCATI EPC 2004 DUCATI Supersport 1000 SS DUCATI 2004 (VIN: ZDM1LABP) SWING ARM » SWING ARM

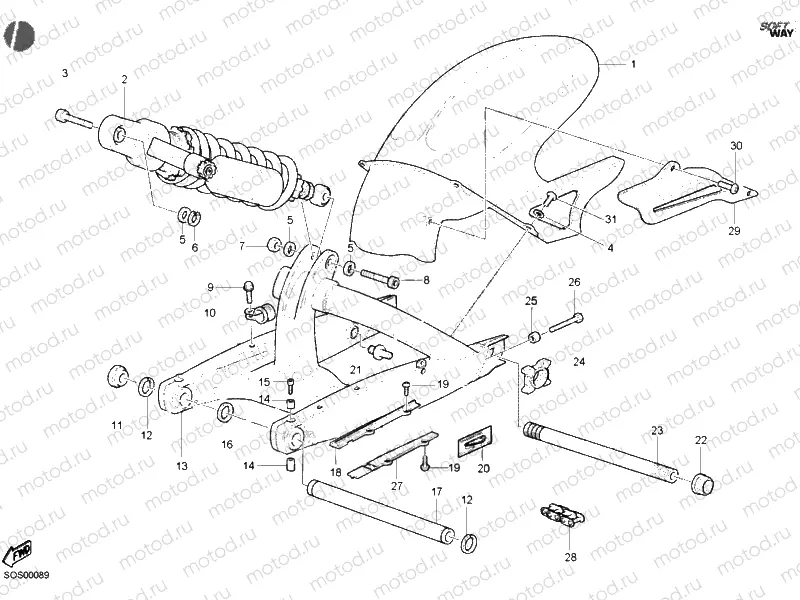

SWING ARM » SWING ARM

SWING ARM » SWING ARM
Например: 56510291A
1
56510291A
Garde-boue arrière
2
36520472A
mortisseur arrière
3
77151598C
2 pc - Vis
4
77911191B
Vis
5
85610642A
Rondelle
6
85350071A
Rondelle (spring)
7
763110N01
ut
8
60N102589
. SCREW 10X55
9
77210551A
pc - Vis (M5x0.8x16)
10
74140621A
Collier
11
87210191A
.PLUG
12
88440071A
pc - . SPRING RING
13
37010311A
SWING ARM
14
80810461A
Collier
15
74810391A
pc - Nut (M8)
16
85210011B
. THRUST WASHER 20.5X36X1.8 MM
16
85210021A
pc - Rondelle (0,2 mm)
16
85210031B
Rondelle
17
36911172A
XLE, REAR SWING ARM
18
44710391A
Guard chain sliding shoe
19
77911191B
Vis
20
43311081G
LABEL, ADJUSTEMENT CHAIN JP
20
43311081H
STICKER, ADJUSTING CHAIN
21
82110332B
LOCATING PIN
22
74811171AA
Nut
23
81910091A
REAR WHEEL SPINDLE (Rear)
24
37310341A
SLIDING SHOE
25
75011251A
.NUT, SPECIAL M8
26
77910571C
Vis
27
44710401A
Guard chain sliding shoe (Lower)
28
67640341A
Chaîne
29
44610041A
CHAIN COVER
30
77910091A
pc - Vis (M5X12)
