Главная Каталог товаров APRILIA Motor EPC DORSODURO 1200 APRILIA Motor 2010 APRILIA DORSODURO 1200 Dorsoduro 1200 APRILIA DORSODURO 1200 (VIN: ZD4TV000, ZD4TV001, ZD4TVA00, ZD4TVA01, ZD4TVC00, ) Swing arm

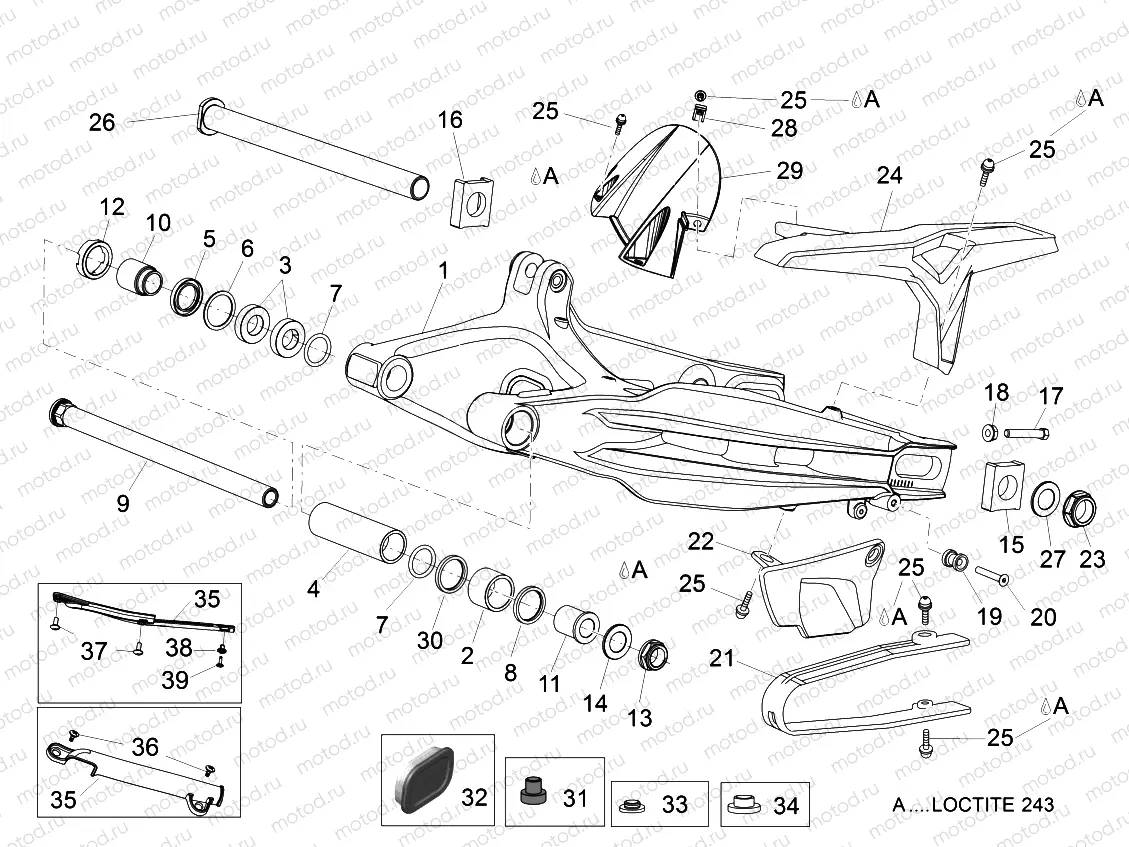

Swing arm

Swing arm
Например: 85623200ZEN
1
85623200ZEN
Rear arm
2
AP8110078
Needle bearing
3
890002
Roulement
4
AP8121570
Internal spacer
5
AP8144006
Gasket ring
6
AP8121204
Seeger
7
AP8144048
pc - O-Ring
8
AP8144005
Gasket ring
9
AP8146520
Rear swing arm pin
10
AP8121200
djustment bush
11
AP8121203
Rear int.sw.arm piv.bush
12
AP8121201
Swing arm ring nut
13
AP8125763
Nut
14
AP8125687
4 pc - Rondelle
15
AP8144443
LH chain guide plate
16
AP8144444
RH chain guide plate
17
AP8152305
Chain tens.adjuster screw
18
2B004511
Nut
19
AP8121890
5 pc - Entretoise
20
1B006381
pc - Vis
21
AP8144168
Guard chain sliding shoe
22
859929
Chain guide plate
23
AP8152324
Nut (M25x1,5)
24
856787
Chain guard
26
B045422
Rear wheel spindle (Rear)
27
AP8152323
Rondelle
28
AP8102375
Clip nuts (M5)
29
859764
Garde-boue arrière
30
890126
Gasket ring
31
AP8144158
2 pc - Rubber spacer
32
860898
Couvrir
33
860899
Couvrir
34
860900
Couvrir
35
B045805
rake hose protection
35
895349
Brake hose protection
36
AP8150500
pc - Vis
37
893132
pc - Vis
38
AP8202058
lastic rivet, black
39
AP8150413
Vis
