Главная Каталог товаров Polaris EPC 2023 Polaris SNOWMOBILE Polaris 2023 PATRIOT BOOST INDY VR1 129 ALL OPTIONS (R01) (S23TKV8MS) Polaris 2023 SNOWMOBILE SUSPENSION | SUSPENSION, REAR - S23TKV8MS (C602226)

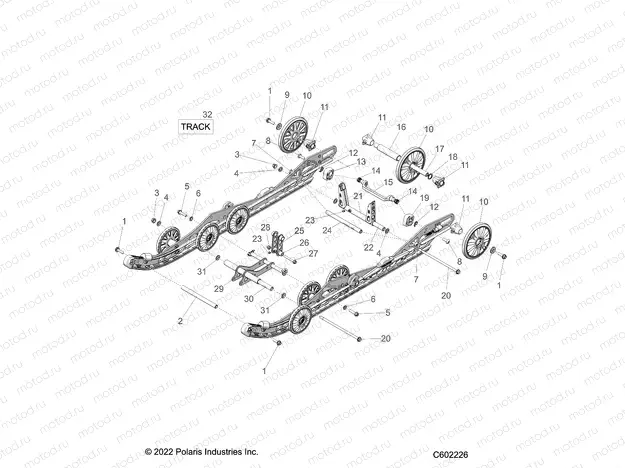

SUSPENSION | SUSPENSION, REAR - S23TKV8MS (C602226)

SUSPENSION | SUSPENSION, REAR - S23TKV8MS (C602226)

Например: 7518957

1

7518957

SCR-M10X1.5X35 HXFL ZOD P30

2

5136572

SFT-M10X1.5IDX17.47ODX220.1 LG

3

7547333

NUT-M10X1.25 FLG NYLOC-OLIVE D

4

7556545

WSHR-10.5X24X1.2446 ZOD

5

7519216

SCR-HXFL-M10X1.5X40 10.9ZODP80

6

7556153

WASHER 3/8 FW

7

7520369

SCR-M10X1.5X35 TX/TRUSS ZODP30

8

7520487

SCR-TXTH-M10X1.5X30 10.9 ZPB

9

7556490

WASHER-SPRING.406X1.25X.125ZOD

10

7710444

RING RETAINING

10

1590459

ASM-WHEEL SPOKE 7.25 6004

10

3515142

BEARING-.7874X1.6535X.4724 NTN

11

5432535

SPACER IDLER

12

5273054

BRKT-DETENT COUPLER

13

5418268

BUMPER-COUPLER ADJ RH

14

7046022

SPRING-COMP COUPLER

15

5144644

SHAFT-COUPLER ADJ

16

5333285

SPACER IDLER LONG

17

5136745

SHAFT-IDLER M10X1.5THDX336 LG

18

7555918

BUSHING

19

5418267

BUMPER-COUPLER ADJ LH

20

7519327

SCR-HXFL-M10X1.25X250 10.9 ZOD

21

1544984-329

WELD-REAR PIVOT ARM HD ECOAT

22

5137418

SHAFT-CROSS RMK

23

7080424

FITTING LUBRICATION

24

5139172

SHAFT-CROSS MACH

25

1544017-329

WELD-SHOCK PIVOT ARM ECOAT

26

5142127

BUSHING-SHOCK PIVOT ARM

27

7519971

SCR-HXFL-M8X1.25X65 8.8 ZOD

28

7547332

NUT-M8X1.25 FLG NYLOC-OLIVE D

29

1544014-329

WELD-H-BRACKET ECOAT

30

5140492

SHAFT-H-BRKT CC AL

31

7556559

WSHR-M10.5X25X2.4 ZPC

32

5418184

TRACK-15X129 1 RIPSAW II R

32

5251274

CLIP-GUIDE CAMOPLAST TRACK

32

5251273

CLIP-FLAT CAMOPLAST TRACK

32

5418185

TRACK-15X129 1.352 COBRA R
