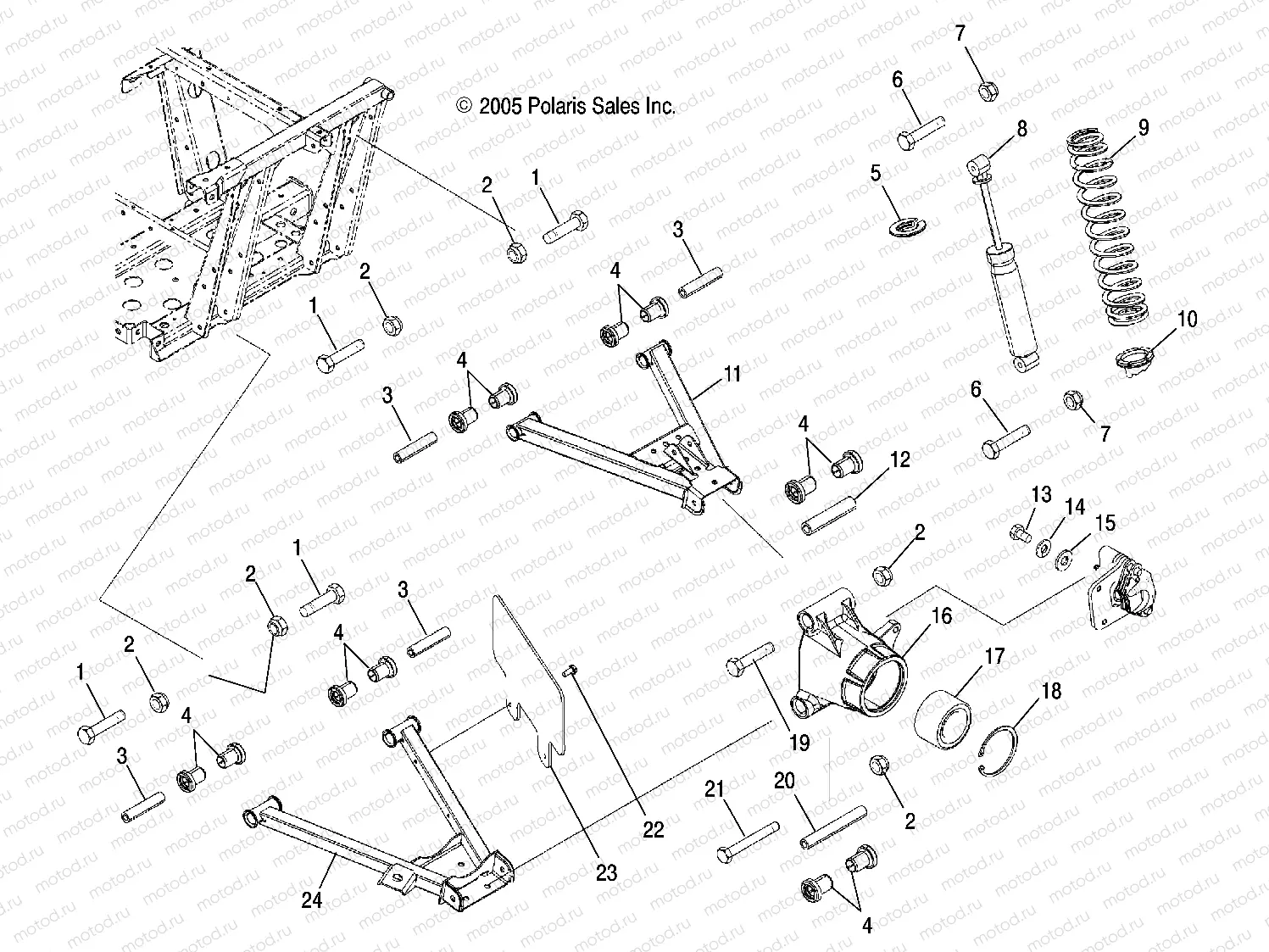

SUSPENSION | SUSPENSION, REAR - R09WH68AC/AG/AH/AL/AR/AZ (4999202219920221C09)

SUSPENSION | SUSPENSION, REAR - R09WH68AC/AG/AH/AL/AR/AZ (4999202219920221C09)
Например: 7519043
1
7519043
SCR-HXFL-M10X1.25X95 10.9 ZOD(
2
7547333
NUT-M10X1.25 FLG NYLOC-OLIVE D
3
5137591
SHAFT-PIVOT 73.96MM ZINC OLIVE
4
5439270
BUSHING-A-ARM-SHORT BLK
5
5251753
RETAINER-SPRING STEEL
6
7518563
BOLT-M10X1.25X60 HXFLG-OLIVE D
8
7043491
SHOCK-REAR 411.5MM EXT
9
7043337-067
SPRING-REAR BLK
9
7043337-067
SPRING-REAR BLK
10
5630551
CAM ADJUST SPRING
11
1016730-067
WELD-CONTROL ARM UPPER BLK
11
1016730-067
WELD-CONTROL ARM UPPER BLK
12
5137592
SHAFT-PIVOT 89.71MM ZINC YEL
13
7512457
Vis
14
7552603
Rondelle (Lock)
15
7556188
WASHER-FL.390X.750X.065-Y
16
5136170
CARRIER-BEARING WHEEL LH(MACH)
16
5136171
CARRIER-BEARING WHEEL RH(MACH)
17
3514635
BEARING-WHEEL 40X74X40MM
18
7710440
RING RETAINING
19
7518566
BOLT-M10X1.25X115 HXFLG-OLIVED
20
5137593
SHAFT-PIVOT 115.11MM ZINC YEL
21
7518562
BOLT-M10X1.25X140 HXFLG-OLV D
22
7512084
Vis
23
5437816-070
SHIELD-CV REAR BLK
24
1016813-067
WELD-CONTROL ARM LWR LH BLK
24
1016813-385
Arm, Control, Lower, Silver, LH [AC]
24
1016814-385
WELD-CONTROL ARM LWR RH CD SLV
24
1016814-067
WELD-CONTROL ARM LWR RH BLK
