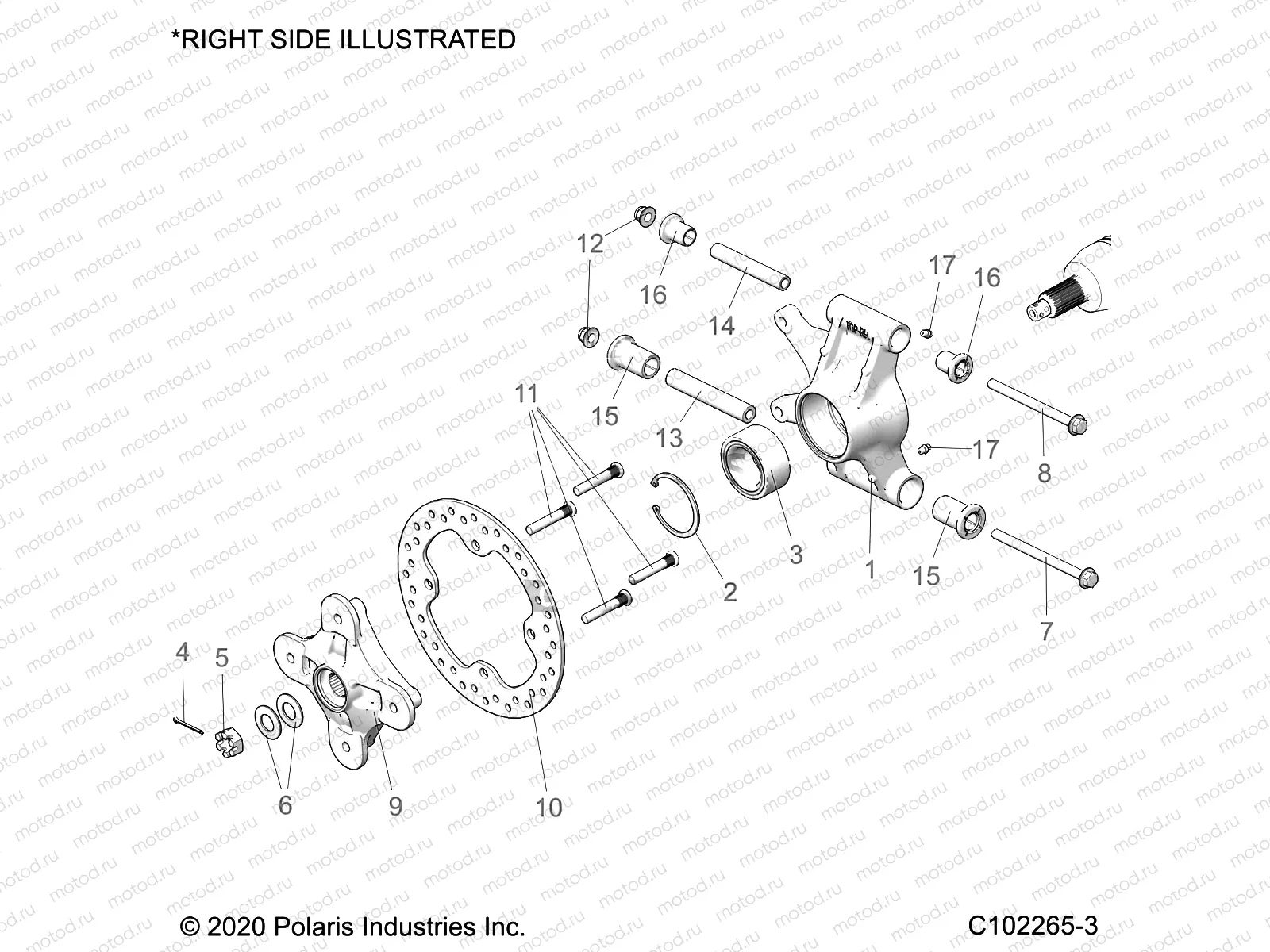

SUSPENSION | SUSPENSION, REAR HUBS, CARRIER and BRAKE DISC - A22SVA85A3 (C102265-3)

SUSPENSION | SUSPENSION, REAR HUBS, CARRIER and BRAKE DISC - A22SVA85A3 (C102265-3)

Например: 5143608

1

5143608

CARRIER-BEARING MACH RH

1

5143607

CARRIER-BEARING MACH LH

2

7710440

RING RETAINING

3

3514699

BEARING-BALL SEALED 44X72X33.1

4

7661404

PIN COTTER

5

7547406

NUT-CASTLE M18X1.5X13

6

7555796

WASHER CONE

7

7518467

BOLT-M10X1.5X140 HXHD FLG

8

7518675

BOLT-M10X1.5X130 HX HD FLG

9

5136946

HUB-WHEEL MACH

10

5250205

DISC-BRAKE 246MM OD 4.75

11

7521329

STUD-WHEEL M10X1.25X58-10.9

12

7547313

NUT-M10X1.5 HXFLG NYLON INS

13

5136473

SHAFT-A-ARM LCA 0.75 OD

14

5137590

SHAFT-PIVOT 104.9MM ZINC YEL

15

5437651

BUSHING-LCA 0.75 ID

16

1543367

ASM-BUSHING HD W/SEAL 5.23 FLG

16

5439874

BUSHING-STANDARD ORV

17

7080424

FITTING LUBRICATION
