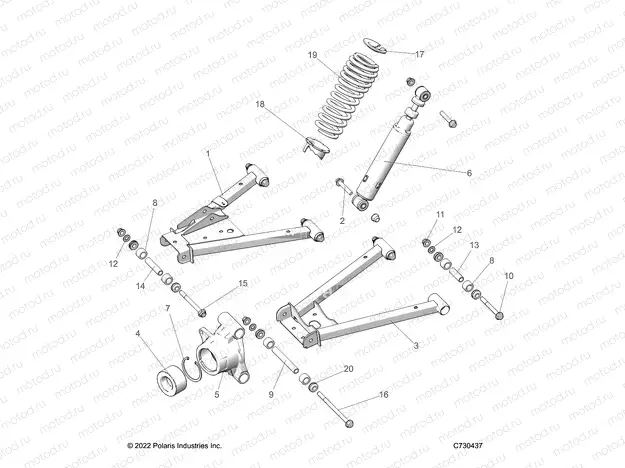

SUSPENSION | SUSPENSION, REAR - D22M2A57B4/G57B4 (C730437)

SUSPENSION | SUSPENSION, REAR - D22M2A57B4/G57B4 (C730437)

Например: 1026236-458

1

1026236-458

WELD-CONTROL ARM UPPER RH M.BK

1

1026235-458

WELD-CONTROL ARM UPPER LH M.BK

2

7518563

BOLT-M10X1.25X60 HXFLG-OLIVE D

3

1026237-458

WELD-CONTROL ARM LWR M.BK

4

3515087

BEARING-WHEEL 40X74X40MM

5

5143798

CARRIER-BEARING WHEEL LH(MACH)

5

5143799

CARRIER-BEARING WHEEL RH(MACH)

6

7045642

SHOCK-REAR

7

7710440

RING RETAINING

8

1543367

ASM-BUSHING HD W/SEAL 5.23 FLG

8

5452233

BUSHING-STANDARD SUSP M10

9

5144098

SHAFT-PIVOT LONG M10

10

7519043

SCR-HXFL-M10X1.25X95 10.9 ZOD(

11

7547333

NUT-M10X1.25 FLG NYLOC-OLIVE D

12

7556153

WASHER 3/8 FW

13

5139966

SHAFT-PIVOT SHORT M10

14

5139990

SHAFT-PIVOT SHORT M10

15

7519365

SCR-HXFL-M10X1.25X115 10.9 ZOD

16

7519042

SCR-HXFL-M10X1.25X165 10.9 ZOD

17

5251753

RETAINER-SPRING STEEL

18

5253768

CAM-ADJUSTING SPRING STEEL

19

7045799-458

SPRING-REAR MATTE BLK

20

1543611

ASM-PIVOT CAP SEALED M10
