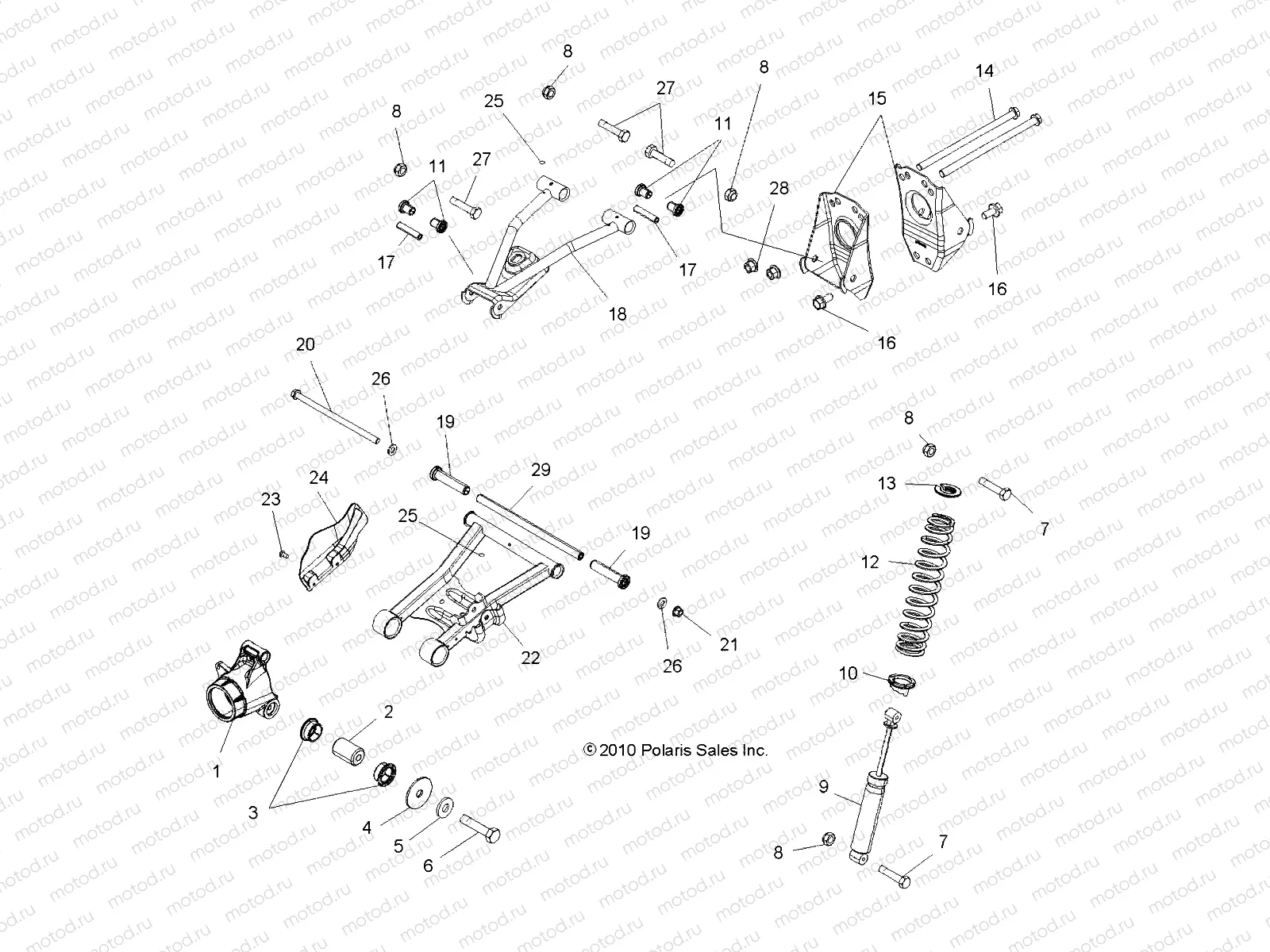

SUSPENSION | SUSPENSION, REAR - A12MN50ET/EX (49ATVSUSPRR11SP5)

SUSPENSION | SUSPENSION, REAR - A12MN50ET/EX (49ATVSUSPRR11SP5)

Например: 5135563

1

5135563

CARRIER-BEARING WHEEL(MACH)

2

5632291

BUSHING-BRNG CARRIER PM 7/16

3

5438902

BUSHING-CONTROL LOWER BLK

4

7555740

Rondelle

5

7552614

Rondelle (Lock)

6

7517873

BOLT-7/16-14 UNC-2AX2.75 GR5

7

7515415

Vis

9

7043100

SHOCK-RR IRS

10

5253768

CAM-ADJUSTING SPRING STEEL

11

5439270

BUSHING-A-ARM-SHORT BLK

12

7043697-067

SPRING-100# 12.3 FL BLK

13

5251753

RETAINER-SPRING STEEL

14

7518365

Vis

15

5254267-329

BRKT-CONTROL-ARM PIVOT E-COAT

16

7517632

Vis

17

5020826

SHAFT A-ARM SHORT

18

1017748-067

WELD-UPPER CONTROL ARM RH BLK

18

1017747-067

WELD-UPPER CONTROL ARM LH BLK

19

5436973

BUSHING-A-ARM LONG 102.36MM(10

20

7519065

SCR-3/8-24X12.25 FLG HX GR8-Y

21

7542439

Nut (SELF-LOCKING)

22

1015889-067

WELD-CONTROL LOWER RH BLK

22

1015888-067

WELD-CONTROL LOWER LH BLK

23

7512084

Vis

24

5435009-070

SHIELD-CV REAR BASIC BLK RH

24

5435008-070

SHIELD-CV REAR BASIC BLK LH

25

7080433

FITTING LUBRICATION THREADED(1

26

7556153

WASHER 3/8 FW

27

7515472

Vis

28

7547180

NUT-FLANGED 3/8-16 NYLON-Z (10

29

5137562

TUBE-PIVOT .625ODX.385IDX11.12
