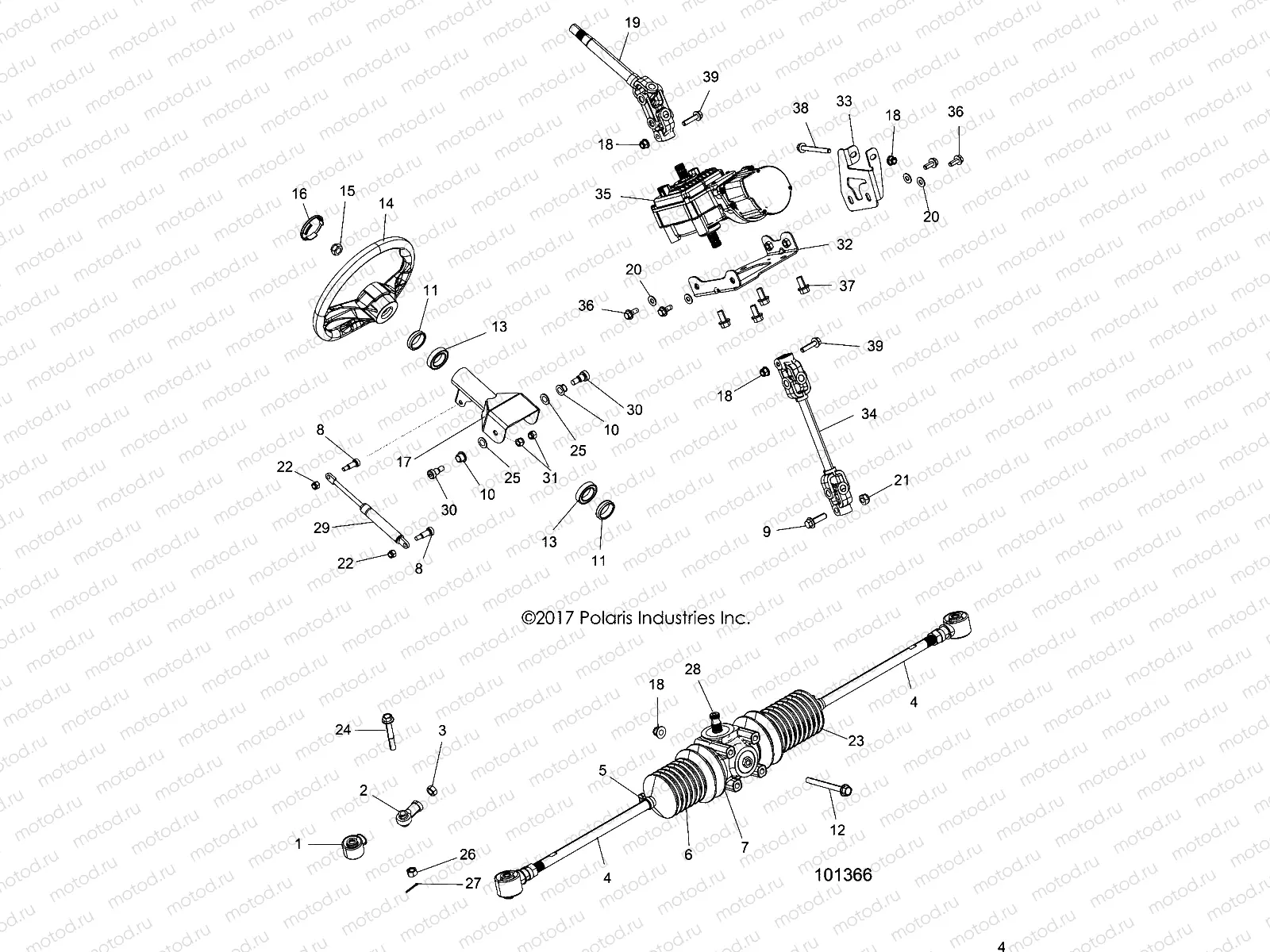

STEERING | STEERING, STEERING ASM. - A19DAE57A4 (101366)

STEERING | STEERING, STEERING ASM. - A19DAE57A4 (101366)

Например: 7061189

2

7061189

ROD-END 10MM M14-1.5LH 54DEG

3

2205058

NUT-JAM M14-1.5 LH THREAD

4

LR--

CALIPER, BRAKE, RH

5

7080978

CLAMP-BOOT SMALL

7

7080979

CLAMP-BOOT LARGE

8

7518786

BOLT-SHOULDER M8-16 M6X1.0-Y

9

7518644

SCR-M10X1.50X35 HX/FL

10

5439154

BUSHING-TILT STEERING

11

7556675

BUSHING-STEERING

12

7519217

SCR-HXFL M8X1.25X80 8.8 ZOD

13

3514686

BEARING-STEERING

14

1823623

WHEEL-STEERING 14

15

7547506

NUT-HEX-M16X2 8 ZC NYL

16

5436536

CAP-STEERING WHEEL

17

1022896-458

ASM-PIVOT TUBE M.BLK

18

7547332

NUT-M8X1.25 FLG NYLOC-OLIVE D

19

1824286

SHAFT-STEERING EPS UPPER

20

7555960

WASHER FLAT

21

7547385

NUT-NY INS M10X1.5 HEX ZINC YW

22

7546703

Nut (SELF-LOCKING)

23

5412012

BOOT-DRIVER SIDE RACK

24

7519854

SCR-HXFL-M10X1.25X75 10.9 ZOD

25

7555919

Rondelle

26

7547333

NUT-M10X1.25 FLG NYLOC-OLIVE D

27

7661203

PIN COTTER

28

1824540

ASM-GEARBOX STEERING 17T

29

7044699

ASM-SHOCK TILT STEERING SHORT

30

7519355

SCR-SHS-M10X1.5-M12X16 RIE

31

7547442

NUT-HH M10X1.5 NYLOC ZOD

32

1020912-329

WELD-BRKT BASE EPS E-COAT

33

5260034-329

BRKT-EPS LH E-COAT

34

1824549

SHAFT-STEERING EPS LOWER 17T

35

2414684

ASM-POWER STEERING G2 ACE

36

7518450

BOLT-M8X20-1.25 HX HD FLG

37

7518558

BOLT-M10X1.25X20 HXFLG-OLV D

38

7518955

SCR-M8X1.25X75 8.8 HX/FL ZOD

39

7519052

SCREW-HXFL M8X1.25X35 ZOD
