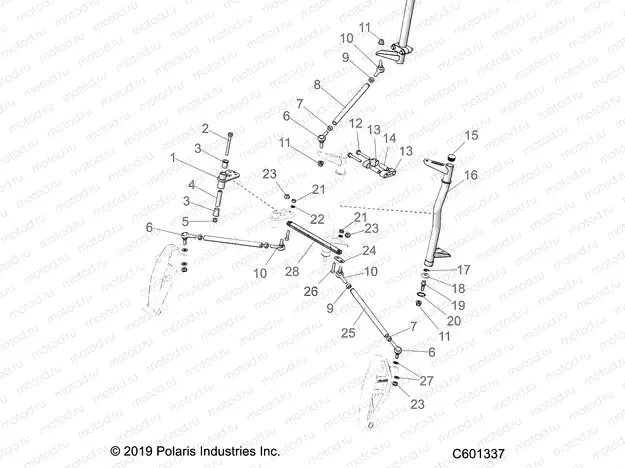

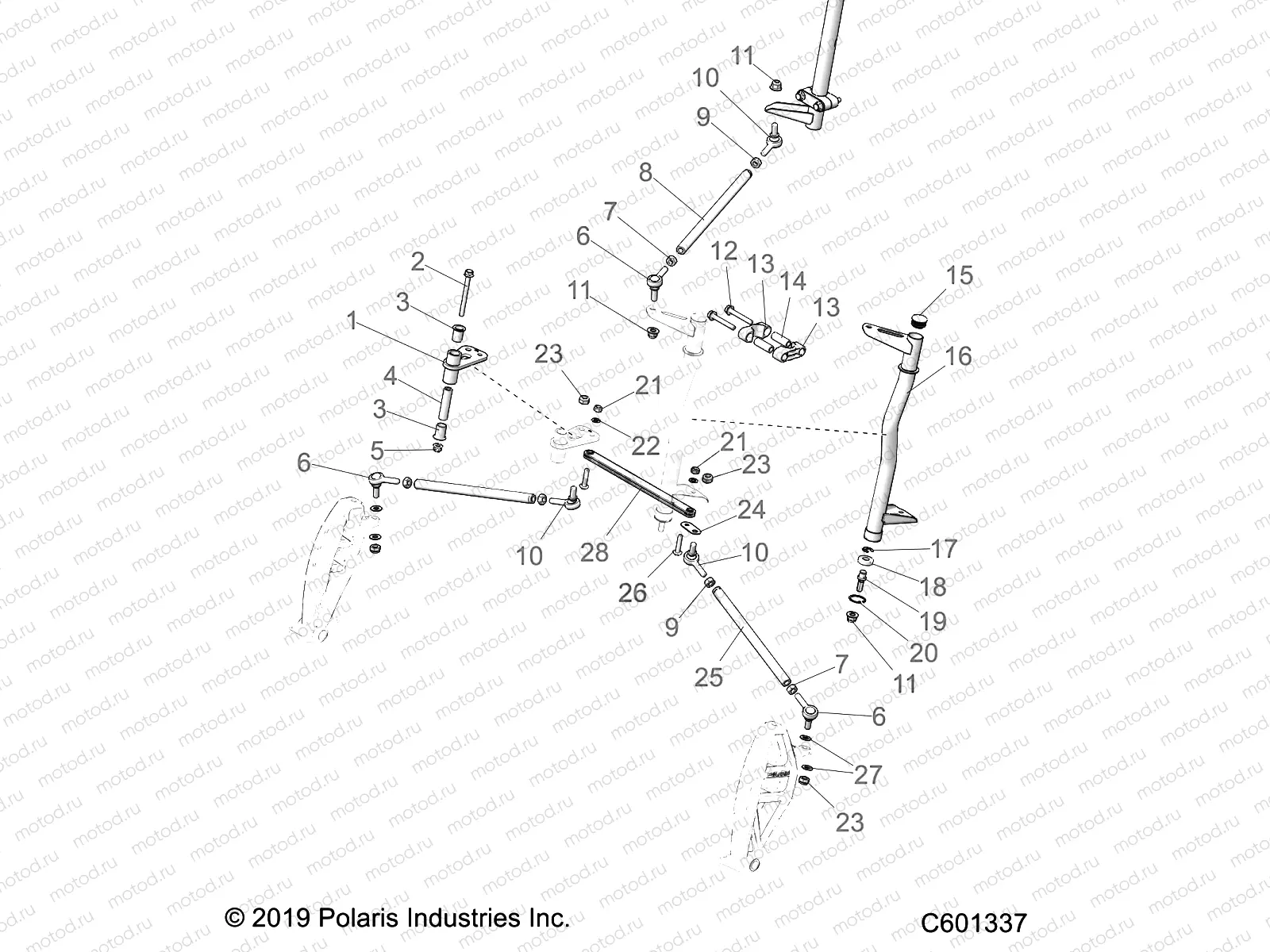

STEERING | STEERING, LOWER - S21EFK6PS/6PE (C601337)

STEERING | STEERING, LOWER - S21EFK6PS/6PE (C601337)
1
1824547
ASM-IDLER
2
7519972
SCR-HXFL-M8X1.25X85 10.9 ZOD
3
5438460
BUSHING-SKI PIVOT
4
5138365
SHAFT-PIVOT IDLER
5
7547332
NUT-M8X1.25 FLG NYLOC-OLIVE D
6
7061166
ROD END-M10X26.5 75DEG RH
7
7547431
NUT-M10X1.5 LH ZOD
8
5338122
ROD-TIE 296.29MM
9
7547430
NUT-M10X1.5 ZOD
10
7061165
ROD END-M10X23 75DEG LH
11
7547423
NUT-M10X1.5 HFN NYLOC ZOD
12
7519242
SCR-HXFL-M8X1.25X55 8.8 ZODP30
13
5451227
BUSHING-STRG POST
14
5137796
SPACER-BUSHING
15
7081210
PLUG-TUBE
16
1824669
ASM-PITMAN ARM
17
7710901
E RING
18
3514320
BEARING-BALL 600ILLU
19
7519163
STUD-SPACER M10X1.5 8.8 ZOD
20
7710642
RING-RET INT 1.125
21
7547405
NUT-M8X1.25C10 HX NYL DIN982 Z
22
7557059
WASHER-FL 8.4X16.0X.91 HRD ZOD
23
7547442
NUT-HH M10X1.5 NYLOC ZOD
24
5261249
STRAP-PITMAN/IDLER
25
5340293
ROD-TIE NRW
26
7519238
SCR-TXTH-M8X1.25X35 8.8 ZOD
27
7555806
WASHER FLAT
28
7061190
ASM-RACK LINK

Узлы для 600 AXYS PRO RMK 155/INTL ALL OPTIONS (R01) - S21EFK6PS/6PE Polaris 2021 SNOWMOBILE
