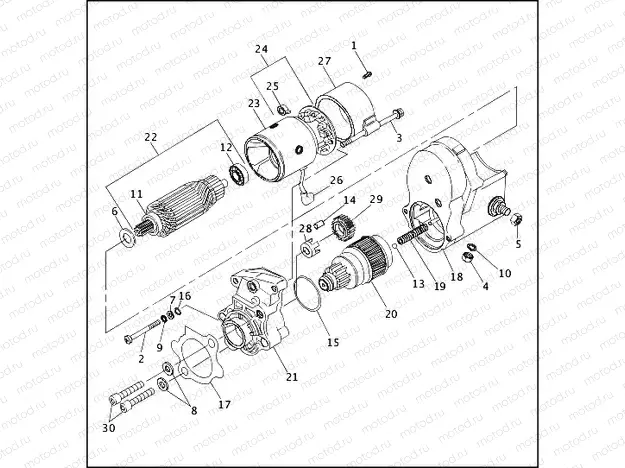

STARTER MOTOR - 883

STARTER MOTOR - 883
Например: SCREW
1
SCREW
2
SCREW
3
BOLT
4
NUT
5
LOCKNUT
6
WASHER, felt
7
6239
WASHER, HARDENED, FXDS
8
6812
Rondelle
9
7036
Rondelle (Lock)
10
7041
Rondelle (Lock)
11
BALL BEARING
12
BALL BEARING
13
8879
BALL
14
ROLLER, bearing
15
O-RING, starter housing
16
11171
0 pc - O-Ring
17
31488-81C
Gasket
18
SWITCH ASSEMBLY, magnetic
19
SPRING, compression
20
CLUTCH ASSEMBLY, starter
21
HOUSING, starter
22
ARMATURE ASSEMBLY
23
YOKE ASSEMBLY, starter
24
BRUSH HOLDER ASSEMBLY
25
SPRING, brush
26
CAP, starter terminal (rubber)
27
FRAME, starter end
28
RETAINER, roller
29
PINION
30
45902-00
SCREW, HEX SOCKET
31
BRUSHES, set (not illustrated)
