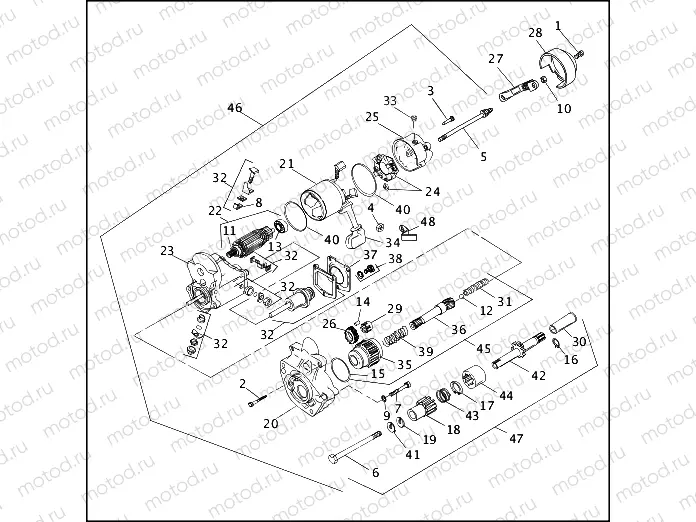

STARTER MOTOR

STARTER MOTOR

Например: 925

1

925

HEX HD BUTTON SCREW

2

BOLT, starter (use 31553-94B)

3

SCREW

4

LOCKNUT, flange

5

BOLT, starter

6

4325

SCREW, HEX CAP

7

4326A

SCREW,HEX SOC HD CAP

8

WASHER (use 31604-91A)

9

7041

Rondelle (Lock)

10

7838

NUT W/LOCKWASHER, FXDS

11

BALL BEARING

12

8879

BALL

13

BALL BEARING

14

CLUTCH ROLLER

15

O-RING (use 31516-94A)

16

11182

RETAINING RING

17

RETAINING RING

18

PINION GEAR

19

WASHER, thrust

20

HOUSING, starter

21

YOKE ASSEMBLY, starter

22

ARMATURE ASSEMBLY, w/ 8871 & 8883

23

SWITCH KIT, magnetic

24

BRUSH HOLDER ASSEMBLY, w/ spring

25

FRAME, starter end

26

IDLER GEAR (use 31553-94B)

27

31527-90

STARTER COVER BRACKET

28

31535-91

STARTER MOTOR COVER

29

RETAINER, idler gear

30

COUPLING

31

SPRING, return (use 31516-94A)

32

31604-91A

KIT REPAIR,STARTER,DYNA/SFTL/F

33

DRAIN VENT (use 31516-94A)

34

BOOT, insulating

35

CLUTCH, starter (use 31516-94A)

36

SHAFT, output (use 31516-94A)

37

COVER, solenoid

38

BOLT, w/ washer

39

SPRING (use 31516-94A)

40

O-RING

41

33126-90

LOCKPLATE

42

SHAFT, extension

43

SPRING, pinion gear

44

COUPLING (use 31487-90A)

45

31516-94A

STARTER CLUTCH KIT, FXD-FXR, S

46

31553-90A

STARTER, PAINTED

47

JACKSHAFT KIT, starter, w/ 6, 16, 17, 18, 19, 30, 41, 42, 43 & 44

48

CLIP, cable
