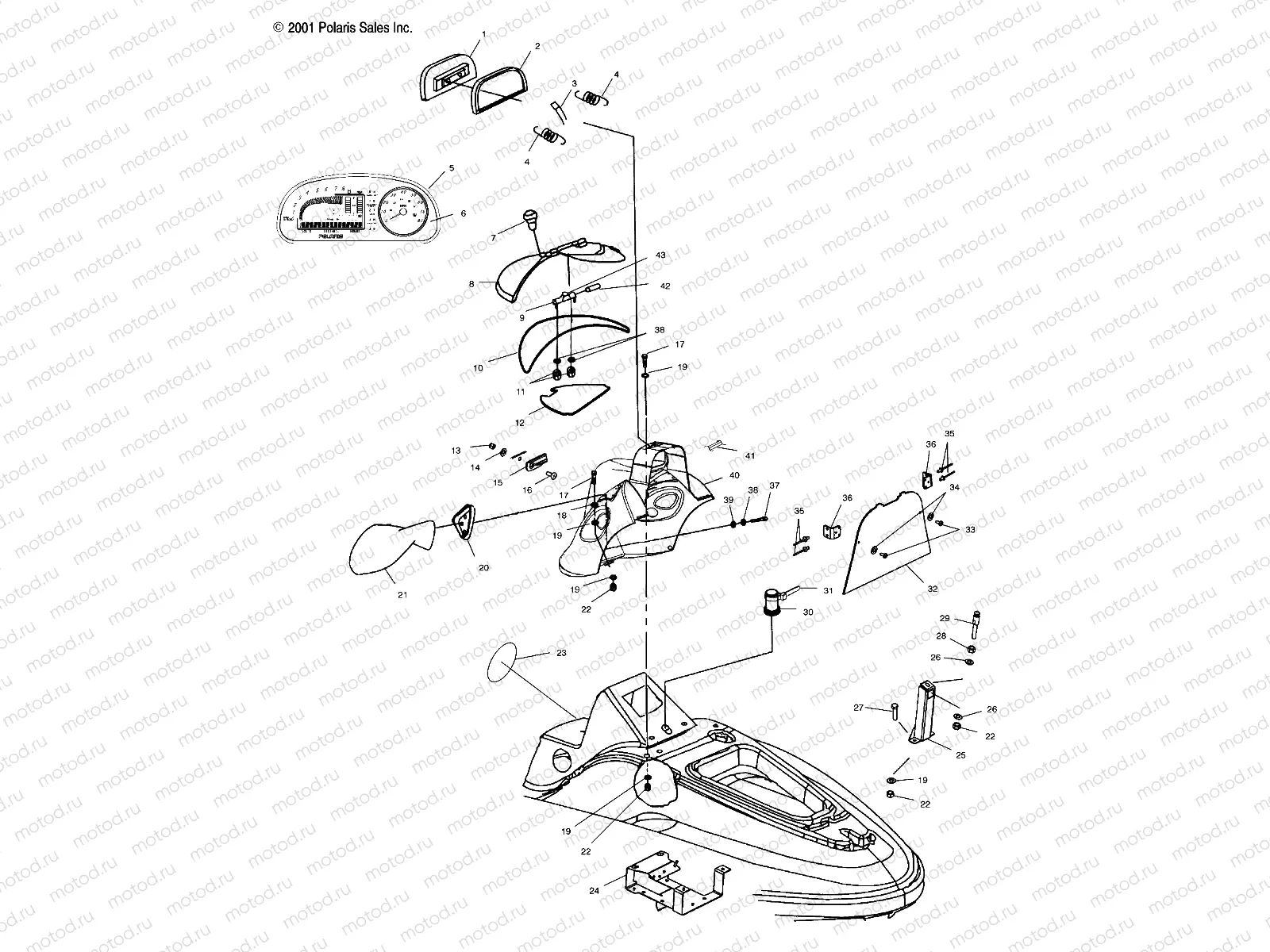

Главная Каталог товаров Polaris EPC 2002 Polaris PWC Polaris 2002 INT'L VIRAGE I (W025101I) Polaris 2002 PWC SHROUD - W025101C/W025101D/W025101I (4971387138A03) | SHROUD - W025101C/W025101D/W025101I (4971387138A03)

SHROUD - W025101C/W025101D/W025101I (4971387138A03) | SHROUD - W025101C/W025101D/W025101I (4971387138A03)

SHROUD - W025101C/W025101D/W025101I (4971387138A03) | SHROUD - W025101C/W025101D/W025101I (4971387138A03)

Например: 3280365

1

3280365

GAUGE-MFI,VIRAGE,RVS RPM LIMIT

2

5411738

GASKET-MFI

3

8450070-190

"""PITOT LINE 90DEG FORMED 190CM"""

4

7041931

SPRING,MOUNTING,MFI

5

2201593

MFI,BUTTON REPLACEMENT,KIT

6

3280342

BEZEL-MFI,OVERLAY

7

2653011

LATCH ASM,CONSOLE

8

5434564-1132

Lid, Console

9

7042007

SPRING-TORTION,CONSOLE,070.SS [Item NotAvailable]

10

5521596

SUBSTITUTED BY 5521630

11

7546705

NUT 6 MM. S.S.

12

5812235

PAD-CONSOLE

13

7546704

NUT NYLOK SS.

15

5245455

HOOK-CONSOLE,LATCH

16

7517669

Vis

17

7517668

Vis

18

7556055

Rondelle (Lock)

19

7555831

WASHER, FLAT, S.S.(10)

20

5411558

GASKET-MIRROR,RH

20

5411557

GASKET-MIRROR,LH

21

2631972-070

MIRROR,LH,BLACK,ASM.

21

2631973-070

MIRROR,RH,BLACK,ASM.

22

7546804

NUT HEX NYLOK

23

5411674

GROMMET-ACCESS,5.0 HOLE

24

5245934

Bracket, EMM

25

1821213

WELD-ASM DOOR LATCH POST

26

7555835

WASHER, FLAT, S.S.,(10)

27

7517539

"""SCREW SS."""

28

7547187

NUT-M8X1.25,SS(10)

29

5132781

PIN-HOOD,LATCH

30

5411664

GROMMET-DECK,WIRE HARNESS

31

7080138

CABLE TIE

32

5812284

COVER-SHROUD,FRNT

33

7511873

SCREW(10)

34

7555837

WASHER, FLAT, S.S.(10)

35

7621220

RIVET-POP

36

5245451

BRKT-SHROUD COVER MFI

37

7516805

SCREW, S.S.(10)

38

7552613

Rondelle (Lock)

39

7556094

Rondelle

40

5434561-1132

SHROUD-STEER W/RVS SOLAR RED

41

5812076

BUMPER,DOOR/SHROUD

42

5333698

PIN-HINGE,CONSOLE

43

5433384

HINGE-CONSOLE,3/16 PIN
