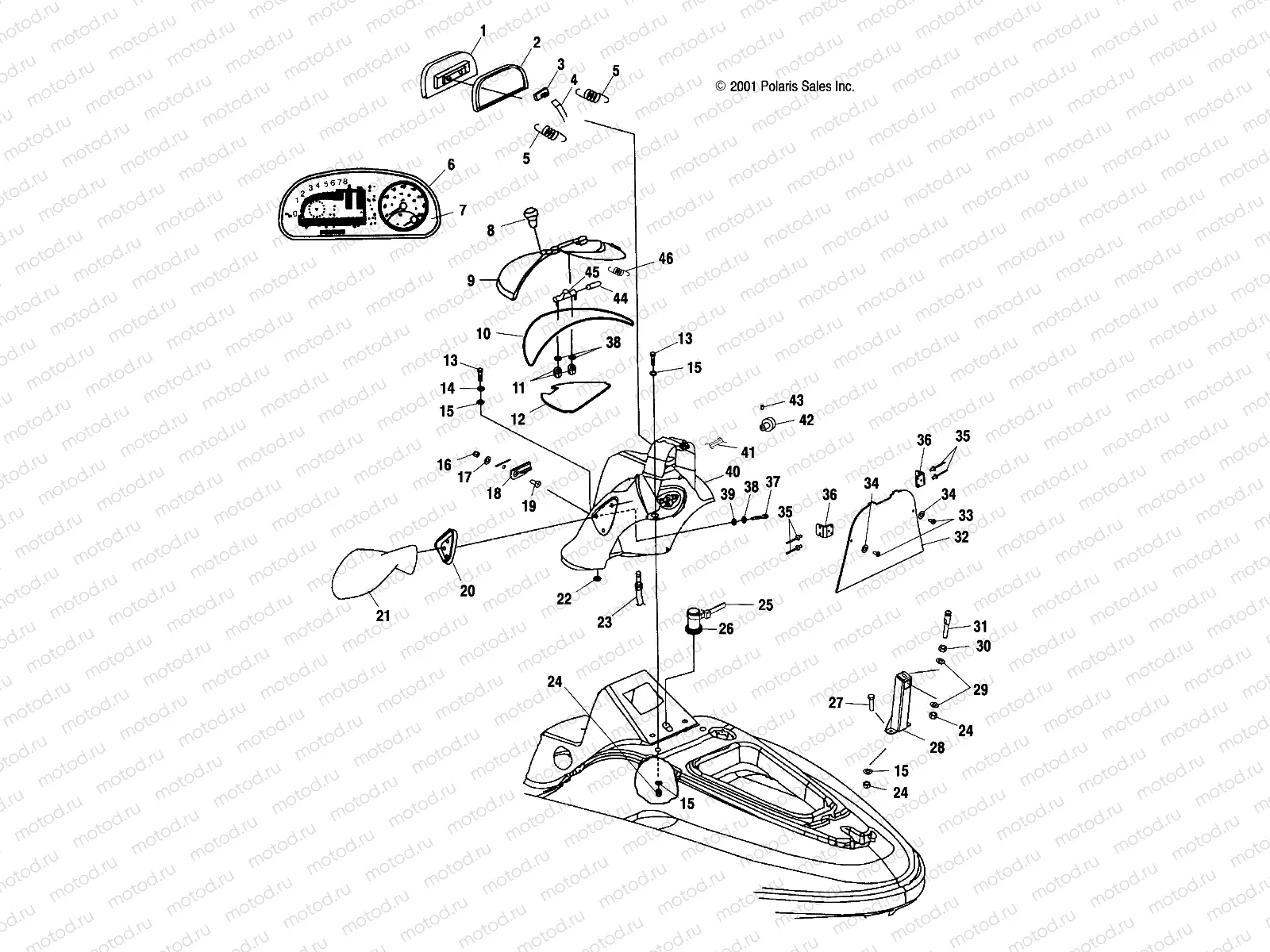

SHROUD - W025099D/W025099I (4971417141A03) | SHROUD - W025099D/W025099I (4971417141A03)

SHROUD - W025099D/W025099I (4971417141A03) | SHROUD - W025099D/W025099I (4971417141A03)

Например: 3280371

1

3280371

GAUGE-MFI,ANALOG,DIGITAL

2

5411738

GASKET-MFI

3

4010281

CONNECTOR-DEUTCHE,4PIN W/PLUGS

4

LR--

CALIPER, BRAKE, RH

5

7041931

SPRING,MOUNTING,MFI

6

2201593

MFI,BUTTON REPLACEMENT,KIT

7

3280342

BEZEL-MFI,OVERLAY

8

2653011

LATCH ASM,CONSOLE

9

5434564-1134

Lid, Console

10

5521596

SUBSTITUTED BY 5521630

11

7546705

NUT 6 MM. S.S.

12

5812235

PAD-CONSOLE

13

7517668

Vis

14

7556055

Rondelle (Lock)

15

7555831

WASHER, FLAT, S.S.(10)

16

7546704

NUT NYLOK SS.

17

7556094

Rondelle

18

5245455

HOOK-CONSOLE,LATCH

19

7517669

Vis

20

5411557

GASKET-MIRROR,LH

20

5411558

GASKET-MIRROR,RH

21

2631972-070

MIRROR,LH,BLACK,ASM.

21

2631973-070

MIRROR,RH,BLACK,ASM.

22

7555834

WASHER, S.S.(10)

23

7081055

Cable, Choke

24

7546804

NUT HEX NYLOK

25

7080138

CABLE TIE

26

5411664

GROMMET-DECK,WIRE HARNESS

27

7517539

"""SCREW SS."""

28

1821213

WELD-ASM DOOR LATCH POST

29

7555835

WASHER, FLAT, S.S.,(10)

30

7547187

NUT-M8X1.25,SS(10)

31

5132781

PIN-HOOD,LATCH

32

5812284

COVER-SHROUD,FRNT

33

7511873

SCREW(10)

34

7555837

WASHER, FLAT, S.S.(10)

35

7621220

RIVET-POP

36

5245451

BRKT-SHROUD COVER MFI

37

7516805

SCREW, S.S.(10)

38

7552613

Rondelle (Lock)

39

7555839

WASHER, FLAT, S.S.(10)

40

5434558-1134

SHROUD-STEER CHOKE M BLUE MET

41

5812076

BUMPER,DOOR/SHROUD

42

7081037

Knob

43

2080005

Vis

44

5333698

PIN-HINGE,CONSOLE

45

5433384

HINGE-CONSOLE,3/16 PIN

46

7042007

SPRING-TORTION,CONSOLE,070.SS [Item NotAvailable]
